Name: Portable Ultrasonic Weather Station with IP65 Waterproof Rating, 7-inch Resistive Touchscreen, and 50 Hours Operating Time
Brand: Xi'an Kacise Optronics Co.,Ltd.
SKU: KQL-QXY
Price: 5,000.00 USD
Availability: InStock

Home > Products > Environmental Monitoring >

Portable Ultrasonic Weather Station with IP65 Waterproof Rating, 7-inch Resistive Touchscreen, and 50 Hours Operating Time

Place of Origin:

CHINA

Brand Name:

KunQuan

Certification:

Model Number:

KQL-QXY

Request A Quote

Product Details

Power Supply:

Built-in 12.6V Li-battery 10Ah + Solar 18V/30W + 24V DC

Protection Rating:

IP65 Fully Waterproof

Display:

7-inch Resistive Touchscreen

Operating Time:

50 Hours (screen Off Mode)

Communication:

4G (Cat-1) + RS485 (Modbus/MQTT)

Weight:

Main Unit 3.9 Kg, Stand 2.0 Kg

Payment & Shipping Terms

Minimum Order Quantity

1PCS

Packaging Details

each unit has individual box and all boxes are packed in standard packages or customers requests available

Delivery Time

5-8 work days

Payment Terms

L/C,D/A,D/P,T/T,Western Union,MoneyGram

Supply Ability

1000 Piece/Pieces per Week negotiable

KQS-ZSYT Fully Automatic Direct-Diffuse Integrated Radiation Monitoring Instrument with High Accuracy Dual Tracking Global Applicability and Multiple Communication Options

Get Best Price

KQZ-GF Photovoltaic Weather Station with Meteorological-Grade Sensors, Fully Waterproof Design, and Customizable Mounting Pole

Get Best Price

KQZ-BX Portable Weather Station with Fully Waterproof Design, Built-in Battery, and Foldable/Telescopic Structure

Get Best Price

KQS-GTM Tubular Multi-layer Soil Moisture Monitoring Instrument with FDR Technology for Multi-layer Monitoring (10/20/30/40 cm) and Solar Power

Get Best Price

Contact Now

Product Description

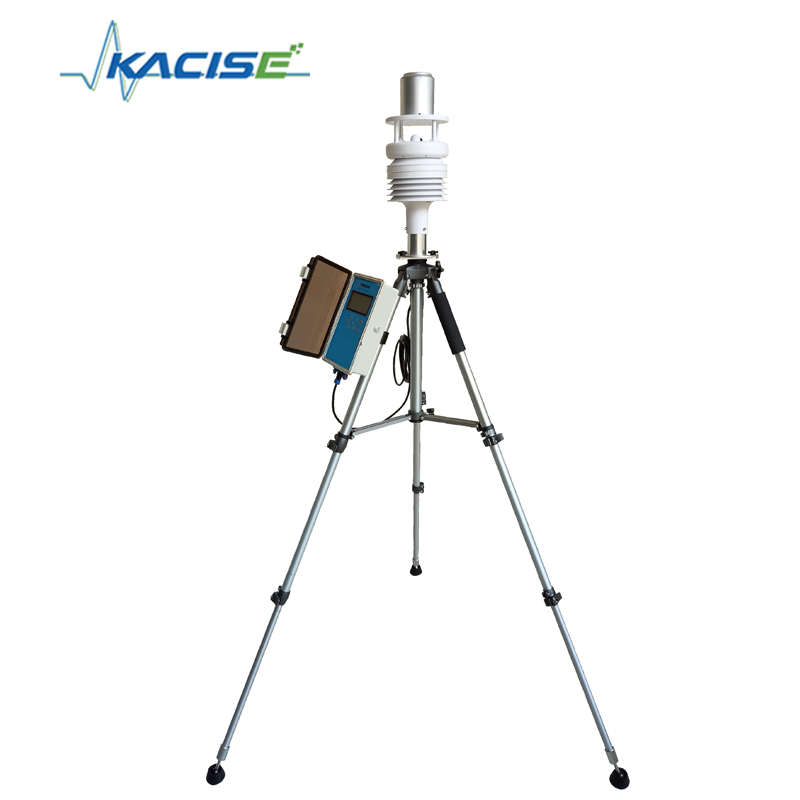

KQL-QXY Portable Ultrasonic Weather Station (Touchscreen Version)

Product Overview

The portable ultrasonic weather station (touchscreen version) is a lightweight, integrated meteorological system that combines an internal power supply (lithium battery pack), data acquisition, touchscreen display, data storage, data analysis, and data uploading (via 4G communication). It is designed for convenient environmental and meteorological measurements during field operations.

The device measures basic meteorological parameters including wind speed, wind direction, air temperature, air humidity, and atmospheric pressure. Measurement parameters are customizable and can be expanded according to customer requirements.

The system supports both solar panel and 24V DC power supply, which can not only power the device but also charge the built-in lithium battery pack.

This product is widely used in agricultural irrigation, environmental monitoring, field scientific research, transportation, and other applications.

Technical Specifications

Function Item	Technical Parameters	Remarks
Power supply	① Built-in 12.6V lithium battery pack, 10Ah capacity; ② External 18V/30W flexible foldable solar panel; ③ External 24V DC power supply	Solar panel and 24V DC input can both power the device and charge the internal battery
Power consumption	Test conditions: ① Standard five parameters (wind speed, wind direction, temperature, humidity, pressure); ② 4G communication enabled but no data transmission	Screen on: 4W / 12.6V; Screen off: 2.4W / 12.6V
Charging time	< 10 hours, max charging current 1A
Operating time	50 hours (screen off mode)
Display	7-inch resistive touchscreen
Data storage	Built-in storage up to 512MB, supports up to 1,000,000 data records	Logging interval adjustable, minimum 1 minute
Data upload	Minimum upload interval: 1 minute
Data access	① Cloud web platform ② Mobile app ③ Touchscreen display
Communication methods	Wireless: 4G (Cat-1); Wired: RS485
Communication protocols	Modbus, MQTT, proprietary protocol	Can be customized
Operating environment	Temperature: -20°C to 70°C; Humidity: 0-100% RH	Optional ultra-low-temperature touchscreen: -40°C to 70°C
Protection rating	IP65 (fully waterproof)
Mounting stand	Height: 0.9 m (collapsed) to 1.9 m (extended); Material: aluminum alloy + ABS plastic; Surface treatment: anodized + passivated
Product weight	Main unit: 3.9 kg; Stand: 2.0 kg; Packaging box: 7.6 kg
Package dimensions	710 mm × 420 mm × 240 mm

Environmental Measurement Parameters

Environmental Parameter	Range	Accuracy	Resolution
Ultrasonic wind speed	0-70 m/s	Starting wind speed ≤ 0.8 m/s; ±(0.5 + 0.02 rdg) m/s	0.01 m/s
Ultrasonic wind direction	0-360°	±3°	1°
Atmospheric temperature	-40 to 80°C	±0.3°C	0.1°C
Atmospheric humidity	0-100% RH	±5% RH	0.1% RH
Atmospheric pressure	300-1100 hPa	±1 hPa (at 25°C)	0.1 hPa
Rainfall intensity	0-4 mm/min	±4% (laboratory static test, rainfall intensity 2 mm/min), with daily rainfall accumulation	0.03 mm
Illuminance	0-200,000 Lux (outdoor)	±4%	1 Lux
Solar total radiation	0-2000 W/m²	±3% (with daily radiation accumulation)	1 W/m²
CO₂	0-5000 ppm	±(50 ppm + 5% rdg)	1 ppm
PM2.5 / PM10	0-1000 μg/m³	≤100 μg/m³: ±10 μg/m³; >100 μg/m³: ±10% rdg (calibrated with TSI 8530 under 25±2°C, 50±10% RH)	1 μg/m³
CO	0-1000 ppm	≤±3% rdg (25°C)	0.1 ppm
NO₂	0-20 ppm	≤±3% rdg (25°C)	0.01 ppm
SO₂	0-20 ppm	≤±3% rdg (25°C)	0.01 ppm
O₃	0-10 ppm	≤±3% rdg (25°C)	0.01 ppm
Electronic compass	0-360°	±5°	1°
GPS	Longitude (-180-180°), Latitude (-90-90°), Altitude (-500-9000 m)	≤10 m (longitude/latitude), ≤3 m (altitude)	0.1 s (lat/long), 1 m (altitude)
