| Place of Origin: | China (Mainland) |
| Brand Name: | Kacise |
| Certification: | certificate of explosion-proof, CE |
| Model Number: | KS3ARG03D |
| Minimum Order Quantity: | 1pcs |
|---|---|
| Packaging Details: | each unit has individual box and all boxes are packed in standard packages or customers requests available |
| Delivery Time: | 5-8 working days |
| Payment Terms: | T/T, Western Union, MoneyGram |
| Supply Ability: | 1000 Pieces per Week |
| Data Updating Rate(can Set): | 2000(Hz@460800) | Zero-bias: | ≤±0.05(In 500°/s)(deg/s) |
|---|---|---|---|
| Electrical Interface: | RS422 | Weight: | ≤50(g) |
| Mean Time Between Failures: | 10(Kh MTBF) | Size: | 45×39×20(mm) |
| Storage Temperature: | -55~+85(°C) | Range: | ±500(triaxial)(deg/s) |

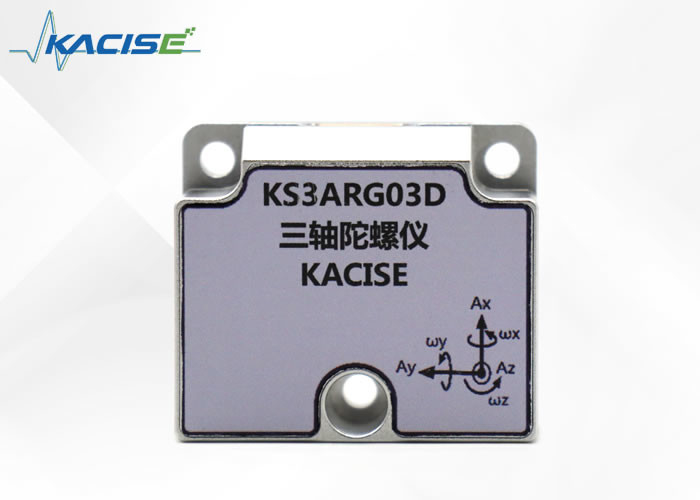

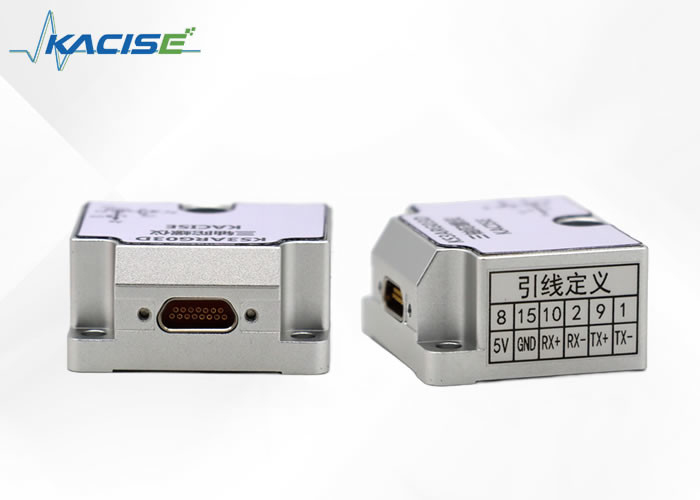

The KS3ARG03D series solid state angular rate sensor , commonly referred to as a gyro, is designed for precise measurement of angular rates. It incorporates advanced microelectromechanical system (MEMS) technology, which is crafted using a sophisticated bipolar metal oxide semiconductor (BIMOS) technology production process . One of the key manufacturing features of this sensor is its unique spherical grid arrangement for the welding of current carriers, enhancing both its reliability and structural integrity.
In addition to its resilient construction, the KS3ARG03D series is equipped with a Self-Test feature . This functional self-assessment capability ensures that the sensor can perform an in-machine detection, known as a Built-In Test (BIT), confirming its operational status and ensuring dependable performance.
The operational dynamics of the KS3ARG03D series are governed by the concept of a resonator gyro . At the heart of the sensor, two polysilicon sensitive structures are found. Each one houses a high-frequency vibrating frame that is set into motion electrostatically. As these frames resonate, they form crucial elements needed to measure speed. Capacitance-sensitive structures located at the extreme ends of each frame detect the Coriolis force that arises due to the angular movement. This force is subsequently transformed into an electrical signal. The signal is amplified and modulated to produce an output that is in direct proportion to the angular rate being measured.
● zero bias calibration
● temperature drift compensation
● wide measurement range
● wide bandwidth
● non-linear correction
● wide operating temperature range
● small size, light weight
● high impact acceleration resistance
Dimensions
| Parameter | KS3ARG03D |
| Power supply parameter | |
| power | DC5(V) |
| power dissipation | ≤1.1(W @5V DC) |
| Product performance | |
| range | ±500(triaxial)(deg/s) |
| Zero-bias | ≤±0.05(In 500°/s)(deg/s) |
| Zero-bias stability | ≤0.2(deg/h) |
| Zero-bias repeatability | ≤1(deg/s) |
| nonlinearity | ≤0.02(%FR) |
| Mean time between failures | 10(Kh MTBF) |
| electrical interface | RS422 |
| data updating rate(can set) | 2000(Hz@460800) |
| Size | 45×39×20(mm) |
| Weight | ≤50(g) |
| Environment | |
| Operating temperature | -40~+80℃ |
| Storage temperature | -55~+85℃ |
| Vibration | 6.06(g @ 20~2000 Hz) |
| Shock | 5000(g , 0.1 ms, 1/2 Sine) |
The era of intelligent automobiles is upon us, bringing with it a fusion of advanced technology and new-age sophistication. With state-of-the-art sensors, machine learning algorithms, and seamless connectivity, intelligent vehicles promise enhanced safety, efficiency, and convenience on the roads. These smart cars not only navigate traffic with ease but also adapt to various driving conditions to provide a superior driving experience.
Geological exploration represents a critical avenue in the quest to understand our planet's composition and the wealth of resources hidden beneath the surface. Utilizing cutting-edge tools and techniques, scientists and engineers are penetrating the depths of the earth, seeking to uncover valuable minerals, energy reserves, and geological formations that pave the way for sustainable resource utilization and environmental stewardship.
The field of robotics is transforming the landscape of manufacturing, healthcare, and day-to-day living. Robots, equipped with precision and cognitive capabilities, are undertaking tasks beyond human limitations. These intelligent machines streamline processes, augment human efforts, and execute complex tasks with unparalleled accuracy, heralding a future where automation becomes interwoven with the fabric of our society.
Missile guidance and control systems are fundamental components of modern defense mechanisms. They are engineered with high precision technology to direct and maneuver missiles with incredible accuracy. Advanced algorithms and navigation systems enable missiles to track and engage targets with minimal margin for error, playing a pivotal role in national security and warfare strategies.
Aircraft stability control is an essential aspect of aviation safety, ensuring that aircraft remain stable and controllable during all phases of flight. By integrating advanced control systems, such as gyroscopes and accelerometers, pilots can maintain optimal aircraft performance and passenger comfort even in challenging weather conditions or turbulent environments.
Strapdown inertial navigation systems (SINS) provide a reliable and accurate means of determining the position, velocity, and orientation of a vehicle or object. By affixing motion sensors and rotation sensors directly to the object, these systems offer a lightweight and compact navigation solution that eliminates the need for mechanical gimbals, enhancing the efficiency of various modes of transportation and high-precision applications.
Stability is paramount when it comes to antennas and cameras, especially in applications requiring high precision and clarity. Innovative stabilization techniques ensure that antennas maintain optimal signal quality and that cameras capture crisp images regardless of motion or environmental factors. These techniques are crucial in telecommunications, broadcasting, surveillance, and image-capturing technologies.
Welcome to our Technical Support and Services for the Gyroscope Sensor. Our dedicated team is here to assist you with any technical issues or inquiries you may have regarding the use, installation, or maintenance of your gyroscope sensor. We are committed to providing you with the best possible support to ensure your product functions optimally.
Our support includes detailed product documentation, frequently asked questions (FAQs), and troubleshooting guides designed to help you resolve common issues quickly. For more complex or specific concerns, our technical support team is ready to provide personalized assistance.
If you require further assistance, please refer to the 'Contact Us' section of our website (contact information excluded as per request) where you can find additional resources and support channels to get in touch with our professional technical support team.
Thank you for choosing our Electronic Gyroscope Sensor. We look forward to serving you and ensuring the success of your projects
Product Packaging for Electronic Gyroscope Sensor:
The Gyroscope Sensor is securely encased in a custom-fitted, anti-static foam insert to ensure total protection from electrostatic discharge (ESD). The sensor is then placed into a sturdy, protective cardboard box specifically designed for electronics. The box is sealed with tamper-evident security tape to guarantee product integrity upon delivery.
Shipping Information for Electronic Gyroscope Sensor:
Your Gyroscope Sensor will be shipped using a reliable courier service to ensure timely and safe delivery. The shipping box will be labeled with "Fragile - Handle with Care" to alert carriers of the sensitive nature of the contents. A tracking number will be provided so that you can monitor the shipment's progress until it reaches your destination. Please inspect the package upon arrival for any signs of damage during transit and report any issues immediately for prompt resolution.
