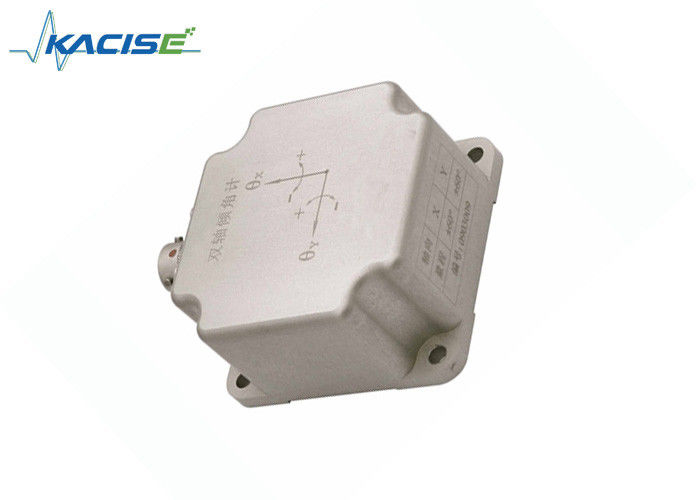

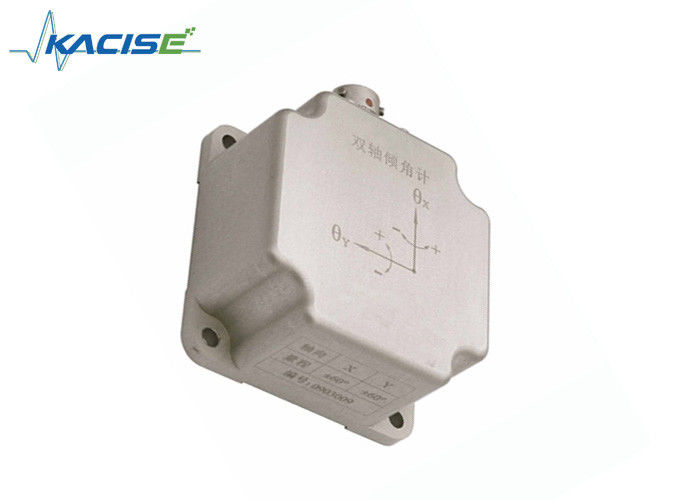

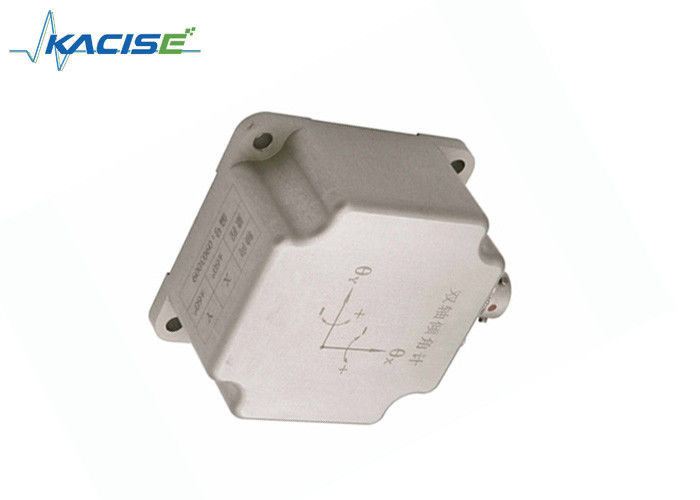

High Accuracy Inclinometer Sensor With Explosion Protection Shell 300D / 500D

High Accuracy Inclinometer Sensor With Explosion Protection Shell 300D / 500D

  • High Accuracy Inclinometer Sensor With Explosion Protection Shell 300D / 500D
  • High Accuracy Inclinometer Sensor With Explosion Protection Shell 300D / 500D
  • High Accuracy Inclinometer Sensor With Explosion Protection Shell 300D / 500D
  • High Accuracy Inclinometer Sensor With Explosion Protection Shell 300D / 500D
High Accuracy Inclinometer Sensor With Explosion Protection Shell 300D / 500D
Product Details:
Place of Origin: Shaanxi, China (Mainland)
Brand Name: KACISE
Model Number: K-2QJJ300/300D/500/500D
Payment & Shipping Terms:
Minimum Order Quantity: 1 Piece/Pieces
Price: Negotiable
Packaging Details: carton or customers requests available
Delivery Time: 5 working days after payment
Payment Terms: L/C, D/A, D/P, Western Union, MoneyGram
Supply Ability: 1000 Piece/Pieces per Week negotiable
Contact Now
Detailed Product Description
Input Voltage: 10~30VDC Start-up Time: <0.5s
Baud Rate: 19200 Bps Data Updating: 25HZ
Bias: ≤0.2° Bandwidth: 5Hz
High Light:

electronic tilt sensor

,

tilt measurement sensor

High Accuracy Inclinometer Sensor With explosion protection shell (300D/500D)


Features


☆ high accuracy

☆ temperature compensation

☆ With explosion protection shell (300D/500D)



Application



☆engineering machinery horizontal measurement

☆Precision Angle measurement



  Specification



Type K-2QJJ300/300D K-2QJJ500/500D
Electric character
Input voltage 10~30VDC
Input current <40mA <70mA
Output mode RS485 4~20mA
Baud Rate 19200 bps -
Data updating 25 Hz -
Performance index
Range ±20°,±40°,±60°,±75°selectable
Nonlinear (%F.S.) 0.1%F.S.
Resolution (°/s) 0.01°
Bias ≤0.2°
Bandwidth 5Hz
Start-up time <0.5s
Environmental characteristics
Compensated Temperatures -40℃~70℃
compensation temperature -40℃~+70℃
Temperature (°C) -40℃~+70℃
Storage Temperature -40℃~+125℃
Physical Characteristics
Weight (g) 250g
Dimensions 60×60×30mm















































Note: Range can choose ±20°,±40°,±60°,±75°



Dimension



High Accuracy Inclinometer Sensor With Explosion Protection Shell 300D / 500D 0





workshop



High Accuracy Inclinometer Sensor With Explosion Protection Shell 300D / 500D 1

High Accuracy Inclinometer Sensor With Explosion Protection Shell 300D / 500D 2


High Accuracy Inclinometer Sensor With Explosion Protection Shell 300D / 500D 3
