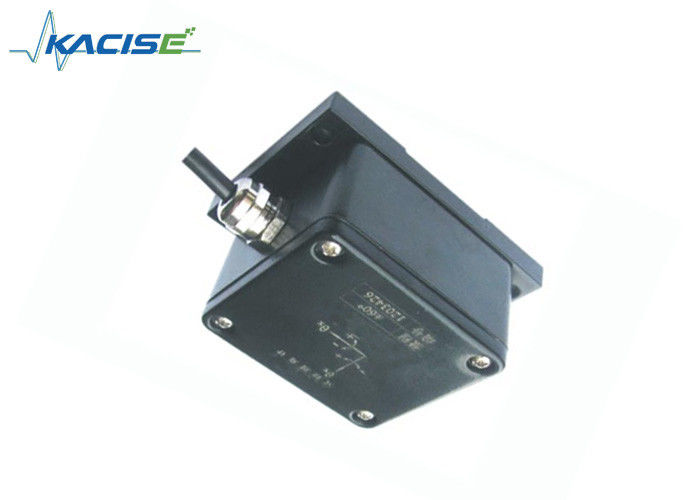

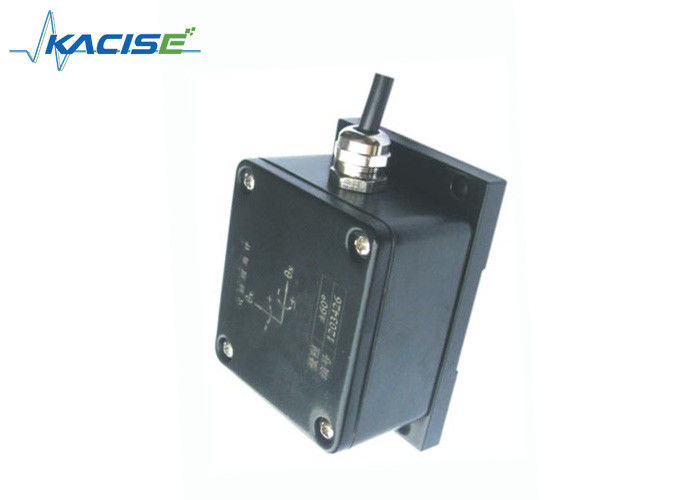

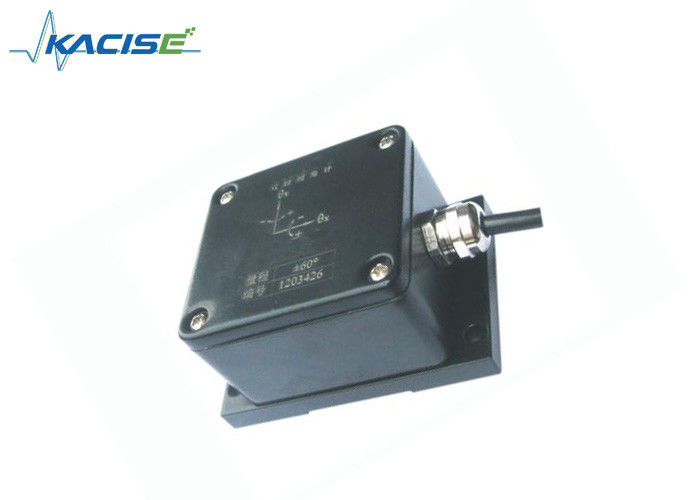

Low Power Consumption Inclinometer Sensor For Power Line Monitoring

Low Power Consumption Inclinometer Sensor For Power Line Monitoring

  • Low Power Consumption Inclinometer Sensor For Power Line Monitoring
  • Low Power Consumption Inclinometer Sensor For Power Line Monitoring
  • Low Power Consumption Inclinometer Sensor For Power Line Monitoring
  • Low Power Consumption Inclinometer Sensor For Power Line Monitoring
Low Power Consumption Inclinometer Sensor For Power Line Monitoring
Product Details:
Place of Origin: Shaanxi, China (Mainland)
Brand Name: KACISE
Model Number: K-2QJJ700A
Payment & Shipping Terms:
Minimum Order Quantity: 1 Piece/Pieces
Price: Negotiable
Packaging Details: carton or customers requests available
Delivery Time: 5 working days after payment
Payment Terms: L/C, D/A, D/P, Western Union, MoneyGram
Supply Ability: 1000 Piece/Pieces per Week negotiable
Contact Now
Detailed Product Description
Input Voltage: 8~26VDC Input Current: <5mA
Output Mode: RS485 Data Updating: 25HZ
Bias: 0.1° Baud Rate: 9600bps
High Light:

electronic tilt sensor

,

tilt measurement sensor

Low Power Consumption Emc Certificate Inclinometer Sensor For Power Line Monitoring


Features


☆ low power consumption

☆ Precision measurement certificate

☆ Emc certificate



Application



☆Power line monitoring

☆Tower tilting monitoring



  Specification



Type K-2QJJ700A
Electric character
Input voltage 8~26VDC
Input current <5mA
Output mode RS485
Baud Rate 9600bps
Data updating 25 Hz
Performance index
Range ±10°(±60)
Nonlinear (%FS) ≤±0.05°(±0.1)
Resolution (°/s) 0.04°
Bias 0.1°
Bandwidth 5Hz
Start-up time (ms) <1s
Environmental characteristics
Compensated Temperatures -40℃~85℃
compensation temperature -40℃~+85℃
Temperature (°C) -40℃~+125℃
Electrostatic discharge immunity GB/T 17626.2—1998 Grade 4
RF Electromagnetic Field Immunity GB/T 17626.3—1998 Grade 3
Pulse Magnetic Field Immunity GB/T 17626.9—1998 Grade 5
Power Frequency Magnetic Field Immunity GB/T 17626.8—1998 Grade 5
Physical Characteristics
Weight (g) <500g
Dimensions 82×58×43mm























































Dimension



Low Power Consumption Inclinometer Sensor For Power Line Monitoring 0Low Power Consumption Inclinometer Sensor For Power Line Monitoring 1





workshop



Low Power Consumption Inclinometer Sensor For Power Line Monitoring 2

Low Power Consumption Inclinometer Sensor For Power Line Monitoring 3


Low Power Consumption Inclinometer Sensor For Power Line Monitoring 4


Company strength



1.Through the ISO9001: 2008 quality system certification, access to a number of patent certificates and software copyrights

2.And Xiamen University, Chinese Academy of Sciences Institute of Acoustics, 715, Ha Engineering underwater acoustic college and many other colleges and universities,Scientific research unit cooperation

3.Products in the Northwest Industrial Group, Hainan Airlines Co., Ltd., are widely used

4.China's largest sensor, flowmeter production base



Our Advantage

1.100% real photos--Detailed images, detailed description7
2.*24 hours online--Efficient service, Professional answers
3. The sale of products within one year warranty and life time maintenance.
4.After the receipt of the goods if the quality problems can be returned(Not artificial damage, Never used)
5.OEM is available; small quantities, mixed bulk orders are also welcome;
6. Delivery way: UPS, DHL, TNT, FEDEX, EMS, CHINA POST.
When the company set up, we began to focus on the coordination of military supplies production, achieved GB/T19001-2008/ISQ9001:2008, GJB 9001B-2009 certification. When our company is running mature and stable, in 2008, we began to develop our business. Based on the production of military products quality control, we developed a lot of sensor products, such as a pressure sensor / transducer / sensor, level transmitter / ultrasonic level meter / ultrasonic flow meter, inertial navigation products, IMU, gyroscope, accelerometer etc.
