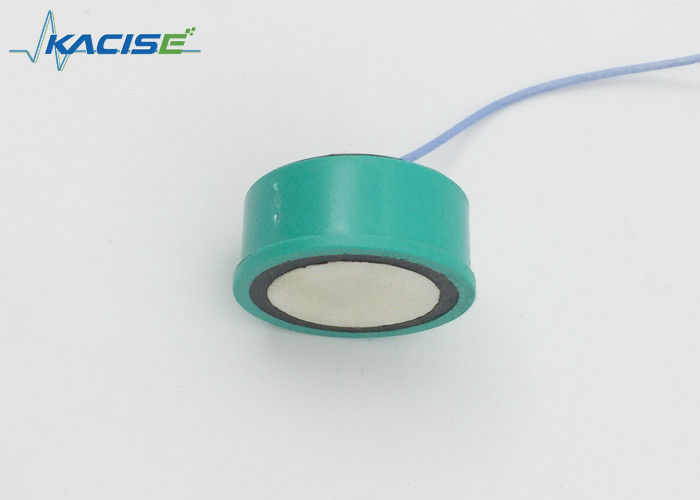

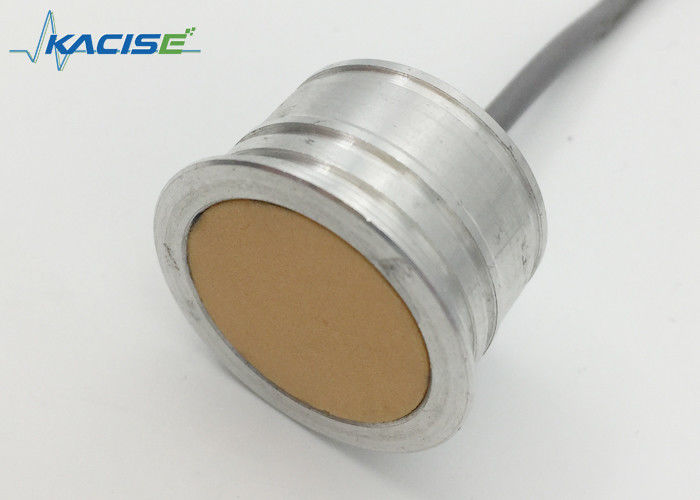

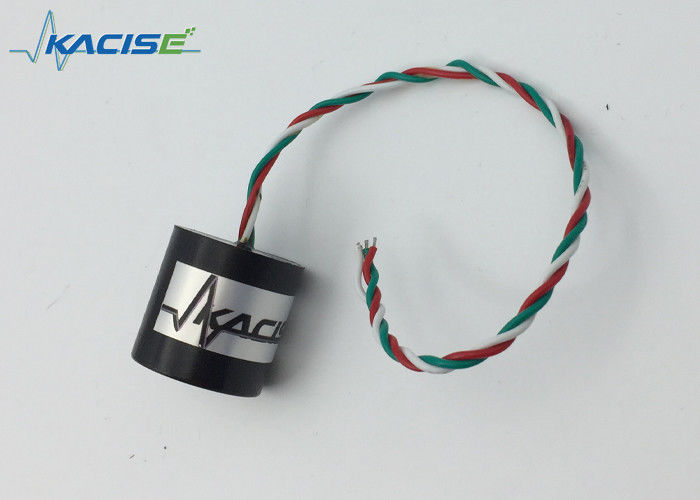

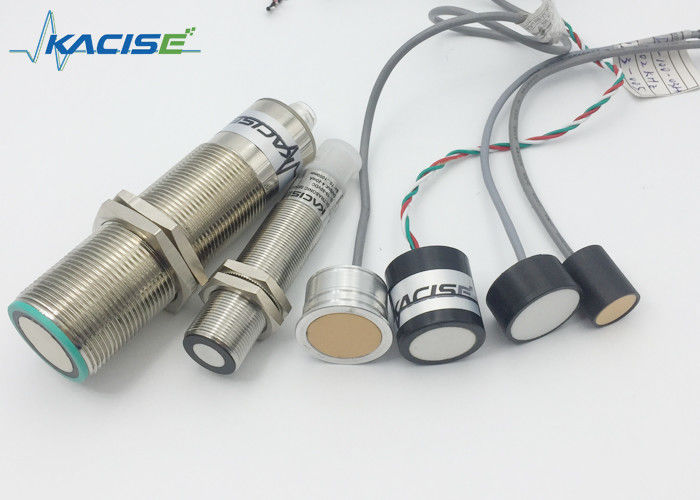

Digital / Analog GPS Ultrasonic Level Transducer High Accuracy For Industry

Digital / Analog GPS Ultrasonic Level Transducer High Accuracy For Industry

waterproof ultrasonic sensor

industrial ultrasonic sensor

Place of Origin:

China (Mainland)

Brand Name:

KACISE

Model Number:

KUM

Contact Us
Request A Quote
Product Details
Application:
Gas Meter, Gas Flow Meter, Wind Speed Indicator, Etc
Measuring Range:
0.1~50m
Working Mode:
Continuous, Intermittent
Frequency:
16, 21, 33, 34, 40, 49, 64, 80, 105, 200, 300KHz
CT:
Piezoelectric Ultrasonic Transducer
Dimensions:
10, 14 Mm, Optional, Customizable
Material:
POM, PC, PTFE, PVDF, Etc
Product Name:
Piezoelectric Ultrasonic Transducer
Highlight:

waterproof ultrasonic sensor

,

industrial ultrasonic sensor

Payment & Shipping Terms
Minimum Order Quantity
Piece/Piece
Price
US $45-189 / Pieces
Packaging Details
each unit has individual box and all boxes are packed in standard packages or customers requests available. piezoelectric ultrasonic transducer
Delivery Time
5 working days
Payment Terms
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability
10000 Piece/Pieces per Week
Product Description

Description of in air digital and analog piezoelectric ultrasonic transducer

The ultrasonic transducer is a device that converts the signal of a different kind of energy into a device that requires an ultrasonic or signal or energy. Or, conversely, the ultrasonic signal or energy converted into another form of signal or energy device, widely used in industry, agriculture, transportation, life, medical and military affairs.

The ultrasonic transducer of our company is mainly divided into gas and liquid ultrasonic transducer with a wide range of measurements, applying to weak acid and base, strong acid and strong base, explosion and other environment.

0.5m range ultrasonic transducer

Parameter GX-A300-005 Unit
Frequency 300±20 KHz
Range 0.1~0.5 m
Min impedance 1500±20% Ω
Capacitance (±20% @1KHz) 350 PF
Sensitivity Driving voltage 750 Vpp
Distance 0.3 m
Echo amplitude 5 mV
Peak voltage <1000 VPP
Working temperature -40~80 °C
Pressure ≤3 | 0.3 Kg|MPa
Angle Half-power angle @-3dB 7°±2 °
Sharpness angle 16°±4 °
Material POM
Application Sensor, Range finder, Flow meter
Protection Grade IP68
Dimensions 10 mm
Weight 5±5%(20cm) g
Connection description

Integrated interface:

Red -> "+", Yellow -> "-", Black -> shielded wire.

Default without temperature sensor.



8m range ultrasonic transducer



Parameter GX-A49-080S Unit
Frequency 49±1.5 KHz
Range 0.4~8 m
Min impedance 200±20% Ω
Capacitance 4100 PF
Driving voltage 750 Vpp
Distance 0.6 m
Echo amplitude 380 mV
Peak voltage <1500 VPP
Working temp. -40~80 °C
Pressure ≤3 | 0.3 Kg|MPa
Half-power angle @-3dB 5°±2 °
Sharpness angle 13°±4 °
Material PTFE
Application Monitoring, Collision avoidance, Security
Protection Grade IP68
Dimensions Lifting:M38×1.5, Bottom mounted:M78×2 mm
Weight 1170±5%(10m) g
Connection description Split:
4-line: Red -> " +", Yellow -> "-",
Blue or Black -> Temperature sensor wire(MF58).
3-line: Red -> transducer "+", Blue-> Temp. sensor "+",
Black-> shared "-"

50m range ultrasonic transducer

Parameter GX-A16-500S Unit
Frequency 16±1.5 KHz
Range 1.8~50 m
Min impedance 790±20% Ω
Capacitance 12700 PF
Driving voltage 520 Vpp
Distance 0.6 m
Echo amplitude 1200 mV
Peak voltage <1500 VPP
Working temp. -40~80 °C
Pressure ≤3 | 0.3 Kg|MPa
Half-power angle @-3dB 12°±2 °
Sharpness angle 28°±4 °
Material POM
Application Liquid level gauge
Protection Grade IP68
Dimensions Lifting:M32×1.5, Bottom mounted:M108×2 mm
Weight 2400±5%(10m) g
Connection description

Split: KUT-A16-500SS

4-line: Red -> "+", Yellow -> "-",

Blue or Black -> Temperature sensor wire(MF58).

3-line: Red -> transducer "+", Blue-> Temp. sensor "+",

Black-> shared "-".

Integrated: KUT-A16-500SI

3PIN,2.54mm Terminal:

Red-> "+", White-> "-", Black-> shielded wire.

3PIN,2.0mm Terminal:

Red or Black -> Temperature sensor wire(MF58)



Horizontal cylindrical air non-directional

Parameter GX-A33-150 Unit
Frequency 33 KHz
Range 0.1~15 m
Min impedance 600±20% Ω
Capacitance 3700 PF
Radiation range 10 M
Peak voltage <600 VPP
Working temp. -40~80 °C
Pressure ≤3 | 0.3 Kg|MPa
Horizontal No direction
Vertical Half-power angle @-3dB 12°±2 °
Sharpness angle 28°±4 °
Material POM
Application Liquid level gauge, Distance measuring
Protection Grade IP68
Dimensions Lifting:M32×1.5, Bottom:M108×2 mm
Weight 2400±5%(10m) g
Connection description

Integrated interface:

Red -> "+", Yellow -> "-", Black -> shielded wire.

Default without temperature sensor.



Production Flow

ultrasonic sensor.jpg







Packaging & Shipping

ultrasonic sensor.jpg

Cases

ultrasonic sensor cases.jpg

Certificates

certificate_v1.2

Company Information

company show

Xi'an Kacise is certified by ISO 9001-2008, GJB 9001B-2009, CE, intrinsic safety explosion-proof and isolated safety explosion-proof, etc. which assure our products are conform to the international standards.

We have been specializing in manufacturing pressure, level and flow measuring instruments and related products for 10 years. We have experienced technical and management personnel, through the efforts of our entire staff, we have become a professional measuring instrument manufacturer and solution provider. And we are continuously trying to improve product quality.



Currently, Kacise sensor is already exported to America, Spain, Australia, Chile and 20 other countries and regions, and received many favorable feedbacks. Our overseas distributers are also increasing. We regards “reasonable prices, efficient production time and good after-sales service” as our tenet, and hope to cooperate with more customers for mutual development.

FAQ

1. Q: What information need to be provided to choose the suitable model?

    A: Please provide us: application field, range , output signal, medium, power supply, so we can choose model and quote for you quickly.

2. Q: Are you a trade company or a manufacturer?

    A: We are an ISO approved manufacturer specialized in level and flow measuring instruments.

        OEM & ODM service are available. Welcome to visit us.

3. Q: What is your MOQ?

    A: To start our cooperation, sample order is acceptable.

4. Q: What is your delivery date?

    A: The delivery date is about 3-15 working days after receipt of payment.

5. Q: What is your payment terms?

    A: We support T/T, PayPal and Trade Assurance.

         For mass production order, it is 30% deposit in advance and 70% balance before shipment.

6. Q: What is Trade Assurance payment method:

    A: It’s a free service which can protect your orders from payment to delivery.

        And we now have USD104,000.00 of caution money to assure your orders.

7. Q: Do you have a warranty?

    A: Yes, we have the warranty of 12 months.
