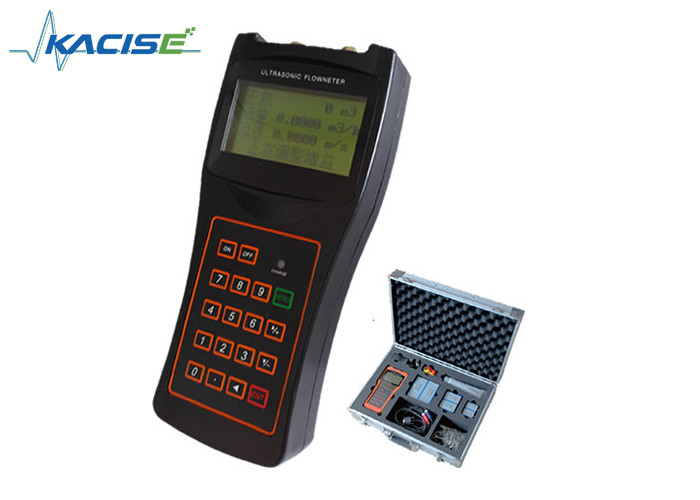

Rechargeable Battery Portable Ultrasonic Flow Meter For Routing Inspection

Rechargeable Battery Portable Ultrasonic Flow Meter For Routing Inspection

  • Rechargeable Battery Portable Ultrasonic Flow Meter For Routing Inspection
  • Rechargeable Battery Portable Ultrasonic Flow Meter For Routing Inspection
  • Rechargeable Battery Portable Ultrasonic Flow Meter For Routing Inspection
  • Rechargeable Battery Portable Ultrasonic Flow Meter For Routing Inspection
Rechargeable Battery Portable Ultrasonic Flow Meter For Routing Inspection
Product Details:
Place of Origin: China
Brand Name: KACISE
Certification: CE
Model Number: KUFH2000A
Payment & Shipping Terms:
Minimum Order Quantity: 1 piece
Price: Negotiable
Packaging Details: one carton for one set
Delivery Time: 5-8 work days
Payment Terms: L/C, T/T, Western Union, MoneyGram
Supply Ability: 1000 sets per month
Contact Now
Detailed Product Description
Power Supply: Rechargeable Batter Output: RS232, OCT
Pipe Diameter: DN32~6000mm Language: Chinese, English, Italian, French
Temperature: - 30~160℃ Medium: Water, Sea Water, Waste Water, Liquid Alcohol, Beer, Gas, Oil, Etc
High Light:

portable clamp on flow meter

,

ultrasonic liquid flow meter

Rechargeable Battery Portable Handheld Ultrasonic Flow Meter for Routing Inspection



Introduction



KUFH2000 ultrasonic flow meter is designed to measure the fluid velocity of liquid in a full/closed pipe. It is a handheld measurement system which is both easy to install and use. The KUFH2000 operates according to the difference in the transit time of flight measured, and determines the flow velocity by measuring the travel time of a pulse from one transducer to the next.

Flow in the same direction takes less time to travel to the second transducer than does flow in the opposite direction. Electroacoustic transducers receive and emit brief ultrasonic pulses through the liquid of the pipe. Transducers are vertically placed at both sides of the measured pipe. Sensors are placed on the pipe and fastened by means of a clamp. The display will quickly show the flow velocity. The KUFH2000 can be used for metallic, plastic and rubber tubes. And it can measure heat if adding temperature sensor.



Features



  • 1% accuracy.
  • Non-contact to liquid measurement, so non-conductive, corrosive, explosive liquid can be measured.
  • Wide range for various application fields. (DN32-DN6000)
  • Portable handheld host meter with clamp-on sensors measure liquid flows nearly anywhere.
  • No mechanical drive in ultasonic flowmeter, parts are rarely damaged. Maintenance free and long operating life.
  • Easy and quick installation. Save time with no pipe cutting or process shutdown.
  • No obstruction measurement, no pressure loss.



Specifications



Items Performance and Parameter
Main Unit Principle transit-time ultrasonic flow meter
Accuracy Accuracy : 1%
Display 4 x 8 or 4 x 16 Character matrix backlight LCD, support languages of English, Chinese, Italian and French.
Signal output 1 channel pulse output OCT (pulse width is adjustable between 6~1000ms, 200ms(default).

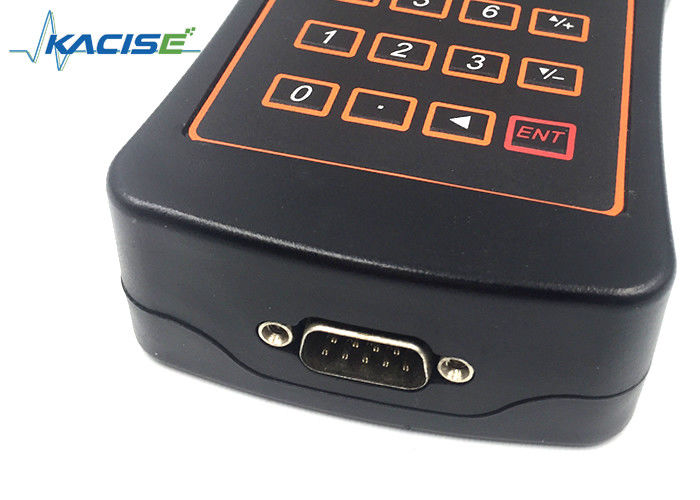

Data interface Insulate RS232 / RS485 serial interface, upgrade the flow meter software by computer, support the MODBUS, etc.
Pipe condition Pipe material

Steel, Stainless steel, Cast iron, Copper, Cement pipe, PVC, Aluminum, Glass

steel product, liner is allowed.

Pipe diameter DN32~6000mm
Straight pipe length

Sensor installation should be satisfied: upstream10D, downstream 5D,

30D from the pump.

Medium Type of liquid Water, sea water, waste water, liquid alcohol, beer, gas, oil, etc
Temperature -30~160℃
Turbidity 10000pm not so much baubles
Flow rate 0~±10m/s



Environment

Temperature

Main unit: -20--60℃

Flow sensor: -30--160℃

Humidity Main unit: 85%RH; Sensor is IP67
Power supply 3 built-in 1.2V capacity rechargeable Ni-MH battery 2000mAH,full of electricity sustainable work more than 12 hours, power adapter: AC90 ~260V, which can realize continuous measurement
Consumption 1.5W
Casing material Inflaming retarding ABS









Description of Parts



Rechargeable Battery Portable Ultrasonic Flow Meter For Routing Inspection 0

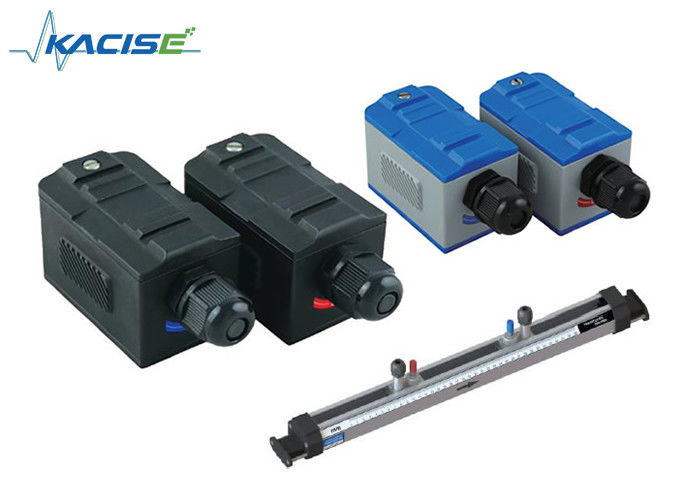

Sensor Selection



Rechargeable Battery Portable Ultrasonic Flow Meter For Routing Inspection 1



Ordering information

Rechargeable Battery Portable Ultrasonic Flow Meter For Routing Inspection 2
