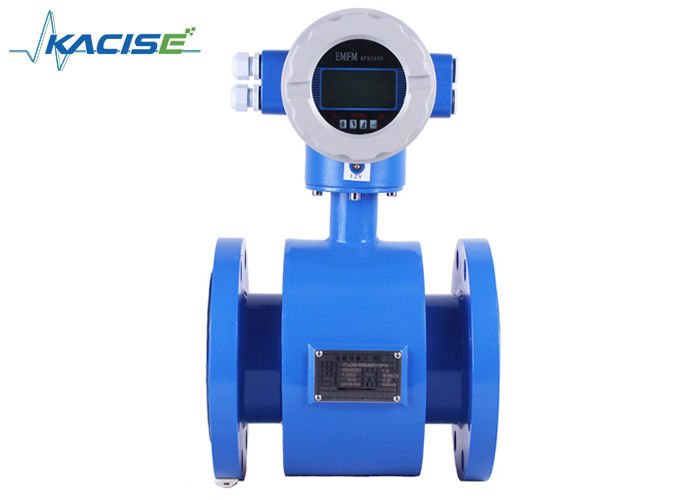

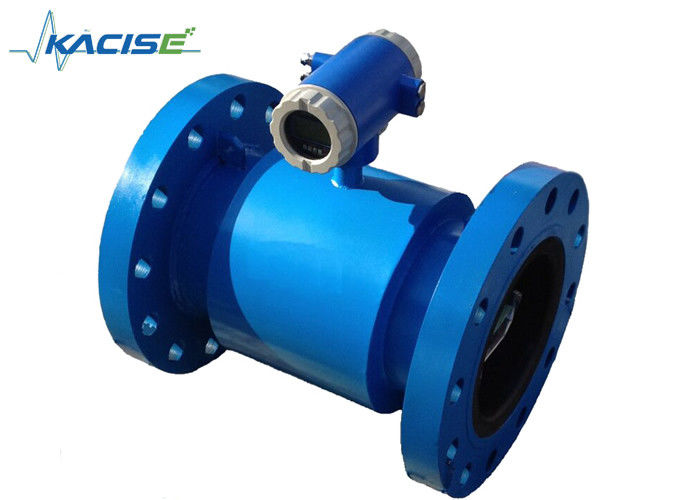

Compact / Integrated Electromagnetic Flow Meter Anti Shake For Chemical Industry

Compact / Integrated Electromagnetic Flow Meter Anti Shake For Chemical Industry

    • Compact / Integrated Electromagnetic Flow Meter Anti Shake For Chemical Industry
    • Compact / Integrated Electromagnetic Flow Meter Anti Shake For Chemical Industry
    • Compact / Integrated Electromagnetic Flow Meter Anti Shake For Chemical Industry
  • Compact / Integrated Electromagnetic Flow Meter Anti Shake For Chemical Industry

    Product Details:

    Place of Origin: China
    Brand Name: KACISE
    Certification: ISO / CE
    Model Number: KEF Series

    Payment & Shipping Terms:

    Minimum Order Quantity: 1pc
    Price: Negotiable
    Packaging Details: Carton / Wooden box
    Delivery Time: 7 Working days
    Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
    Contact Now
    Detailed Product Description
    Pressure: 1.6 Mpa ,2.5Mpa ,4.0Mpa (Special) Diameter: DN10 ~ DN2600
    Temperature: -20°C - +160 °C Power Supply: 24VDC, 220VAC
    Communication: RS-485 / MODBUS , HART Accuracy: ±0.2% (Customize), ±0..5% (Standard)
    Electrode: SUS316,HC,HB,Titanium, Tantalum, Etc. Output Signal: 4~20mA / Pulse / 0~10V
    Installation: Flange, Clamp On, Thread Protection Class: IP65, IP68(optional)
    High Light:

    wastewater flow meter

    ,

    electromagnetic water flow meter



    Compact / Integrated Electromagnetic Flow Meter Anti-shake Flowmeter For Chemical , Paper Industry / Waste Water



    Introduction



    is a kind of induction instrument designed by Faraday’s law of electromagnetic induction to measure flow of conductive media in the tube. It adopts the technology of insertion of single chip to realize digital excitation and employs CAN local fieldbus.
    Electromagnetic flow meter can realize local indication and output electrical current signal of 4-20mA which can be used to record, adjust and control. Electromagnetic flow meters are widely used in industrial sectors such as chemical industry, environmental protection, metallurgy, pharmaceutical, paper making, water supply and removal etc.
    Besides measuring flow of general conductive liquid electromagnetic flow meter can measure flow of liquid-solid mixed fluid, high-viscosity fluid and salt, strong acid and strong alkali.



    Features



    1. Simple structures, firm, no movable parts and long operation life.(Guarantee in 1 years)

    2. No intercepting fluid parts, no pressure loss and fluid clogging.

    3. No mechanical inertia, quick response and good stability, application in automatic examination, adjustment & controlling.

    4. Measuring accuracy not influenced by physical parameters such as style, temperature, viscosity, density and pressure.

    6. Supply many styles of flow meters such as inline type and insertion type, etc.

    Adopt EEPROM memory to measure operation data, safe and reliable protection of memory.

    7. Integral type flow meters and remote type flow meters.

    8. LCD back light display with high clearness. (Option: LED back light display)



    Parameters



    Pipe diameter DN6~DN2600
    Accuracy 0.3% (Option), 0.5%, 1.0% of F.S..
    Repeatability Below 0.25%
    Power AC: 220V, 50-60Hz; DC: +24V(Option)
    Output Signals 4~20mA, Pulse, 0~5V
    Conduit connection M20 * 1.5 Thread
    Communication Interface RS-232; RS-485; HART
    Operation Pressure 1.0MPa, 1.6MPa, 4.0MPa, 16MPa (Special)
    Fluid Temperature -20°C~80°C, 80°C ~130°C, 130°C ~180°C Depending on Lining Material
    Ambient Temperature Sensor -40°C ~80°C. transducer -15°C ~50°C
    Ambient Humidity ≤ 85%RH (at 20C)
    Cable Outlet Size M20×1.5
    Power Supply 220VAC±10%, 50-60Hz±1Hz, 24VDC±10%, Battery power (3-5years)
    Power Consumption ≤ 15W
    Protection Ratings Remote type: sensor IP68, transducer IP65.
    Materials Electrode 316L (stainless steel), Hastelloy C, Hastelloy B,Titanium, Tantalum, etc.
      Liner PTFE, Soft rubb er, Hard rubber, F46, FS, PUR.
    Measuring tube SS 304, carbon steel
    Flange Carbon Steal, SS304
    Ground ring 316L (stainless steel), HC, Ti, Ta, Cu.
    Connection of Flange

    National Standard GB9119-88 (DIN2051, BS4504), JIS,ANSI. Screw.

    Tri-clamp for sanitary application

    Insertion type.

    EX-proof protection Exde ib ii BT2
    Quality control

    ISO9001-2008, CE





























































    Model selection

    Compact / Integrated Electromagnetic Flow Meter Anti Shake For Chemical Industry 0
