Sewage treatment chemical industry on-line electromagnetic flowmeter inline/insert type

Sewage treatment chemical industry on-line electromagnetic flowmeter inline/insert type

wastewater flow meter

electromagnetic water flow meter

Place of Origin:

China

Brand Name:

KACISE

Certification:

ISO / CE

Model Number:

KEF Series

Contact Us
Request A Quote
Product Details
Pressure:
1.6 Mpa ,2.5Mpa ,4.0Mpa (Special)
Diameter:
DN10 ~ DN2600
Temperature:
-20°C - +160 °C
Power Supply:
24VDC, 220VAC
Communication:
RS-485 / MODBUS , HART
Accuracy:
±0.2% (Customize), ±0..5% (Standard)
Electrode:
SUS316,HC,HB,Titanium, Tantalum, Etc.
Output Signal:
4~20mA / Pulse / 0~10V
Installation:
Flange, Clamp On, Thread
Liner:
PTFE, F46, PFA
Highlight:

wastewater flow meter

,

electromagnetic water flow meter

Payment & Shipping Terms
Minimum Order Quantity
1pc
Price
Negotiable
Packaging Details
Carton / Wooden box
Delivery Time
7 Working days
Payment Terms
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Product Description

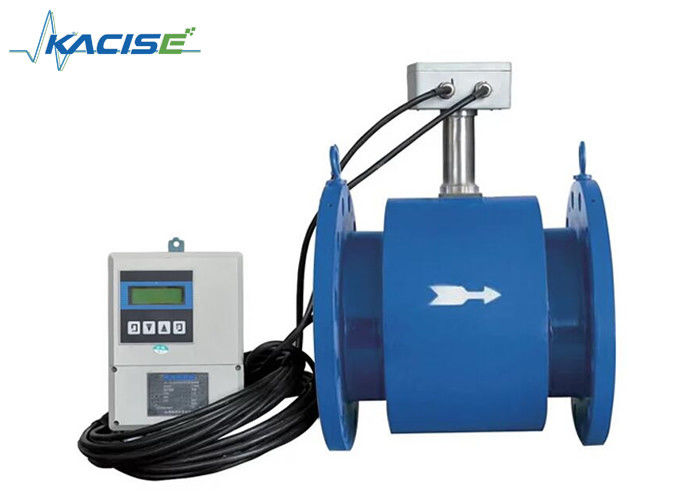

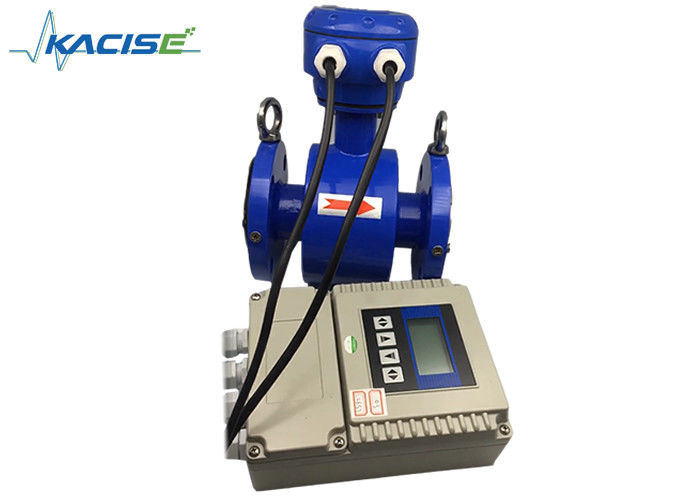

Remote Type Electromagnetic Flow Meter / Low Power Consumption Type, Less Than 2W For Solar Power Supply





Features



1. No moving parts, compact structure, strong, long service life. (1 year warranty)

2. No cut-off site, no pressure loss and fluid blockage.

3. No mechanical inertia, fast response, good stability, suitable for automatic detection, regulation and control.

4. Measurement accuracy is not affected by physical parameters, such as flow rate, temperature, viscosity, density and pressure.

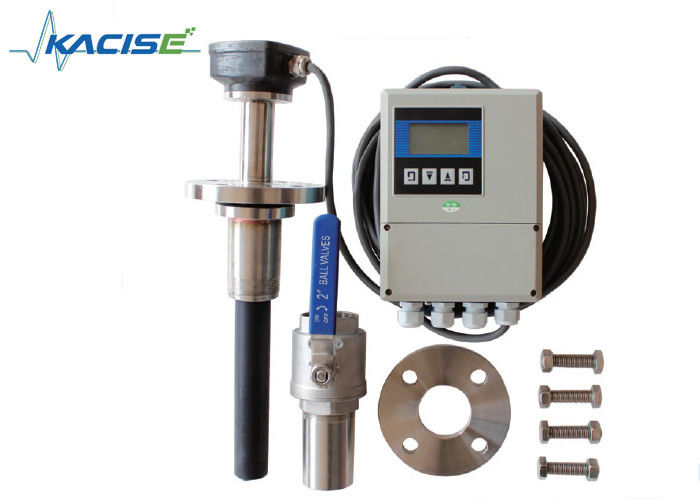

5. Can provide inline type, insert type and other types of flowmeter. EEPROM memory is used to measure running data, and the memory protection is safe and reliable.

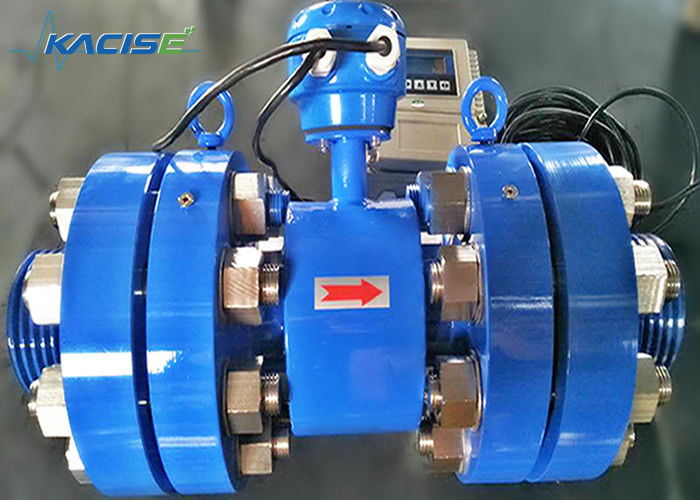

6. High pressure sensor with PFA liner, high pressure and negative pressure resistance, suitable for chemical and corrosive solutions.

7. It is not only suitable for general engineering, but also suitable for mining, paper and other harsh applications.





Introduction



An electromagnetic flowmeter is an instrument designed to measure the flow of a conducting fluid based on the electromotive force induced by an external magnetic field, utilizing the principle of electromagnetic induction. Its structure primarily consists of a magnetic circuit system, measuring conduit, electrode, shell, lining, and converter.



The KEF series electromagnetic flowmeter finds extensive application in various industrial sectors, including sewage treatment, chemical industry, metallurgy, pharmaceutical factories, and water supply plants. This flowmeter provides a 4~20mA output and RS485 communication capabilities. In addition to measuring general liquids, electromagnetic flowmeters are capable of measuring certain types of solids, such as liquid-solid mixed fluids, high viscosity fluids, and flows containing acids, alkalis, and salts.





Parameters



Pipe diameter DN6~DN2600
Accuracy 0.3% (Option), 0.5%, 1.0% of F.S..
Repeatability Below 0.25%
Power AC: 220V, 50-60Hz; DC: +24V(Option)
Output Signals 4~20mA, Pulse, 0~5V,0~10V, Low power only output RS485
Conduit connection M20 * 1.5 Thread
Communication Interface RS-232; RS-485; HART
Operation Pressure 1.0MPa, 1.6MPa, 4.0MPa, 16MPa (Special)
Fluid Temperature -20°C~80°C, 80°C ~130°C, 130°C ~180°C Depending on Lining Material
Ambient Temperature Sensor -40°C ~80°C. transducer -15°C ~50°C
Ambient Humidity ≤ 85%RH (at 20C)
Cable Outlet Size M20×1.5
Power Supply 220VAC±10%, 50-60Hz±1Hz, 24VDC±10%, Battery power (3-5years)
Power Consumption ≤2W
Protection Ratings Remote type: sensor IP68, transducer IP65.
Materials Electrode 316L (stainless steel), Hastelloy C, Hastelloy B,Titanium, Tantalum, etc.
  Liner PTFE, Soft rubb er, Hard rubber, F46, FS, PUR.
Measuring tube SS 304, carbon steel
Flange Carbon Steal, SS304
Ground ring 316L (stainless steel), HC, Ti, Ta, Cu.
Connection of Flange

National Standard GB9119-88 (DIN2051, BS4504), JIS,ANSI. Screw.

Tri-clamp for sanitary application

Insertion type.

EX-proof protection Exde ib ii BT2
Quality control

ISO9001-2008, CE





























































Model selection



Sewage treatment chemical industry on-line electromagnetic flowmeter inline/insert type 0
