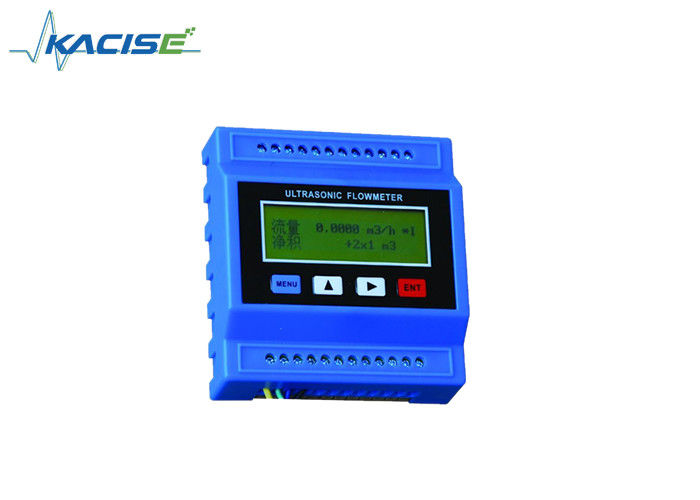

KUFM2000 Small Size and Easy Operation Ultrasonic Flow Module/RTU
Introduction
Ultrasonic flow module/RTU is widely used for various kinds of liquid measuring. The host adopts
rail installation, sensors are installed on pipe. They are contacted by a special cable. It can measure flow, also can measure heat if contact temperature sensor.
It can be used in system integration, water resource, energy conservation applications, etc.
Features
1%
Several types transducer for selection, pipe size from DN15mm to DN6000mm
Adopt low voltage, multi-pulse technology to improve accuracy, operation life and reliability.
Dual-balance signal differential receiver/driver circuit to avoid interference of converter, TV tower,high voltage line etc.
1 way 4-20mA, as a flow sensor or quantity of heat sensor; 2 way OCT output, as a switch for flow/ quantity of heat; 3 way 4-20mA output, as s collector for data; 2 way 3 wires is PT100 signal output of resistors, as a watch for quantity of heat.
RS485 support connect wireless net, contact the GPRS485 can realize wireless transmittal.
Connect the temperature transducer ,can finish the heat/energy measurement
Specifications
Parts | Parameters in detail | |
Host part |
Theory | Ultrasonic time gap |
Accuracy | ±1% | |
Option method | 4-keyboard support magnetic rod operation | |
|
1 channel 4~20mA @ 0.1% current loop back, the maxim load resistor up to 1000 ohm | |
1 channel OCT pulse output (default pulse width is 200ms, and can be modify between 6 to 1000ms) | ||
1 channel relay output (3A@220V) | ||
Signal input |
3 channel 4-20mA current loop back @0.1% circuit used to collect Temp. Pressure and liquid level etc. | |
1 channel mV input use to pt100 for calorimeter | ||
Digital port | RS485 support Mod-bus protocol and support firmware update | |
Cable | Special cable for RS485 the range up to 1000m | |
Suit pipe |
Pipe material | Steel, cast iron cement, copper, PVC, Aluminum, glass, etc |
Inner DN | 15~6000mm | |
Sensor position | It’s better the sensor fix at the position of at least 10D far away of upstream, or 5D far away of upstream, at least 20D far away from the pump outlet(D is the inner diameter of the pipe) | |
Suit flow |
Media | Water, sea water, waste water, liquid alcohol, beer, gas, oil, etc |
Temperature | -30~160℃ | |
Turbidity | 10000pm not so much baubles | |
Flow speed | 0~±10m/s | |
Environment | temperature | Host: -20~60℃; Sensor: -30~160℃ |
Humidity | Host: 85%RH; Flow sensor: IP68, less than 2m under water | |
Power supply | DC8~36V or AC85~265V( optional) | |
consumption | 1.5W |
Description of Parts

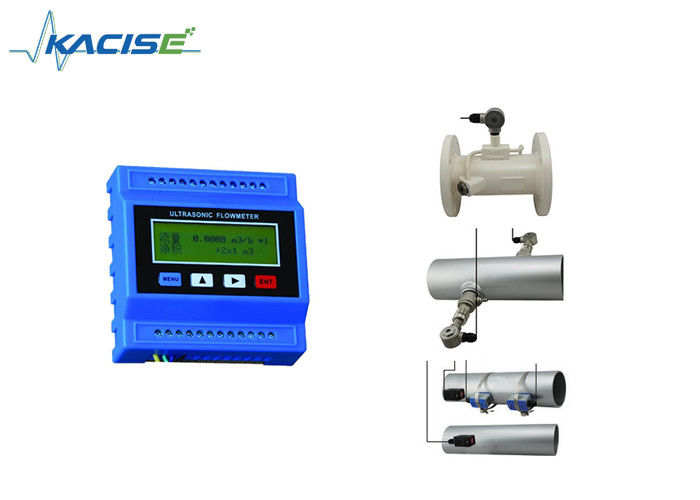

Sensor Selection
Optional Temp. sensor
Measure graph
1. Clamp on type
Easy to install without interrupt fluid, no damage for pressure
Install and service clamp sensor conveniently
It can measure the temperature out of the pipe, compute the quantity of heat
2. Plug in type
Easy to install without interrupt fluid, no damage for pressure
Stable operation, contact the temperature sensor which inserted, compute quantity of heat by the temperature sensor.
3. Pipe type
Install with interrupt flow
High accuracy, stable operation, contact the temperature sensor which inserted, compute quantity of heat by the temperature sensor
Application field
Model selection
