| Place of Origin: | China |
| Brand Name: | KACISE |
| Certification: | CE |
| Model Number: | KUFS2000 series |
| Minimum Order Quantity: | 1 piece |
|---|---|
| Price: | Negotiable |
| Packaging Details: | one carton for one set |
| Delivery Time: | 5-8 work days |
| Payment Terms: | L/C, T/T, Western Union, MoneyGram |
| Supply Ability: | 1000 sets per month |
| Cable: | Twisted-pair Cable, Generally, The Length Under 50 Meters | Power Supply: | DC8~36V Or AC85~265V( Optional) |
|---|---|---|---|
| Pipe Diameter: | 15~6000mm | Temperature: | -30~160℃ |
| Signal Output: | 1 Way OCT Pulse Output( Pulse Width 6 ~ 1 0 0 0 Ms，default Is 2 0 0 Ms) | Data Interface: | Insulate RS485 Serial Interface |
| Pipe Material: | Steel, Stainless Steel, Cast Iron, Copper, Cement Pipe, PVC, Aluminum, Glass Steel Product, Liner Is Allowed | Humidity: | Flow Sensor: IP68, Less Than 2m Under Water |
| High Light: | portable clamp on flow meter,ultrasonic flow transducer |
||
Easy Installation and High Accuracy Ultrasonic Flow Meter with Optional Heat Measurement
KUFS2000 series separated type ultrasonic flow meter usually used in various liquids, and it support measuring online long-term. No need to cut the pipe, flow when you install it.

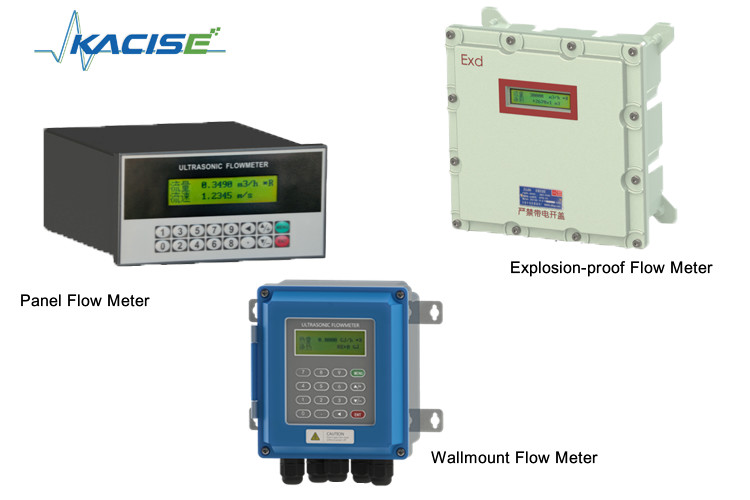

The host has wall mounting type, panel mount type, explosion proof type; Sensors include clamp on type, plug in type and pipe type. It can measure heat if add temperature sensor.
Features
1%
Choose different types of sensors, you can realize to measure the flow of DN15~DN6000mm pipes.
Use double-balanced signal to launch and receive circuit, It can resist inverter, television tower, high tension cable, etc.
Automatically record the following data:
Record the totality data of the last 512 days/ 128 months/ 10 years.
The time and corresponding flow rate of the last 64 times of power on and off events. Record the working status of the last 32 days.
It can measure heat if add temperature sensor.
Optional SD memorizer function, which can remember a large of data
| Item | Performance and Parameter | |
|
Host part |
Principle | Ultrasonic time gap |
| Accuracy | ±1% | |
| Display | 2×20 character LCD with backlight, support the language of Chinese, English and Italy Convertor dimension:170*180*56cm | |
|
Signal output |
1 way 4~ 20mA output, electric resistance 0~ 1K,accuracy0. 1% | |
| 1 way OCT pulse output( Pulse width 6 ~ 1 0 0 0 ms,default is 2 0 0 ms) | ||
| 1 way Relay output | ||
|
Signal input |
3 way 4~ 20mA input, accuracy 0. 1%,acquisition signal such as temperature, press and liquid level | |
| Connect the temperature transducer Pt100, can finish the heat/energy measurement | ||
| Data interface | Insulate RS485 serial interface, upgrade the flow meter software by computer, support the MODBUS, METER-BUS etc. | |
| Cable |
Twisted-pair cable, generally, the length under 50 meters; Select the RS485 communication. The transmission distance can over 1000m. |
|
|
Pipe Condition |
Pipe material | Steel, Stainless steel, Cast iron, Copper, Cement pipe, PVC, Aluminum, Glass steel product, liner is allowed. |
| Pipe Diameter | 15~6000mm | |
| Straight length pipe | Transducer installation should be satisfied: upstream10D, downstream 5D, 30D from the pump. | |
|
Measuring Medium |
Type of Liquid | Water, sea water, waste water, oil, chemicals (alcohol, acids, etc.), plant effluent and other liquids |
| Temperature | -30~160℃ | |
| Turbidity | 10000pm not so much baubles | |
| Flow speed | 0~±10m/s | |
|
Environment |
Temperature | Host: -20~60℃; Sensor: -30~160℃ |
| Humidity | Host: 85%RH; Flow sensor: IP68, less than 2m under water | |
| Power supply | DC8~36V or AC85~265V( optional) | |
| consumption | 1.5W | |
2.Plug in type
Easy to install without interrupt fluid,no damage for pressure
Stable operation,contact the temperature sensor which inserted, it can calculate heat by the temperature sensor.
3.Pipe type
Install with interrupt flow
High accuracy, stable operation, contact the temperature sensor which inserted, it can calculate heat by the temperature sensor.
Sensor or Selection
Sensor selection depend on the application field parameters such as the diameter of the pipe the fix method the kind of the flow, please refer to the fix method choice chapter for details.
Optional Temp. sensor
Optional SD memorizer
SD card data storage can realize the large quantity storage of measurement data of ultrasonic flow meter. It can solve the inconvenience problem of measurement data storage, reading and processing for wall mounted type flow meter.
It can completely replace the manual meter reading, paperless recorder.

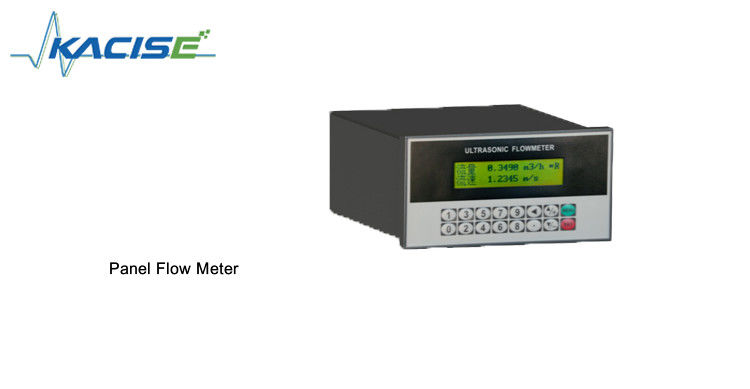

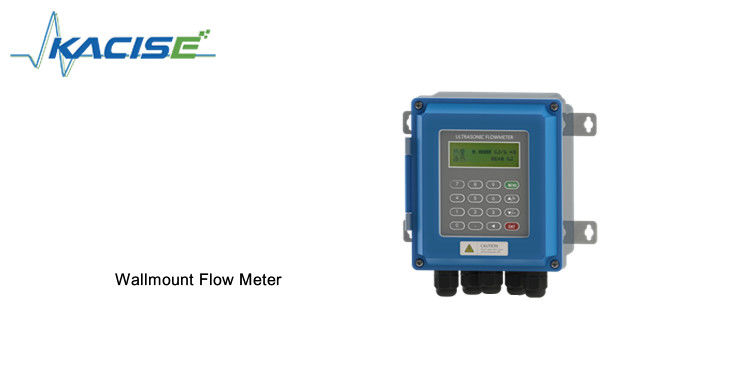

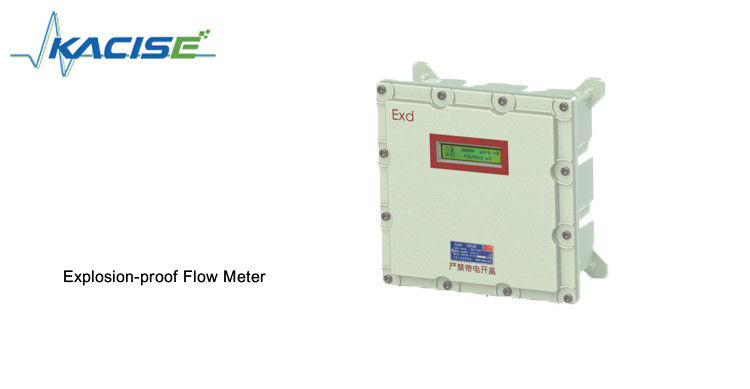

Optional Host
According to different installation condition, below are models of separated ultrasonic flow meter:
Ordering Information
