Product Details:
Place of Origin: China
Brand Name: KACISE
Certification: CE
Model Number: KUFS2000A Series
Payment & Shipping Terms:
Minimum Order Quantity: 1 piece
Price: Negotiable
Packaging Details: one carton for one set
Delivery Time: 3-5 work days
Payment Terms: L/C, T/T, Western Union, MoneyGram
Supply Ability: 1000 sets per month
Contact Now
Detailed Product Description
Signal Output: 4-20mA, OCT Pulse, Relay Communication: RS485 Modbus
Pipe Material: Steel, Stainless Steel, Cast Iron, Copper, Cement Pipe, PVC, Aluminum, Glass Steel Product, Liner Is Allowed Medium: Water, Sea Water, Waste Water, Oil, Chemicals (alcohol, Acids, Etc.), Beverage (beer, Wine, Etc.)...
Power Supply: DC8~36V Or AC85~265V Pipe Diameter: 15~6000mm
High Light:

ultrasonic flow transducer

,

ultrasonic liquid flow meter

Wall Type / Rail Mount Remote Control Ultrasonic Flow Meter For Water / Oil / Milk Flow Measurement



Introduction

Ultrasonic flowmeter is a flowmeter developed based on the principle that the propagation velocity of ultrasonic in flowing medium is equal to the vector sum of the average velocity of the measured medium and the velocity of acoustic wave in stationary medium. It is mainly composed of transducers and transducers. According to the principle of signal detection, ultrasonic flowmeter can be divided into propagation velocity difference method (direct time difference method, time difference method, phase difference method and frequency difference method), beam shift method, Doppler method Cross-correlation method, spatial filtering method and noise method.

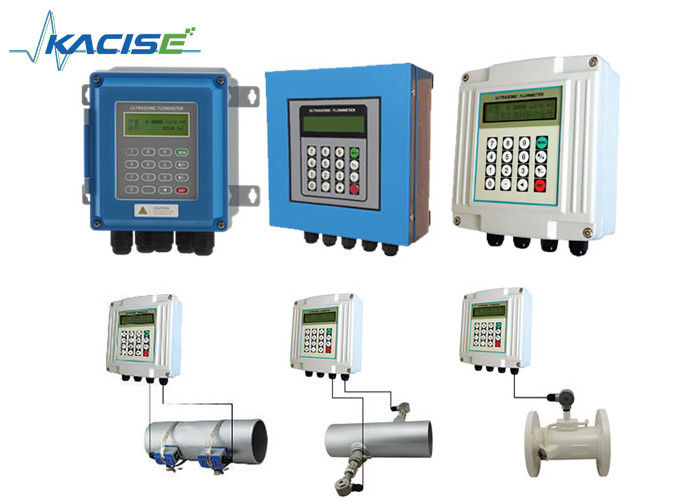

KUF2000A series ultrasonic flowmeter is used for long-term field measurement. It has three different types of sensors to measure pipeline flow. clamp on type, insertion type and inline pipe type. And it can measure heat if add temperature sensor. SD card is optional to save large quantity of data.



Inline pipe type: DN15-32mm pipes uses π shape inline pipe sensor, DN40 and above uses standard inline pipe sensor. The inline sensors has the advantages of low starting flow rate, high measurement accuracy and no pressure loss.

Clamp on type: The sensors clamp on to the outside of pipes and do not come in contact with the internal liquid. And all the models can become energy meters when connecting to temperature sensors. KUF2000 Series Clamp On Ultrasonic Flowmeter is easy for installation, no need to cut off the pipe and water, no press loss. It support measuring online long-term. Wide range of liquid flow can be measured with the sensor clamped on the pipe.

Insertion type: Only two installation holes are needed on the pipe, user can install the insertion type sensors. By using the hole making tool, the no stop flow installation can be realized. Sensors contact to the fluid directly, the measurement is stable and reliable.



Parameters

















Host part

Principle

Ultrasonic time gap

Accuracy

±1%

Display

2×20 character LCD with backlight



Signal output

1 way 4~ 20mA output, electric resistance 0~ 1K,accuracy0. 1%

1 way OCT pulse output( Pulse width 6 ~ 1 0 0 0 ms,default is 2 0 0 ms)

1 way Relay output



Signal input

3 way 4~ 20mA input, accuracy 0. 1%,acquisition signal such as temperature, press and liquid level

Connect the temperature transducer Pt100, can finish the heat/energy measurement

Data interface

Insulate RS485 serial interface, upgrade the flow meter software by computer, support the MODBUS, METER-BUS etc.

Cable

Twisted-pair cable, generally, the length under 50 meters;

Select the RS485 communication. The transmission distance can over 1000m.





Pipe Condition

Pipe material

Steel, Stainless steel, Cast iron, Copper, Cement pipe, PVC, Aluminum, Glass steel product, liner is allowed.

Pipe Diameter

15~6000mm

Straight length pipe

Transducer installation should be satisfied: upstream10D, downstream 5D, 30D from the pump.





Medium

Type of Liquid

 Water, sea water, waste water, oil, chemicals (alcohol, acids, etc.), plant effluent and other liquids

Temperature

-30~160°C

Turbidity

10000pm not so much baubles

Flow speed

0~±10m/s

Environment

Temperature

Host: -20~60°C; Sensor: -30~160°C

Humidity

Host: 85%RH;  Flow sensor: IP68, less than 2m under water

Power supply

DC8~36V or AC85~265V( optional)

Consumption

1.5W

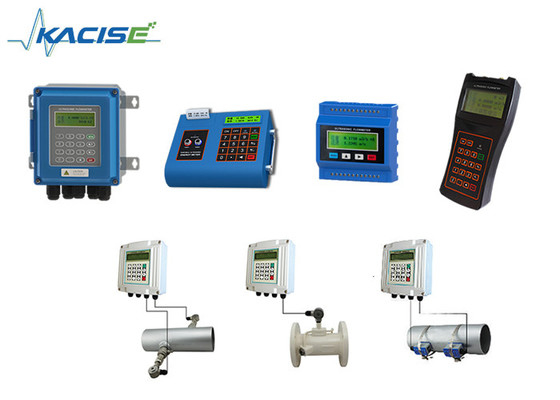

Optional Host



Wall Type / Rail Mount Ultrasonic Flow Sensor , Remote Control Ultrasonic Flow Detector RS485 communication 0

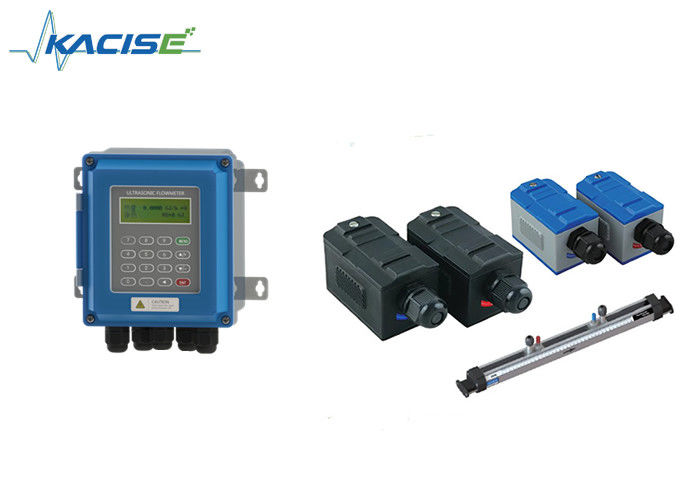

Sensor Selection



Wall Type / Rail Mount Ultrasonic Flow Sensor , Remote Control Ultrasonic Flow Detector RS485 communication 1



Optional Temp. sensor



Wall Type / Rail Mount Ultrasonic Flow Sensor , Remote Control Ultrasonic Flow Detector RS485 communication 2

Ordering Infomation



Wall Type / Rail Mount Ultrasonic Flow Sensor , Remote Control Ultrasonic Flow Detector RS485 communication 3
