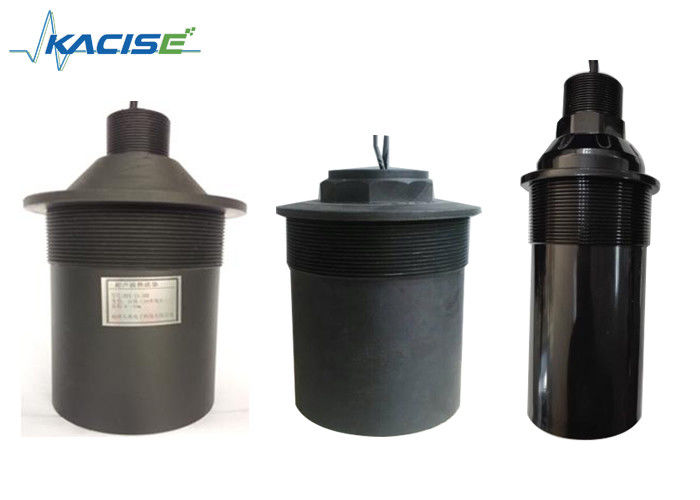

Name: 50m Range IP68 Waterproof Industrial Ultrasonic Sensor with 16KHz Frequency Ultrasonic Transducer Probe
Brand: Xi'an Kacise Optronics Co.,Ltd.
SKU: KUA series
Price: 1,000.10 USD
Availability: InStock

Home > Products > Ultrasonic Transducer Sensor >

50m Range IP68 Waterproof Industrial Ultrasonic Sensor with 16KHz Frequency Ultrasonic Transducer Probe

waterproof ultrasonic sensor

industrial ultrasonic sensor

Place of Origin:

China (Mainland)

Brand Name:

Kacise

Model Number:

KUA series

Request A Quote

50m Range IP68 Waterproof Industrial Ultrasonic Sensor with 16KHz Frequency Ultrasonic Transducer Probe

Product Details

Housing Material:

POM，PC

IP Grade:

IP68

Frequency:

16KHz±5%，21KHz±5%

Range:

1.8～50m，1.0～30m

Minimum Impedance:

790Ω±20％，1500Ω±20％，530Ω±20％

Capacitance:

12700pF±20％ @1KHz，12000pF±20％ @1KHz，10700pF±20％ @1KHz

Weight:

2400g±5％，2000g±5％，1740g±5％

Working Voltage:

-40～+80℃，

Pressure:

≤3kg Or 0.3MPa

Angle:

(Beam Width) Half-power Angle@-3dB:13°±2; Sharpness Angle: 30°±4;

Highlight:

waterproof ultrasonic sensor

industrial ultrasonic sensor

Payment & Shipping Terms

Minimum Order Quantity

1ps

Price

Negotiable

Packaging Details

each unit has individual box and all boxes are packed in standard packages or customers requests available

Delivery Time

5-8 work day

Payment Terms

L/C,D/A,D/P,T/T,Western Union,MoneyGram,paypal

Supply Ability

1000 Pieces per Week

KUS650 Ultrasonic Tank Wireless Level Sensor with IP65 Protection and 200mm~3000mm Detection Range for Sewage Treatment

Get Best Price

Video

KUM2500C Ultrasonic Fuel Tank Level Sensor with 0.1mm Measurement Resolution IP67 Protection and RS232/RS485/TTL/4-20mA Interface

Get Best Price

Video

15m Non-Contact Ultrasonic Water Level Sensor with RS485 Output IP68 Protection Corrosion Resistant High Sensitivity

Get Best Price

Video

Smallest Or Miniature Liquid Level Ultrasonic Transducer Sensor PVDF Material

Get Best Price

Contact Now

Product Description

IP68 30 50m Range 16KHz 21KHz Range waterproof ndt Ultrasonic Transducer Probe Sonicator

1. Product Description

The ultrasonic transducer is a device that converts the signal of a different kind of energy into a device that requires an ultrasonic or signal or energy. Or, conversely, the ultrasonic signal or energy converted into another form of signal or energy device, widely used in industry, agriculture, transportation, life, medical and affairs.
The ultrasonic transducer of our company is mainly divided into gas and liquid ultrasonic transducer with a wide range of measurements, applying to weak acid and base, strong acid and strong base, explosion and other environment.

2. Paramters

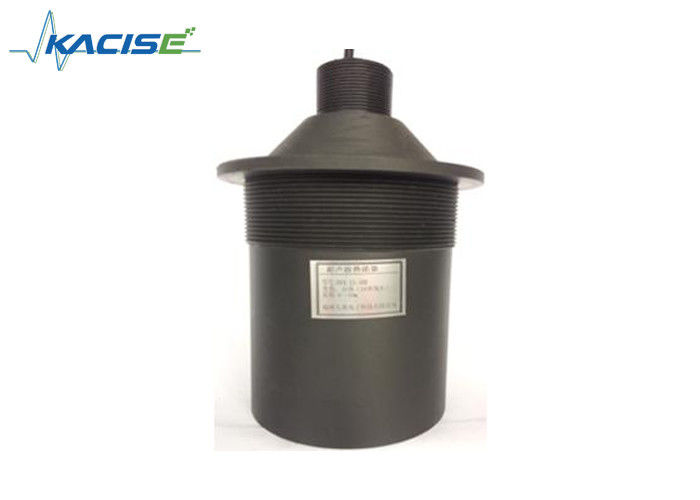

Name	50m Range Common Transducer Model D
Model	KUA-15-50D-F
Frequency	16KHz±5%
Range	1.8～50m
Minimum impedance	790Ω±20％
Capacitance	12700pF±20％ @1KHz
Sensitivity	emits voltage:520Vpp,distance 0.6m, echo amplitude 1200mV
Working voltage	Peak point voltage＜1500VPP
Working temperature	-40～+80℃
Pressure	≤3kg or 0.3MPa
Angle	(Beam width) half-power angle@-3dB:13°±2; Sharpness angle: 30°±4;
Housing material	POM
Usage	ultrasonic level meter, ultrasonic anti-collision, ultrasonic distance sensor
IP grade	IP68
Weight	2400g±5％(cable length: 10m)

Name	50m Range Common Transducer Model D
Model	KUA-15-50D
Frequency	16KHz±5%
Range	1.8～50m
Minimum impedance	1500Ω±20％
Capacitance	12000pF±20％ @1KHz
Sensitivity	emits voltage:520Vpp,distance 0.6m, echo amplitude 1100mV
Working voltage	Peak point voltage＜1500VPP
Working temperature	-40～+80℃
Pressure	≤3kg or 0.3MPa
Angle	(Beam width) half-power angle@-3dB:13°±2; Sharpness angle: 30°±4;
Housing material	POM
Usage	Ultrasonic level meter, anti-collision, ultrasonic distance sensor
IP grade	IP68
Weight	2000g±5％

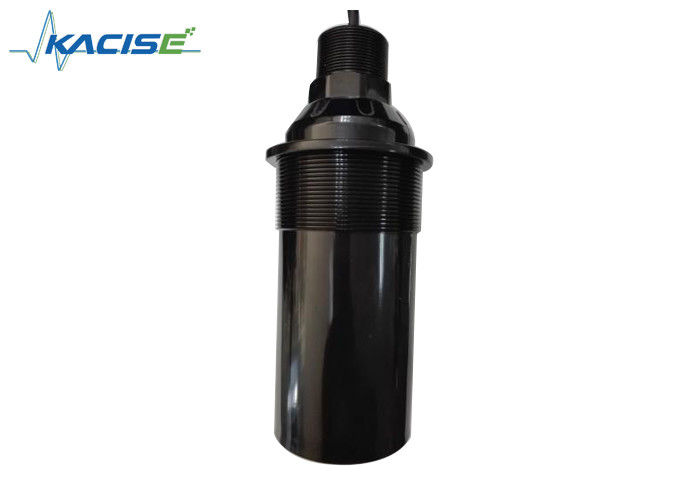

Name	30m Range Common Transducer Model C
Model	KUA-21-30C-F
Frequency	21KHz±5%
Range	1.0～30m
Minimum impedance	530Ω±20％
Capacitance	10700pF±20％ @1KHz
Sensitivity	emits voltage:520Vpp,distance 0.6m, echo amplitude 380mV
Working voltage	Peak point voltage＜1500VPP
Working temperature	-40～+80℃
Pressure	≤3kg or 0.3MPa
Angle	(Beam width) half-power angle@-3dB:13°±2; Sharpness angle: 31°±4;
Housing material	PC
Usage	ultrasonic level sensor, monitor, anti-collision, security
IP grade	IP68
Weight	1740g±5％(cable length: 10m)

3.Feature

Short response time
Digital tube display measuring distance
Various springs available: switch, analog, or RS232/485
High resolution

4.Application Field

Wind speed indicator
Ranging in air medium
Object position detection
Monitoring, collision avoidance, security
Gas meter
Gas flow meter
Paper detection

5.Measuring Condition

The “Range” in Air Transducer Catalogue is tested at below conditions:
1. natural air, no volatile gas, no steam, no dust
2. air in a relatively quiescent state, no flow
3. Temperature: between 20~25℃
4. Pressure: 1 standard atmospheric pressure
5. Environment: There is no obstacle around a certain range.
