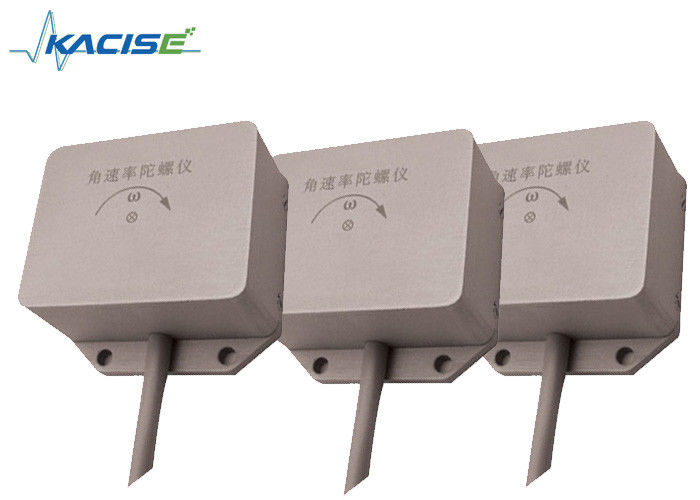

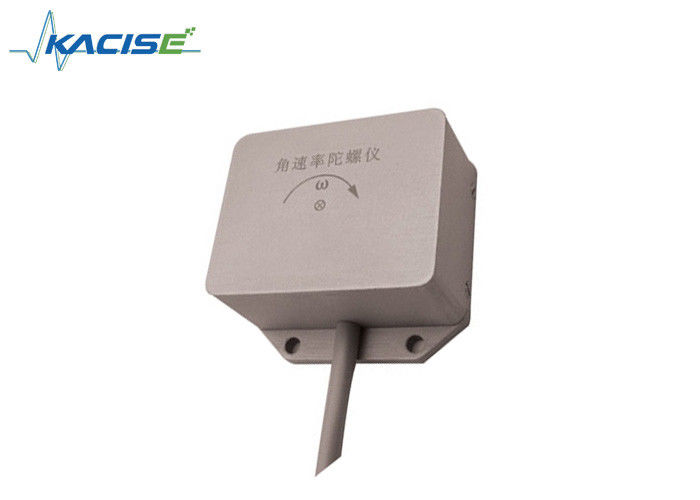

Name: 200Hz Single Axis Gyro Sensor with High Bias Stability and RS422 Output for Precision Measurement
Brand: Xi'an Kacise Optronics Co.,Ltd.
SKU: K-ARS-1500A/1500D
Price: 431.00 USD
Availability: InStock

Home > Products > Electronic Gyroscope Sensor >

200Hz Single Axis Gyro Sensor with High Bias Stability and RS422 Output for Precision Measurement

3 axis gyroscope sensor

mems gyroscope sensor

Place of Origin:

Shaanxi, China (Mainland)

Brand Name:

KACISE

Certification:

Model Number:

K-ARS-1500A/1500D

Request A Quote

200Hz Single Axis Gyro Sensor with High Bias Stability and RS422 Output for Precision Measurement

Product Details

Input Voltage:

6±0.1VDC

Input Current:

≤150mA

Output Mode:

RS422

Baud Ratebility:

115200bps

Output Data Rate:

200Hz

Output Data Format:

16-bit Twos Complement

Highlight:

3 axis gyroscope sensor

mems gyroscope sensor

Payment & Shipping Terms

Minimum Order Quantity

1 Piece/Pieces

Price

Negotiable

Packaging Details

carton or customers requests available

Delivery Time

5 working days after payment

Payment Terms

L/C,D/A,D/P,Western Union,MoneyGram

Supply Ability

1000 Piece/Pieces per Week negotiable

Light Weight Small Size High-precision Kacise Flexible Dynamically Tuned Gyroscope for Aerospace with Shock ≥50g

Get Best Price

KTG-50 High Accuracy Dynamic Tuned Gyroscope with Wide Dynamic Range and ≤250g Weight for Inertial Navigation

Get Best Price

Lightweight High Accuracy Quick Starting Electronic Gyroscope Sensor for Borehole Drilling

Get Best Price

Shock Resistance 5000g MEMS Gyroscope with RS422 Interface and DC5V Power for High-Performance Applications

Get Best Price

Contact Now

Product Description

200Hz Single Axis Gyro Sensor , Gyroscope Sensor Module High Bias Stability

Feature

Whole temperature range compensation and Nonlinear correction
High Bias stability
Digital RS422 output
Data Fusion and Noise compensation

Application fields

High-speed rotating smart shells
Multiple remote extended-range rockets

Technical Specifications

Type	K-ARS-1500A	K-ARS-1500D
Electric character
Input voltage	6±0.1VDC
Input current	≤150mA
Output Mode	RS422
Baud Rate	115200bps
Output Data Rate	200Hz
Output Data format	16-bit twos complement
Performance index
Axial direction	Z
Range	±100゜/s	±250゜/s
Broadband	≥60 Hz
Resolution (°/s)	≤0.04/s
Nonlinear (%FS)	≤0.3 %Fs
Bias	±0.2゜/s
Bias stability	≤0.015゜/s		≤0.008゜/s
Start-up time (ms)	≤0.1s
Environmental characteristics
Temperature (°C)	-40℃~+70℃
Storage Temperature	-40℃~+125℃
Resistant to shock	2000g
Physical Characteristics
Weight (g)	45g
Dimensions	45×24×21mm	47.5×39.6×29mm

Dimension (unit: mm)

200Hz Single Axis Gyro Sensor with High Bias Stability and RS422 Output for Precision Measurement 0

Application

Angle measuring instruments,
Level measurement platform,
Platform level control,
Measuring instruments and heavy mechanical stability,
Acceleration and motion measurement,
Automotive control, inertial navigation,
Seismic monitoring and other measurement systems
