Place of Origin:
Shaanxi, China (Mainland)
Brand Name:
KACISE
Certification:
CE
Model Number:
K-IMU-500

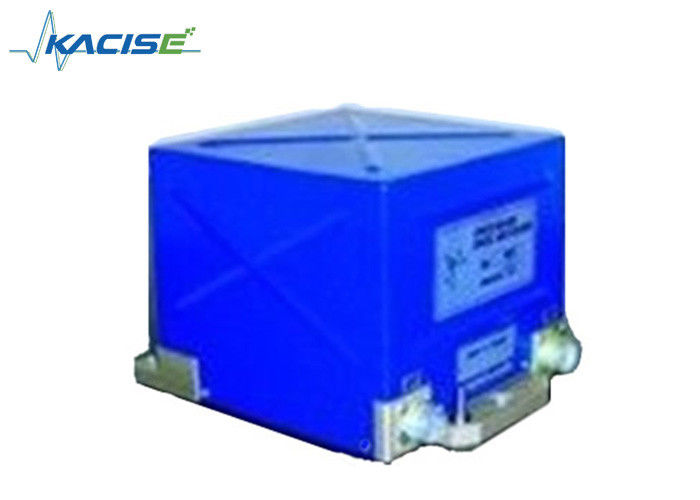

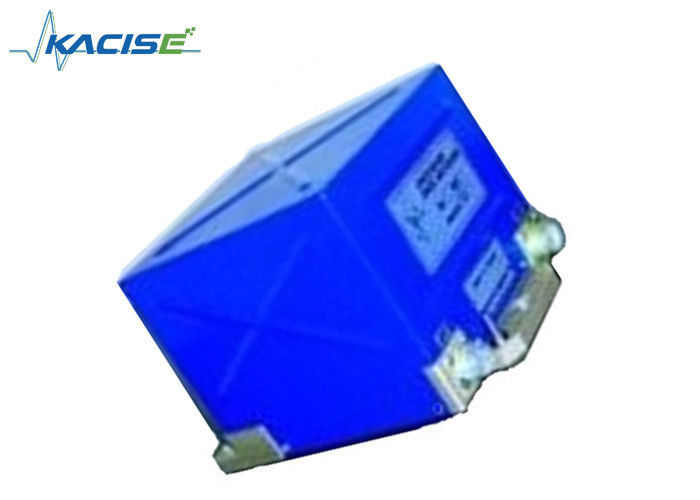

High Accuracy Small Size Long Life Span IMU-500 Inertial Measuring System
Introduction
IMU-500 is an inertial measuring system, and it is based on the Optolink TRS-500 3-axis closed loop fiber-optic gyroscope and three AT-1104 precision accelerometers. Meanwhile, IMU-500 is a solid-states closed loop fiber-optic gyroscope, having the advantage of the long lifespan, high reliability and low price after bulk order. IMU-500 is known as the smallest closed loop fiber-optic gyroscope, it is based on the Sagnac Effect. That is making the same light source broken up into 2 beams of light, and let them rendezvous when they circulate one cycle along the opposite direction in the same loop circle, and then resulting interference on the screen.
Features
☆High performance
☆Small size
☆Long life span
☆High accuracy
S Specification
| Spec. | |
| Gyroscope(TRS-500) | |
| Angular rate measurement range | ±300 deg/sec. |
| Constant temp. zero bias drift | ＜0.5 deg/hr |
| Proportional coefficient stability | 0.05%(RMS) |
| Random walk | 0.01 DEG/√h |
| Accelerometer(AT-1104) | |
| Range | ±30g |
| Bias | ＜1mg |
| Scale factor | 100mV/g |
| Noise | ＜70μg (RMS) |
| Physical properties | |
| Misalignment | ＜1.5 mrad |
| Output rate | Up to 1000Hz |
| Power | 5VDC or 24~36VDC |
| Numeric serial output | RS485 or RS422 |
| Working temp. | -30℃~+60℃ |
| String temp. | -40℃~+80℃ |
| Dimension | 110x110x90mm |
| Weight | 1.4kg |
Our Advantage
1.7*24 hours online--Efficient service, Professional answers
2.100% real photos--Detailed images, detailed description
3.After the receipt of the goods if the quality problems can be returned(Not artificial damage, Never used)
4. OEM is available; small quantities, mixed bulk orders are also welcome;
5. Payment: L/C, T/T, Paypal , Western Union, MoneyGram;
6. Delivery way: UPS, DHL, TNT, FEDEX, EMS, CHINA POST.
Xi'an Kacise Optronics Co., Ltd. was founded in 2000, is located in Xi'an, Shaanxi Province, China, is a professional engaged in instrumentation and sensors, R & D, production, sales as one of professional high-tech enterprises, we have our own production workshop and central laboratory. Factory building area is about 3000 square meters, with production of more than 30 employees, 8 engineer, 6 inspectors, 10 sale man, 5 for customer service, is this industry, we are one of the strong technology manufacturers with varieties specification.
When the company set up, we began to focus on the coordination of military supplies production, achieved GB/T19001-2008/ISQ9001:2008, GJB 9001B-2009 certification. When our company is running mature and stable, in 2008, we began to develop our business. Based on the production of military products quality control, we developed a lot of sensor products, such as a pressure sensor / transducer / sensor, level transmitter / ultrasonic level meter / ultrasonic flow meter, inertial navigation products, IMU, gyroscope, accelerometer etc.
We have the key technology and development center of advanced sensors, and we cooperation with Northwestern Polytechnical University, Xi'an Jiao Tong University and other colleges and universities.
