Product Details:
Place of Origin: China
Brand Name: KACISE
Certification: CE
Model Number: KUF2000 Series
Payment & Shipping Terms:
Minimum Order Quantity: 1 piece
Price: Negotiable
Packaging Details: one carton for one set
Delivery Time: 3-5 work days
Payment Terms: L/C, T/T, Western Union, MoneyGram
Supply Ability: 1000 sets per month
Contact Now
Detailed Product Description
Signal Output: 4-20mA, OCT Pulse, Relay Pipe Diameter: DN15~6000mm
Communication: RS485 Modbus Medium: Water, Sea Water, Waste Water, Oil, Chemicals (alcohol, Acids, Etc.), Beverage (beer, Wine, Etc.)...
Pipe Material: Steel, Stainless Steel, Cast Iron, Copper, Cement Pipe, PVC, Aluminum, Glass Steel Product, Liner Is Allowed Power Supply: DC8~36V Or AC85~265V Or Battery
High Light:

portable clamp on flow meter

,

ultrasonic flow transducer

Hydraulic Flow Meter / Flowmeter / Flowmeters / Flowmetre For Flow Control







Introduction

External clip type or pipe section type ultrasonic flow meter is based on the principle of "velocity difference method", measuring the liquid flow in the pipe. It adopts advanced multi-pulse technology, digital signal processing technology and error correction technology, so that the flow meter can adapt to the environment of the industrial site, more convenient, economic, accurate measurement. Ultrasonic flowmeter has been widely used in sewage treatment, tap water, pumping station, power station, petroleum, chemical industry, metallurgy and other fields.

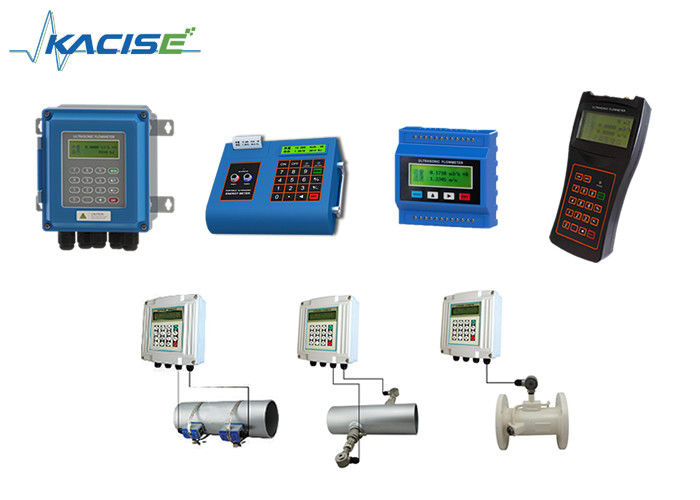

The KUF2000 series ultrasonic flowmeter is used for long-term field measurements. It has three different types of sensors to measure pipeline flow. They are: clip type, insert type and insert type. The sensor comes with a temperature sensor that compensates for flow while also measuring heat, with an optional SD card to save data.



Pipe section type ultrasonic flowmeter: need to open the pipeline installation, starting flow is small, high measurement accuracy, no pressure loss.

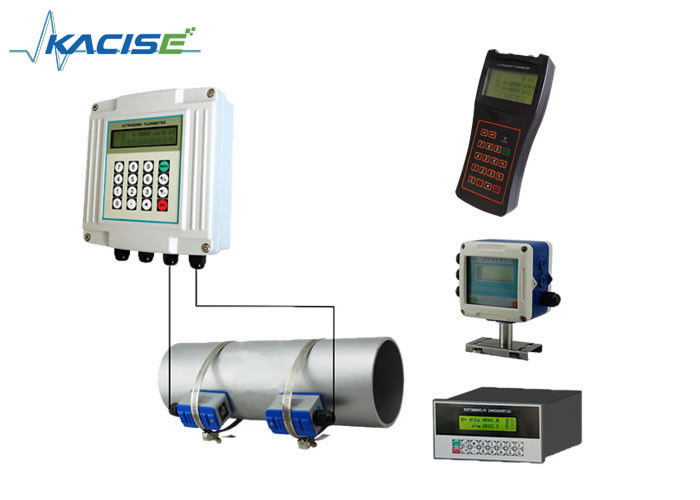

External clamp-type ultrasonic flowmeter: sensor outside the pipeline, not contact with the internal liquid, installation does not damage the pipeline, support long-term online measurement.



Insert type ultrasonic flowmeter: the pipe needs to open the installation hole, the sensor and the fluid direct contact, stable and reliable measurement.



Parameters

















Host part

Principle Ultrasonic time gap
Accuracy ±1%
Display 2×20 character LCD with backlight



Signal output

1 way 4~ 20mA output, electric resistance 0~ 1K,accuracy0. 1%
1 way OCT pulse output( Pulse width 6 ~ 1 0 0 0 ms,default is 2 0 0 ms)
1 way Relay output



Signal input

3 way 4~ 20mA input, accuracy 0. 1%,acquisition signal such as temperature, press and liquid level
Connect the temperature transducer Pt100, can finish the heat/energy measurement
Data interface Insulate RS485 serial interface, upgrade the flow meter software by computer, support the MODBUS, METER-BUS etc.
Cable

Twisted-pair cable, generally, the length under 50 meters;

Select the RS485 communication. The transmission distance can over 1000m.





Pipe Condition

Pipe material Steel, Stainless steel, Cast iron, Copper, Cement pipe, PVC, Aluminum, Glass steel product, liner is allowed.
Pipe Diameter DN15~6000mm
Straight length pipe Transducer installation should be satisfied: upstream10D, downstream 5D, 30D from the pump.





Medium

Type of Liquid Water, sea water, waste water, oil, chemicals (alcohol, acids, etc.), plant effluent and other liquids
Temperature -30~160°C
Turbidity 10000pm not so much bubbles
Flow speed 0~±10m/s
Environment Temperature Host: -20~60°C; Sensor: -30~160°C
Humidity Host: 85%RH; Flow sensor: IP68, less than 2m under water
Power supply DC8~36V or AC85~265V or Battery
Consumption

1.5W



Hydraulic Ultrasonic Flow Meter RS485 Modbus Small Size For Liquid Mesurement 0

Optional Temp. sensor



Hydraulic Ultrasonic Flow Meter RS485 Modbus Small Size For Liquid Mesurement 1



Sensor Selection



Hydraulic Ultrasonic Flow Meter RS485 Modbus Small Size For Liquid Mesurement 2



Optional Host



Hydraulic Ultrasonic Flow Meter RS485 Modbus Small Size For Liquid Mesurement 3



Ordering Infomation



Hydraulic Ultrasonic Flow Meter RS485 Modbus Small Size For Liquid Mesurement 4
