| Place of Origin: | China |
| Brand Name: | KACISE |
| Certification: | CE |
| Model Number: | KUF2000 Series |
| Minimum Order Quantity: | 1 piece |
|---|---|
| Price: | Negotiable |
| Packaging Details: | one carton for one set |
| Delivery Time: | 3-5 work days |
| Payment Terms: | L/C, T/T, Western Union, MoneyGram |
| Supply Ability: | 1000 sets per month |
| Power Supply: | DC8~36V Or AC85~265V Or Battery | Signal Output: | 4-20mA, OCT Pulse, Relay |
|---|---|---|---|
| Pipe Diameter: | DN15~6000mm | Communication: | RS485 Modbus |
| Medium: | Water, Sea Water, Waste Water, Oil, Chemicals (alcohol, Acids, Etc.), Beverage (beer, Wine, Etc.)... | Pipe Material: | Steel, Stainless Steel, Cast Iron, Copper, Cement Pipe, PVC, Aluminum, Glass Steel Product, Liner Is Allowed |
| High Light: | portable clamp on flow meter,ultrasonic flow transducer |
||
Ultrasonic Type Fuel Flow Meter / Flow Indicator / Water Flow Switch
Introduction
The ultrasonic water meter is an innovative water measuring device capable of detecting time differences resulting from changes in speed as ultrasonic beams propagate downstream and countercurrent in water. It analyzes and processes the water flow rate to further calculate the water discharge.
The KACISE KUHM2000 series ultrasonic water meter incorporates cutting-edge non-magnetic technology, offering high precision, stable operation, easy maintenance, robust corrosion resistance, long service life, an aesthetically pleasing design, safety, and affordability. It finds broad applications in industrial process measurement and control, serving as a reliable alternative to mechanical flowmeters to enhance measurement accuracy and reliability. The meter comes in three sensor types for measuring pipe flow: clamp-on type, insertion type, and inline pipe type. Additionally, it can measure heat if a temperature sensor is added. An optional SD card feature allows for the storage of a large quantity of data.
Insertion Type:
Only two installation holes required on the pipe for sensor installation.
No-stop-flow installation achieved using the hole-making tool.
Sensors directly contact the fluid, ensuring stable and reliable measurements.
Clamp On Type:
Sensors clamp onto the outside of pipes without contacting the internal liquid.
All models can function as energy meters when connected to temperature sensors.
KUF2000 Series Clamp On Ultrasonic Flowmeter allows easy installation without cutting off the pipe or water, minimizing pressure loss.
Supports long-term online measurements.
Wide range of liquid flows can be measured with the sensor clamped on the pipe.
Inline Pipe Type:
For DN15-32mm pipes, π shape inline pipe sensor is used.
For DN40 and above, standard inline pipe sensor is used.
Inline sensors offer advantages such as low starting flow rate, high measurement accuracy, and no pressure loss.
Parameters
|
Host part |
Principle | Ultrasonic time gap |
| Accuracy | ±1% | |
| Display | 2×20 character LCD with backlight | |
|
Signal output |
1 way 4~ 20mA output, electric resistance 0~ 1K,accuracy0. 1% | |
| 1 way OCT pulse output( Pulse width 6 ~ 1 0 0 0 ms,default is 2 0 0 ms) | ||
| 1 way Relay output | ||
|
Signal input |
3 way 4~ 20mA input, accuracy 0. 1%,acquisition signal such as temperature, press and liquid level | |
| Connect the temperature transducer Pt100, can finish the heat/energy measurement | ||
| Data interface | Insulate RS485 serial interface, upgrade the flow meter software by computer, support the MODBUS, METER-BUS etc. | |
| Cable |
Twisted-pair cable, generally, the length under 50 meters; Select the RS485 communication. The transmission distance can over 1000m. |
|
|
Pipe Condition |
Pipe material | Steel, Stainless steel, Cast iron, Copper, Cement pipe, PVC, Aluminum, Glass steel product, liner is allowed. |
| Pipe Diameter | DN15~6000mm | |
| Straight length pipe | Transducer installation should be satisfied: upstream10D, downstream 5D, 30D from the pump. | |
|
Medium |
Type of Liquid | Water, sea water, waste water, oil, chemicals (alcohol, acids, etc.), plant effluent and other liquids |
| Temperature | -30~160°C | |
| Turbidity | 10000pm not so much bubbles | |
| Flow speed | 0~±10m/s | |
| Environment | Temperature | Host: -20~60°C; Sensor: -30~160°C |
| Humidity | Host: 85%RH; Flow sensor: IP68, less than 2m under water | |
| Power supply | DC8~36V or AC85~265V or Battery | |
| Consumption |
1.5W |
|

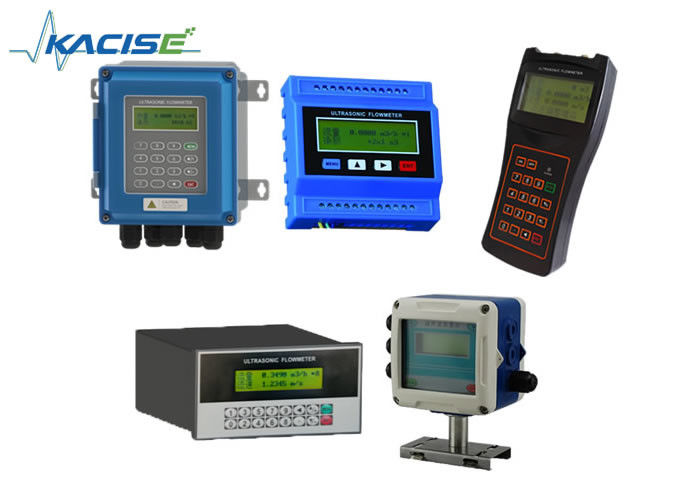

Optional Host
Sensor Selection
Optional Temp. sensor
Ordering Infomation
