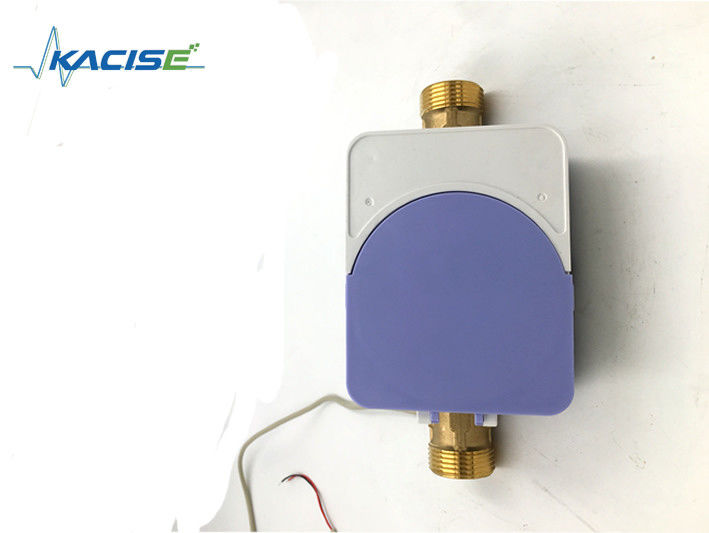

GPRS Wireless Ultrasonic Water Meter Explosion Proof DN15 - DN40 For Residence

GPRS Wireless Ultrasonic Water Meter Explosion Proof DN15 - DN40 For Residence

ultrasonic water flow meter

m bus water meter

Place of Origin:

China

Brand Name:

Kacise

Certification:

CE / ISO / Explosion-proof

Model Number:

KUHM2100

Contact Us
Request A Quote
Product Details
DN(mm):
DN15~DN40
Pressure:
1.6MPa
Connection:
DN15~DN40 Threaded
Communication:
M-bus / Impulse Output / Radio 434 / 868MHz
Range Ratio:
250 / 400 / 500
Protection:
IP68
Accuracy:
Class 2
Power Supply:
High Power Lithium Battery
Battery Life:
>10 Years
Highlight:

ultrasonic water flow meter

,

m bus water meter

Payment & Shipping Terms
Minimum Order Quantity
1
Price
Negotiable
Packaging Details
Carton / Wooden Box
Delivery Time
5~8 working days
Payment Terms
L/C, D/A, T/T, Western Union, MoneyGram
Supply Ability
1000pcs
Product Description

Lorawan 433 / 868Mhz / GPRS Wireless Ultrasonic Water Meter Or Mbus Output Water Meter For Residence











Description



It is an advanced and highly accurate ultrasonic water meter. With no moving parts, the Cube is used for measurement of cold water consumption for residential applications.

The Cube ultrasonic water measurement is based on the transit time method, and all measurements, references, readings, calculations and data communication is controlled by an advanced specially designed electronics circuit.

The Cube has no moving parts, presents an IP68 register, and with big and full information LCD, easy to read the data and see the alarms.



Specifications



Parameter Unit Data value
Nominal Diameter   DN 15                     DN20                     DN25

Start flow rate M3/h 0.002                      0.002                      0.005
Qmin (Q1) M3/h 0.010                      0.010                      0.016
QTransitional (Q2) M3/h 0.016                      0.016                      0.025
Qmax/permanent (Q3) M3/h 2.5                          2.5                          4.0
Qoverload(Q4)   3.125                      3.125                      5.0
Range ratio=Q3/Q1   250                         250                         250
Metrology accuracy   2 class                    2 class                    2 class
Q1~Q2 error   <3%                        <3%                        <3%
Q2~Q4 error   2%                           2%                          2%
Max working pressure MPa 1.6MPa                   1.6MPa                   1.6MPa
Pressure loss KPa <25                          <25                         <25
Temperature 4℃-65℃                  4℃-65℃                 4℃-65℃
humidity range %RH <95                          <95                          <95
Channel length mm 165mm                    195mm                    215mm
Maximum registration (LCD) M3 99999.999
Min instant-flow reading (LCD) M3/h 0.001
Max instant-flow reading (LCD) M3/h 9.999
Battery
Battery type   Lithium
Battery life Year >10
Smart function
Communication   M-bus/Impulse output/868 LoRa
Temperature compensation   YES
Mechanics
Channel material   Brass body
Water & dust proof   IP68
Thread pattern mm 33*2.309 33*2.309 33*2.309

GPRS Wireless Ultrasonic Water Meter Explosion Proof DN15 - DN40 For Residence 0

Dimensions



GPRS Wireless Ultrasonic Water Meter Explosion Proof DN15 - DN40 For Residence 1






Communication Way:Mbus (CJ188),

RS-485, RS232, IR (optical),

Customized extension: FM, GPRS, LoRa, etc. wireless.

GPRS Wireless Ultrasonic Water Meter Explosion Proof DN15 - DN40 For Residence 3
