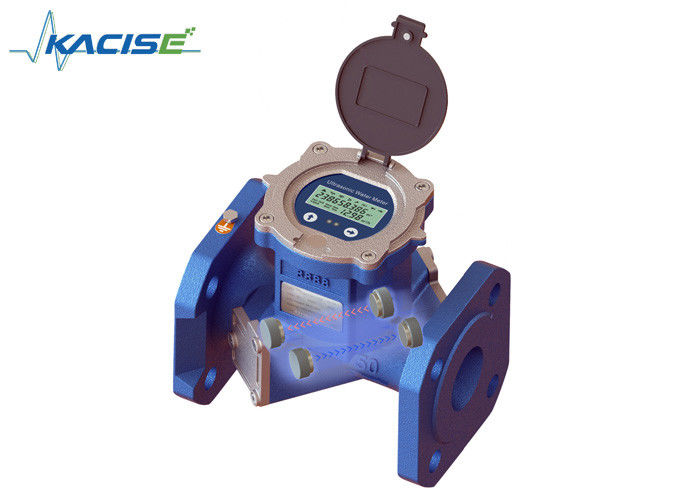

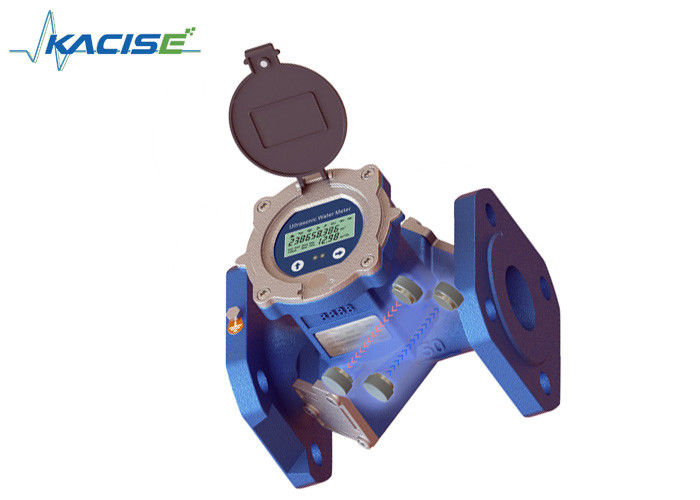

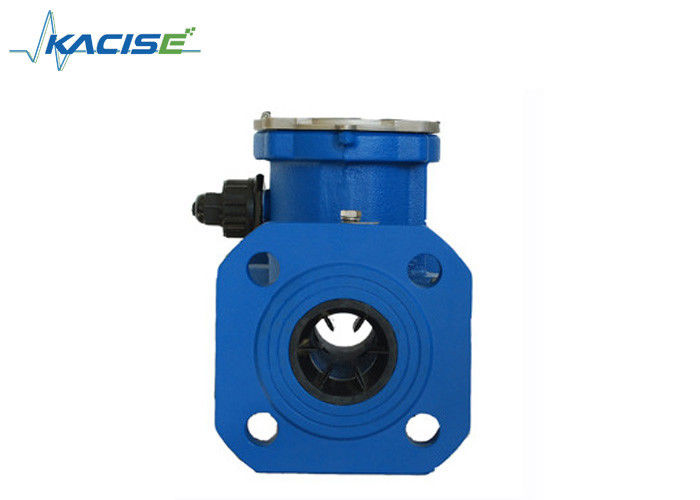

MODBUS Wireless Double Channel Ultrasonic Water Meter with IP68 Protection for Industrial Applications

The Dual Channel ultrasonic water meter is developed in accordance with China's national water meter standard GBT 778.1-2007, the international standard ISO - 4064 - meter and 05, and other relevant standards. It is a battery-powered large-diameter double-track ultrasonic water meter.

The water meter utilizes the latest ultrasonic transmission phase and time difference measurement technology, offering high precision, low power consumption, and a wide measuring range.
Stable and reliable performance is a notable characteristic of this water meter.
The IP68-rated structure ensures that each part achieves IP68 protection, allowing the instrument to operate for an extended period even when submerged in water.

The water meter addresses issues like traditional meter idling and small flow rate measurement.
It finds extensive use in urban water supply pipelines, total household water measurement, water monitoring for farmland irrigation, and various industrial applications.

1. Pipeline design for fluid layered double track measurement, measurement is accurate.
2. Range than wide, and less than 0.01 m/s pick up traffic.
3. Shows that large amount of information, with screen display 9 digits cumulative flow and four digital instantaneous flow rate.
4. Design concept and energy saving, such as air or fluid static state for a long time under the instrument will automatic power saving function.
5. IP68 protection grade design, all parts completely sealed protection, even water can work for a long time.
6. Design on the time of year, month, day have a cumulative record and collect data function.
7. Has a variety of modes of communication interface; TTL level pulse output and USART interfaces, convenient connection other low-power devices; Standard RS485 interface; Infrared communication interface; Support CJ - 188 communication protocol.
8. Support the standard MODBUS, M - BUS, HART communication protocol, communication protocol of compatible haifeng ASC Ⅱ yards.
9. Output signal in a variety of ways: isolation of the pulse signal output available two road, (including pulse equivalent and programmable pulse width); Can two wire system 4-20 ma output.
10. With functions of software update online.
11. Has the dual PT1000 temperature measurement function, can realize heat metering.
12. Built-in quantitative controllers, can achieve manually or set the time automatically start controller, and then realize automatic timing quantitative water or irrigation.
13. According to the different needs of customers with a variety of system selection, including cubic meters and us gallon, cubic feet, and litres.
14. Built-in lithium battery, six years of battery life

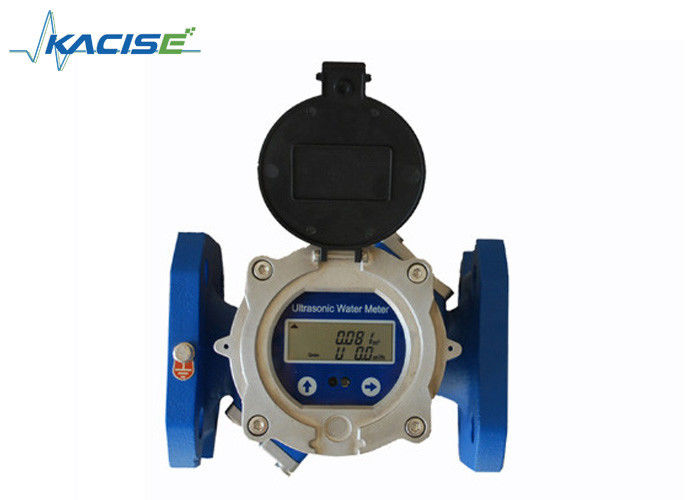

Display the instantaneous flow , accumulative flow,time and various kinds of working status

Can measure instantaneous flow and accumulative flow under the forward and backward direction separately

Accumulative flow:M3,ft3,GAL,L

Instantaneous flow: M3/H, GPM, L/m

Easy for operation with finger

Support CJ-188 communication, support the M-BUS and MODBUS communication and support upgrade software

1. Your inquiry will be replied in 24hours.
2. Well-trained and experienced staffs to answer all your enquires in fluent English.
3. OEM&ODM, we can help you to design and your request will be put into product.
4. Distributorship are offered for your unique design and some our current models.
5. Protection of your sales area, ideas of design and all your private information.
6. Discounts are offered based on order quantities.
7. We provide paid repair services for meter damages not arising from manufacturing quality issues or meter damages not within the scope of warranty.

KACISE designs and manufactures a full line of high accurated ultrasonic flow meters, ultrasonic water meters and ultrasonic heat meters. An innovator in ultrasonic flow measurement and control products, Measuring water, oil, chemicals and other fluids. KACISE products are well known for accuracy, long-lasting durability and for providing valuable and timely measurement data.
