|Place of Origin:||China|
|Minimum Order Quantity:||1 Piece/Pieces|
|Packaging Details:||Carton / Wooden Box|
|Delivery Time:||5~8 working days|
|Payment Terms:||L/C, D/A, T/T, Western Union, MoneyGram|
|Pressure Grade:||1.6MPa/2.5MPa Optional||Pipe Material:||Steel, Stainless Steel, Cast Iron, Copper, PVC, Aluminmum, Glass Steel, Etc. Liner Is Allowed.|
|Type Of Liquid:||Water, Sea Water, Sewage, Other Liquid Need To Be Customized.||Communication Interface:||RS485/USART/infrared|
ultrasonic btu meter,
m bus water meter
RS485 Communication Ultrasonic Pipe Line Digital Water Flow Meter
1. Pipeline design for fluid layered double track measurement, measurement is accurate.
2. Range than wide, and less than 0.01 m/s pick up traffic.
3. Shows that large amount of information, with screen display 9 digits cumulative flow and four digital instantaneous flow rate.
4. Design concept and energy saving, such as air or fluid static state for a long time under the instrument will automatic power saving function.
5. IP68 protection grade design, all parts completely sealed protection, even water can work for a long time.
6. Design on the time of year, month, day have a cumulative record and collect data function.
7. Has a variety of modes of communication interface; TTL level pulse output and USART interfaces, convenient connection other low-power devices; Standard RS485 interface; Infrared communication interface; Support CJ - 188 communication protocol.
8. Support the standard MODBUS, M - BUS, HART communication protocol, communication protocol of compatible haifeng ASC Ⅱ yards.
9. Output signal in a variety of ways: isolation of the pulse signal output available two road, (including pulse equivalent and programmable pulse width); Can two wire system 4-20 ma output.
10. With functions of software update online.
11. Has the dual PT1000 temperature measurement function, can realize heat metering.
12. Built-in quantitative controllers, can achieve manually or set the time automatically start controller, and then realize automatic timing quantitative water or irrigation.
13. According to the different needs of customers with a variety of system selection, including cubic meters and us gallon, cubic feet, and litres.
14. Built-in lithium battery, six years of battery life

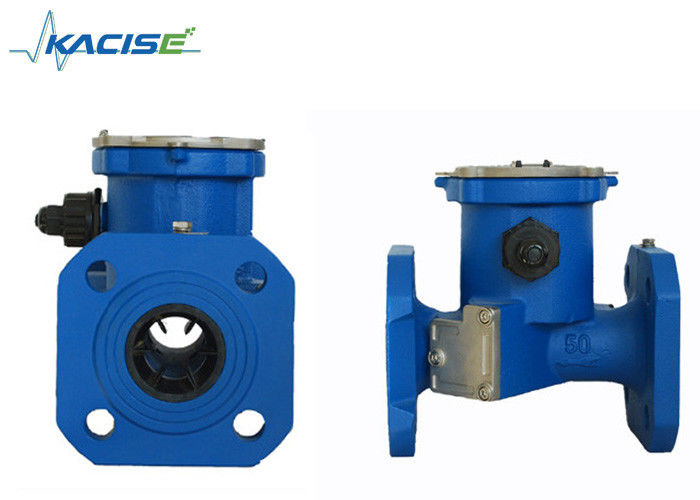

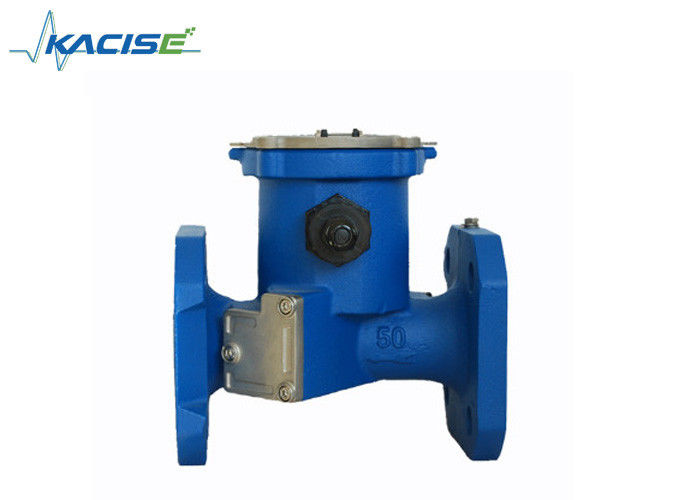

KUW-3000B ultrasonic water meter can be precise and super reliable measurement ultrasonic water, and according to ISO-4064 GBT778 standard. The water meter be adapted by advanced transit-time measurement technology, with the remarkable features of low power consumption, wide measuring range ratio, stable and reliable measurement. Each components take the IP68 protection class, to ensure long term operation though water in the inside meter.
Widely used in the urban water supply, water resources management, irrigation, landscape management, industrial production industry.

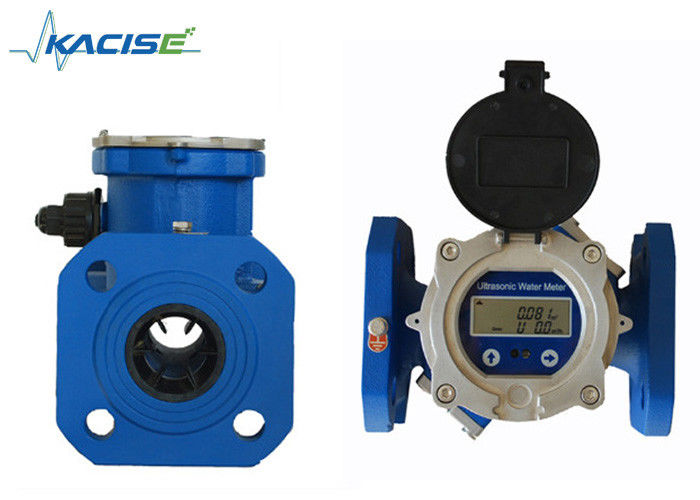

Display and Operation
Display the instantaneous flow , accumulative flow,time and various kinds of working status
Support Bi-directional Flow Measurement
Can measure instantaneous flow and accumulative flow under the forward and backward direction separately
Various of Units Selected
Instantaneous flow: M3/H, GPM, L/m
Smart Touch Key
Easy for operation with finger
Infrared Communication interface
Support CJ-188 communication, support the M-BUS and MODBUS communication and support upgrade software
Water, sewage, seawater(other liquid need to customized)
liquid should be full of pipeline
|Medium Temperature||0.1~30 ℃|
|Working Environment||Temperature: -10~45 ℃; Humidity ≤100%(RH)|
|Working Pressure||1.6MPa(2.5MPa optional)|
|The sensitivity of upstream||U3|
|THe sensitivity of downstream||D0|
|Climatic and mechanical||C Class|
|Electromagnetic compatibility class||E2 Class|
|Output Signal||2 way OCT pulse output/TTL pulse output/One way 4~20mA output|
|Power supply||Built-in Lithium battery(3.6,19AhV)/DC8~36V power supply|
|Protection Class||IP68, can work 2 meters under water|
Multi line 9 digital accumulative flow,
4 digital display for instantaneous flow, varies of state prompt and units.
|Data Storage||EEPROM/FLASH, automatically record the accumulative flow of last 512 days|
|Measurement cycle||Measuring: 1 times/second; Verification: 4 times/second|
|Power Consumption||10 years battery life|
Packing & Delivery
1. Discounts are offered based on order quantities.
2. Well-trained and experienced staffs to answer all your enquires in fluent English.
3. OEM&ODM, we can help you to design and your request will be put into product.
4. Distributorship are offered for your unique design and some our current models.
5. Protection of your sales area, ideas of design and all your private information.
6. Your inquiry will be replied in 24hours.
7. We provide paid repair services for meter damages not arising from manufacturing quality issues or meter damages not within the scope of warranty.
KACISE designs and manufactures a full line of high accurated ultrasonic flow meters, ultrasonic water meters and ultrasonic heat meters. An innovator in ultrasonic flow measurement and control products, Measuring water, oil, chemicals and other fluids. KACISE products are well known for accuracy, long-lasting durability and for providing valuable and timely measurement data.
