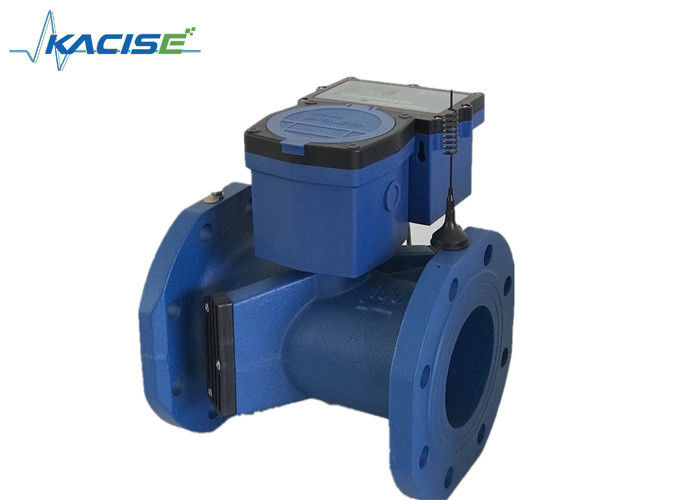

Battery Powered Electronic Ultrasonic Water Meter IP68 Waterproof High Precision

Battery Powered Electronic Ultrasonic Water Meter IP68 Waterproof High Precision

  • Battery Powered Electronic Ultrasonic Water Meter IP68 Waterproof High Precision
  • Battery Powered Electronic Ultrasonic Water Meter IP68 Waterproof High Precision
  • Battery Powered Electronic Ultrasonic Water Meter IP68 Waterproof High Precision
Battery Powered Electronic Ultrasonic Water Meter IP68 Waterproof High Precision
Product Details:
Place of Origin: China
Brand Name: KACISE
Model Number: KUW3000-B
Payment & Shipping Terms:
Minimum Order Quantity: 1 Piece/Pieces
Price: Negotiable
Packaging Details: Carton / Wooden Box
Delivery Time: 5~8 working days
Payment Terms: L/C, D/A, T/T, Western Union, MoneyGram
Supply Ability: 1000pcs
Contact Now
Detailed Product Description
DN(mm): DN15~DN300 Accuracy: 0.2%(Measuring Period:1s)
Pressure Grade: 1.6MPa/2.5MPa Optional Type Of Liquid: Water, Sea Water, Sewage, Other Liquid Need To Be Customized.
Pipe Material: Steel, Stainless Steel, Cast Iron, Copper, PVC, Aluminmum, Glass Steel, Etc. Liner Is Allowed Communication Interface: RS485/USART/infrared
High Light:

ultrasonic btu meter


m bus water meter

IP68 Waterproof Battery Powered Ultrasonic Electronic Water Meter




The KUW-3000B series is specially designed for urban water supply and building-use according to the GBT 778.1-2007,ISO-4064,JJG162-2009 standard.
The conventional water meters suffer from the drawbacks that they are only operable at a higher flow rate and are insensitive to a small flow rate. However, the water meter can help tackle the bottleneck. And the meter is highly adaptable to diversified industrial conditions.
The water meter be adapted by the company’s newly-developed unique advanced transit-time measurement technology , with the remarkable features of low power consumption, wide measuring range ratio, stable and reliable measurement.
In the structure, the components take the IP68 program, that is, each component is of an IP68 protection level, to ensure long time operation though water in the inside meter.The wireless power and various communication interface can be matched to the meter to achieve remote meter reading.
This series of water meter’s production process is automatic or semi-automatic, including automatic detection of circuit boards, the automation of the circuit board’s high-low temperature test machine, the automation of potting and calibration process, ensuring that every machines out of the factory are qualified.




1.  Range than wide, and less than 0.01 m/s pick up traffic.

2. Pipeline design for fluid layered double track measurement, measurement is accurate.

3. Shows that large amount of information, with screen display 9 digits cumulative flow and four digital instantaneous flow rate.

4.  Design concept and energy saving, such as air or fluid static state for a long time under the instrument will automatic power saving function.

5. IP68 protection grade design, all parts completely sealed protection, even water can work for a long time.

6. Design on the time of year, month, day have a cumulative record and collect data function.

7. Has a variety of modes of communication interface; TTL level pulse output and USART interfaces, convenient connection other low-power devices; Standard RS485 interface; Infrared communication interface; Support CJ - 188 communication protocol.

8.  Support the standard MODBUS, M - BUS, HART communication protocol, communication protocol of compatible haifeng ASC Ⅱ yards.

9. Output signal in a variety of ways: isolation of the pulse signal output available two road, (including pulse equivalent and programmable pulse width); Can two wire system 4-20 ma output.

10.  With functions of software update online.

11. Has the dual PT1000 temperature measurement function, can realize heat metering.

12. Built-in quantitative controllers, can achieve manually or set the time automatically start controller, and then realize automatic timing quantitative water or irrigation.

13.  According to the different needs of customers with a variety of system selection, including cubic meters and us gallon, cubic feet, and litres.

14.  Built-in lithium battery, six years of battery life


Battery Powered Electronic Ultrasonic Water Meter IP68 Waterproof High Precision 0


Display and Operation


58*22mm LCD


Display the instantaneous flow , accumulative flow,time and various kinds of working status


Support Bi-directional Flow Measurement


Can measure instantaneous flow and accumulative flow under the forward and backward direction separately


Various of Units Selected


Accumulative flow:M3,ft3,GAL,L

Instantaneous flow: M3/H, GPM, L/m


Smart Touch Key


Easy for operation with finger


Infrared Communication interface


Support CJ-188 communication, support the M-BUS and MODBUS communication and support upgrade software

Battery Powered Electronic Ultrasonic Water Meter IP68 Waterproof High Precision 1




Item Specification
Standard ISO4064-2005, GBT778-2007
Measurement Liquid

Water, sewage, seawater(other liquid need to customized)

liquid should be full of pipeline

Medium Temperature 0.1~30
Working Environment Temperature: -10~45 ℃; Humidity 100%(RH)
Working Pressure 1.6MPa(2.5MPa optional)
The sensitivity of upstream U3
THe sensitivity of downstream D0
Climatic and mechanical C Class
Electromagnetic compatibility class E2 Class
Communication Interface RS485/USART/Infrared
Output Signal 2 way OCT pulse output/TTL pulse output/One way 4~20mA output
Power supply Built-in Lithium battery(3.6,19AhV)/DC8~36V power supply
Protection Class IP68, can work 2 meters under water
Digital Display

Multi line 9 digital accumulative flow,

4 digital display for instantaneous flow, varies of state prompt and units.

Data Storage EEPROM/FLASH, automatically record the accumulative flow of last 512 days
Measurement cycle Measuring: 1 times/second; Verification: 4 times/second
Power Consumption 2.7AH/year, 6 years battery life


Flow Range




R Flow(m3/h)















DN15 200 0.003 0.0125 0.020 2.500 3.125
DN20 200 0.0035 0.016 0.026 3.200 4.000
DN25 200 0.007 0.020 0.032 4.000 5.000
DN32 200 0.010 0.032 0.050 6.300 7.875
DN40 200 0.015 0.100 0.160 20.000 25.000
DN50 100 0.030 0.400 0.640 40.000 50.000
DN65 100 0.059 0.630 1.008 63.000 78.750
DN80 100 0.064 1.000 1.600 100.000 125.000
DN100 100 0.094 1.600 2.560 160.000 200.000
DN125 100 0.120 2.000 3.200 200.000 250.000
DN150 100 0.270 2.500 4.000 250.000 312.500
DN200 100 0.315 4.000 6.400 400.000 500.000
DN250 100 0.508 4.000 6.400 400.000 500.000
DN300 100 0.770 6.300 10.080 630.000 787.500


Products Pictures


Battery Powered Electronic Ultrasonic Water Meter IP68 Waterproof High Precision 2


Packing & Delivery


Battery Powered Electronic Ultrasonic Water Meter IP68 Waterproof High Precision 3




1,Your inquiry will be replied in 24hours.

2,Well-trained and experienced staffs to answer all your enquires in fluent English.

3,OEM&ODM, we can help you to design and your request will be put into product.

4,Distributorship are offered for your unique design and some our current models.

5,Protection of your sales area, ideas of design and all your private information.

6,Discounts are offered based on order quantities.

7,We provide paid repair services for meter damages not arising from manufacturing quality issues or meter damages not within the scope of warranty.


KACISE designs and manufactures a full line of high accurated ultrasonic flow meters, ultrasonic water meters and ultrasonic heat meters. An innovator in ultrasonic flow measurement and control products, Measuring water, oil, chemicals and other fluids. KACISE products are well known for accuracy, long-lasting durability and for providing valuable and timely measurement data.
