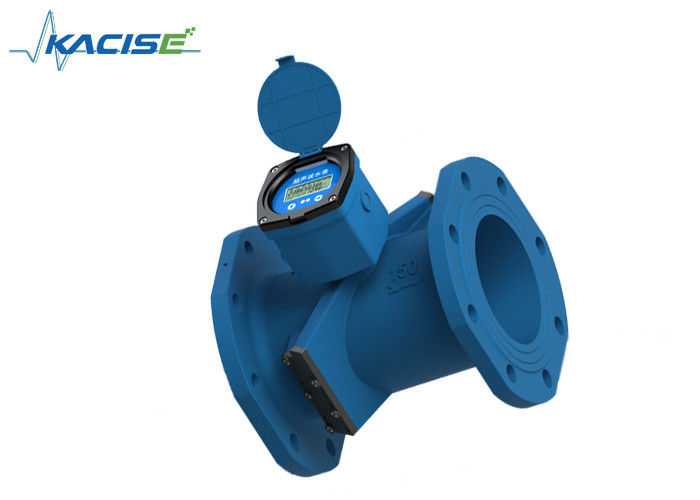

DN15-DN300 Ultrasonic Water Flow Meter with IP68 Protection and 0.2% Accuracy for Agricultural Irrigation

Ultrasonic flowmeter is a kind of non-contact instrument, it can be used to measure the medium flow of large diameter and can be used to measure the medium that is not easy to contact and observe. Its measuring accuracy is very high, the highest clamp installation can also reach the accuracy of ±0.5%, almost free from the interference of various parameters of the measured medium, especially can solve the other meters can not be strong corrosive, non-conductive, radioactive and inflammable and explosive media flow measurement problems.

Dual-channel design, reliable and stable measurement.
High accuracy within ±1%
Based on GPRS and RF design, multiple signal output, achieving remote monitoring.
Achieve heat measurement by connecting heat transducers GXPS100.

Ultrasonic flowmeter can be used to measure the flow rate of chemical liquids, water, oil and other liquids, application scenarios are generally chemical factories, sewage treatment plants, water plants, steel mills, food processing plants, cleaning machines, kitchens, domestic water and so on. As long as liquid flow is used, and there is a need to know the flow data of the pipeline, need to use the flowmeter.

1. Range than wide, and less than 0.01 m/s pick up traffic.
2. Pipeline design for fluid layered double track measurement, measurement is accurate.
3. Shows that large amount of information, with screen display 9 digits cumulative flow and four digital instantaneous flow rate.
4. Design concept and energy saving, such as air or fluid static state for a long time under the instrument will automatic power saving function.
5. IP68 protection grade design, all parts completely sealed protection, even water can work for a long time.
6. Design on the time of year, month, day have a cumulative record and collect data function.
7. Has a variety of modes of communication interface; TTL level pulse output and USART interfaces, convenient connection other low-power devices; Standard RS485 interface; Infrared communication interface; Support CJ - 188 communication protocol.
8. Support the standard MODBUS, M - BUS, HART communication protocol, communication protocol of compatible haifeng ASC Ⅱ yards.
9. Output signal in a variety of ways: isolation of the pulse signal output available two road, (including pulse equivalent and programmable pulse width); Can two wire system 4-20 ma output.

1. Your inquiry will be replied in 24hours.
2. Well-trained and experienced staffs to answer all your enquires in fluent English.
3. OEM&ODM, we can help you to design and your request will be put into product.
4. Distributorship are offered for your unique design and some our current models.
5. Protection of your sales area, ideas of design and all your private information.
6. Discounts are offered based on order quantities.
7. We provide paid repair services for meter damages not arising from manufacturing quality issues or meter damages not within the scope of warranty.

KACISE designs and manufactures a full line of high accurated ultrasonic flow meters, ultrasonic water meters and ultrasonic heat meters. An innovator in ultrasonic flow measurement and control products, Measuring water, oil, chemicals and other fluids. KACISE products are well known for accuracy, long-lasting durability and for providing valuable and timely measurement data.
