Place of Origin:
China
Brand Name:
Kacise
Certification:
CE
Model Number:
GXPS540

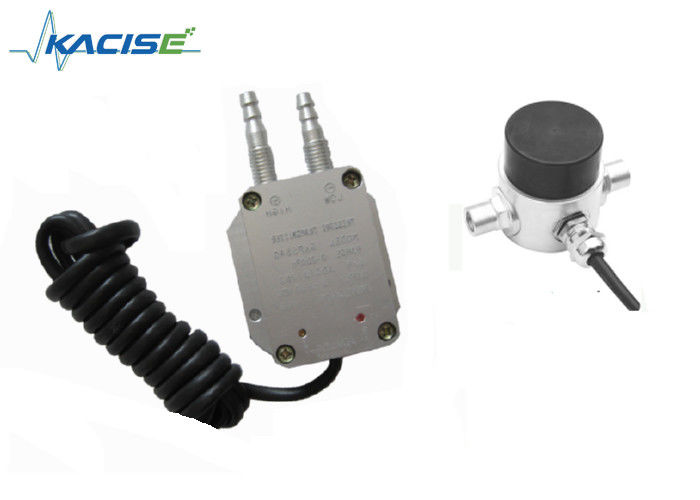

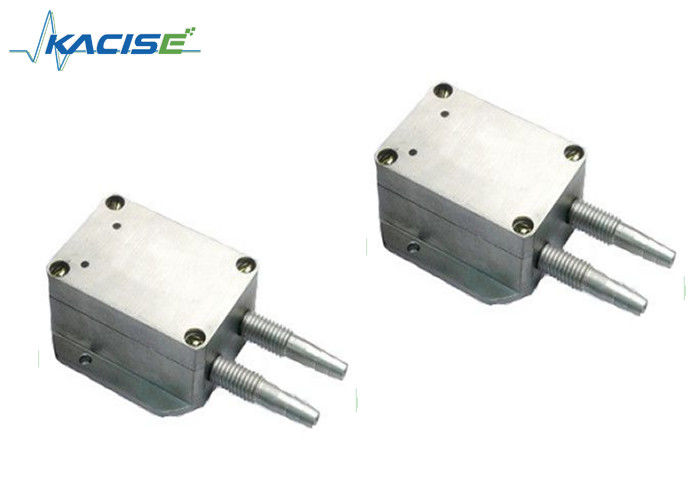

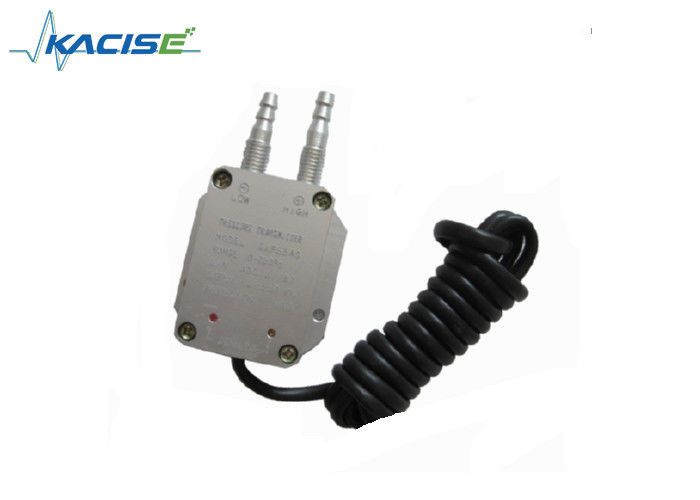

GXPS540 Wind Pressure Differential Pressure Transmitter adopts high-precision, high stability diaphragm and is assembled by stress isolation technics. By strict precision temperature compensation and signal amplification, transfer micro differential pressure, air pressure, flow and other parameters to reliable 4~20mA or 1~5V signal output.
Feature
Electronic interface and signals definition
Parameter
| Spec. | Value | ||
| Pressure range | ±5kPa……±10000kPa | ||
| Overload pressure | 1.5time nominal pressure | ||
| Pipeline pressing | 3,5,10 times nominal pressure | ||
| Accuracy | ±0.25%F.S, ±0.5%F.S | ||
| Stability | Typical value 0.25%F.S, Max.: 0.5%F.S | ||
| Operating temperature | －40℃~85℃ (OEM－40℃~120℃) | ||
| Compensated Temperature Range | －10℃~70℃ | ||
| Medium | All Caustic Medium Compatible with 1Cr18Ni9Ti or brass | ||
| Electrical properties | 2 wire system | 3 wire system | |
| Output signal | 4~20mA | 0~5V | 0~10V |
| Power supply | 10~30Vdc | 8~30Vdc/ac | 11~30Vdc/ac |
| load resistance | (U-10)/0.02(Ω) | ＞100kΩ | |
| Min. isolation between case & terminations | ＞100M Ω@50V | ||
| surge immunity | ＞500Vac@60 second | ||
| Shock and vibration | 10g/5~2000Hz, axes X/Y/Z20g sine 11ms | ||
| Pressure durable | 2×106 Pressure circle @25℃ | ||
| Electrical Connections | Waterproof cable, 1.5meter length, IP65 | ||
| Pressure port | Inner and outer G1/4, inner and outer NPT1/4, | ||
| Response time | 10ms | ||
| Pressure type | differential pressure | ||
| Certificate | insulation explosion proof, CE | ||
| EMI/ EMC | EMI: EN50081-1/-2; EMC: EN50082- | ||
Dimension
There are 2 adjustable slot type screws on the GXPS540.
Z is for zero adjustment.
S is for Full range adjustment. (If the range is not changed, no need to be adjusted.)
Note: If the range is <1KPa, the placement may affect the zero point. Please adjust Z after the installation.
Application
Ordering information
GX- -Range-Output-Accuracy-Power-Structure-Cable length-Package
