Product Description

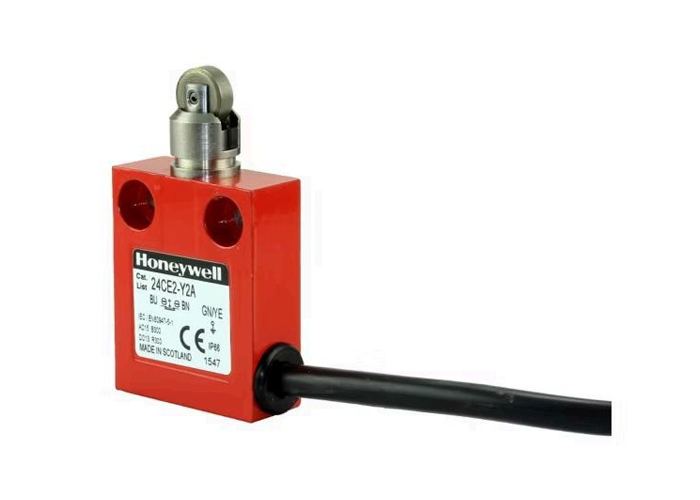

Honeywell 24CE Series Miniature Safety Switches

Honeywell's 24CE Series miniature electromechanical safety switches feature a rugged metal housing with positive opening normally closed contacts to EN/IEC 60947-5-1-3 specifications. Their compact size makes them ideal for applications where space is limited on machinery.

Key Features

Compact metal housing with 25.4 mm [1.0 in] center-to-center mounting
Positive opening operation of normally closed contacts to EN/IEC 60947-5-1 specification
Evaluated for safety functions up to SIL3 level (IEC 61508-2:2010)
Three circuit options: 1NC/1NO BBM, 1NC/1NO MBB, and 1NC
Wide range of actuator heads and levers
Gang mounting capability for multiple-pole applications
CE and UKCA approvals
IP66 environmental sealing
Operating range: 0°C to 70°C [32°F to 158°F] (standard) or -40°C to 70°C [-40°F to 158°F] (optional)

Applications

Industrial

Machine tools (small doors and apertures)
Material handling equipment
Packaging machinery
Trailer/truck restraint systems (dock-loks)

Transportation

Small construction machinery

Customer Benefits

Miniature rugged design with common 25.4 mm mounting footprint
Easy gang mounting for multi-pole capability
Low temperature option available (-40°C [-40°F])
Long mechanical life up to 10 million operations

Product Differentiation

Compact dimensions: 40 mm L × 16 mm W × 49 mm H [1.58 in × 0.63 in × 1.93 in]
Positive opening normally closed contacts with optional normally open contact
SIL3 safety capability evaluation

Technical Specifications

Characteristic	Parameter
Description	Miniature safety electromechanical switch
Certifications	CE, UKCA, IEC/EN 60947-5-1
Housing material	Epoxy coated die-cast zinc
Actuators	Multiple options including pin plunger, roller plunger (parallel/perpendicular), rotary, and ball-bearing plunger variants
Terminations	3-core or 5-core harmonised Cenelec cable
Contact options	1NC/1NO BBM, 1NC/1NO MBB, 1NC (all normally closed contacts are positive opening)
Contact type	Slow action
Contact material	Silver alloy (gold-plated optional)
Utilization category	AC15, B300: DC13, R300
Rated operational voltage (Ue)	240 V ac or dc
Rated operational current	1.5 A, 0.1 A
Rated thermal current (Ith)	10 A
Rated impulse withstand (Uimp)	2500 V
Maximum fuse rating	10 A
Environmental sealing	IP66
Operating temperature	Standard: 0°C to 70°C [32°F to 158°F] Optional: -40°C to 70°C [-40°F to 158°F]
Mechanical life (MCTF)	>1,000,000 cycles
Electrical life (MCTF)	>25,000 cycles
SIL Capability	Up to SIL3 (HFT1), IEC 61508-2
Proof test interval	1 year

Electrical Ratings (EN/IEC 60947-5-1)

AC			DC
B300		AC15	R300		DC13
UE (Volts)	IE (Amps)	VA Rating	UE (Volts)	IE (Amps)	VA Rating
120	3	3600 (Make) 360 (Break)	125	0.22	28 (Make/Break)
240	1.5	3600 (Make) 360 (Break)	250	0.1	28 (Make/Break)

Available Models

Part Number	Description
24CE31-T2	SAFETY LIMIT SWITCH - ENCLOSED
24CE31-Y5	ENCLOSED BASIC SWITCH
