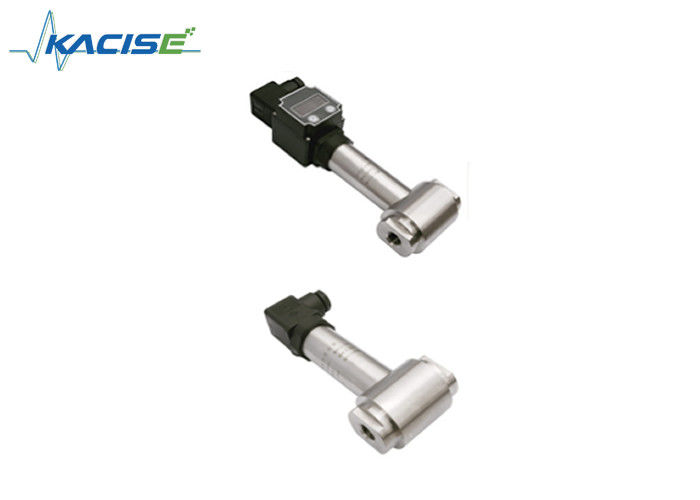

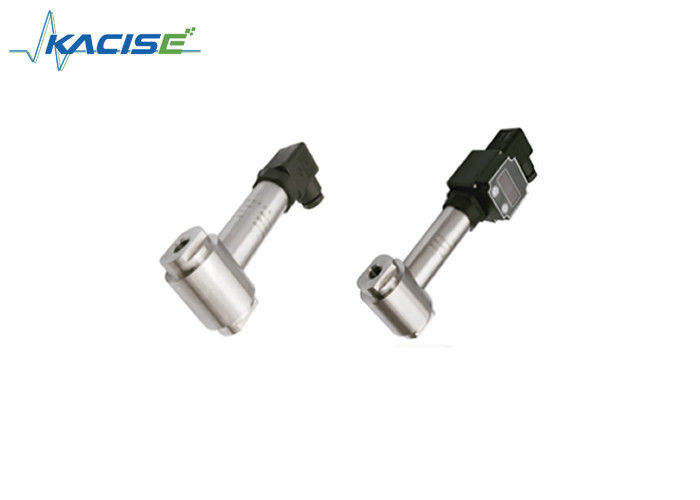

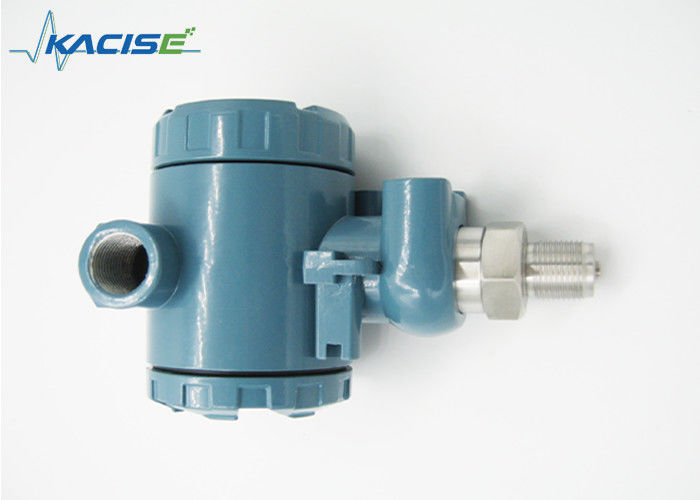

Accurate Differential Pressure Transmitter , Differential Pressure Sensor

Accurate Differential Pressure Transmitter , Differential Pressure Sensor

  • Accurate Differential Pressure Transmitter , Differential Pressure Sensor
  • Accurate Differential Pressure Transmitter , Differential Pressure Sensor
  • Accurate Differential Pressure Transmitter , Differential Pressure Sensor
  • Accurate Differential Pressure Transmitter , Differential Pressure Sensor
Accurate Differential Pressure Transmitter , Differential Pressure Sensor
Product Details:
Place of Origin: China
Brand Name: Kacise
Certification: CE
Model Number: GXPS500
Payment & Shipping Terms:
Minimum Order Quantity: 1
Packaging Details: normal
Payment Terms: D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 10000 per week
Contact Now
Detailed Product Description
Pressure Range: ±5kPa……±10000kPa Pipeline Pressing: 3，5，10 Times Nominal Pressure
Stability: Typical Value 0.25%F.S, Max.: 0.5%F.S Compensated Temperature Range: －10℃~70℃
Electrical Connections: Waterproof Cable, 1.5meter Length, IP65 Pressure Type: Differential Pressure
High Light:

piezoresistive pressure transmitter

,

explosion proof pressure transmitter

GXPs500  4~20mA and 0-10V Output  Differential Pressure Sensors for  Groundwater monitoring



Feature


  • Accuracy: ±0.25,±0.5%F.S
  • Diffused-Silicon oil-filled core
  • Multiple pressure range and output signal
  • Display and output node available
  • Various screw connection
  • Non polarity 2 line current output
  • AC,DC voltage output
  • Intrinsically safe mode , isolation explosion protection, CE




Electronic interface and signals definition

Accurate Differential Pressure Transmitter , Differential Pressure Sensor 0Accurate Differential Pressure Transmitter , Differential Pressure Sensor 1


Parameter



Spec. Value
Pressure range 0~±5kPa……±5000kPa
Load pressure 1.5 times nominal value
pipeline Isostatic pressing 3, 5, 10 times nominal value 20MPa
Accuracy ±0.25%F.S, ±0.5%F.S
Stability Typical value 0.1%F.S, Max. value: 0.2%F.S
Operating temperature -40°C~85°C
Compensation temperature -10 °C~70 °C
Medium compatibility All Caustic Medium Compatible with 1Cr18Ni9Ti & 316L
Electrical properties two-wire system Three-wire system
Output signal 4~20mA 0/1~5V 0~10V
Power supply 10~30Vdc 8~36Vdc/ac 11~30Vdc/ac
Load resistance (U-10)/0.02(Ω) >100kΩ
Min. isolation between case & terminations >100M Ω@50V
Electric Strength 500V@60 second
vibration/Impact 10g/5~2000Hz, axes X/Y/Z20g sine 11ms
Seal grade Waterproof cable, Protection grade IP68; DIN43650, IP65
Response time 10ms
Pressure durable 2×106 pressure circle @25 °C
EMI/ EMC EMI: EN50081-1/-2; EMC: EN50082-2
lightning protection Air conduction resistance 8000V, outer casing, cable conduction resistance 4000V


Application



  • The city flood protection and water logging drainage project
  • Air supply system for cogeneration plant
  • Ventilation system testing for under pit
  • Hydropower station ‘s water-head
  • Underwater engineering
  • Groundwater monitoring
  • Sewage disposal
  • Oil-field flooding
