Ring stainless steel wire rope isolator/shock absorber Anti-noise Marine components instrument isolation

Ring stainless steel wire rope isolator/shock absorber Anti-noise Marine components instrument isolation

  • Ring stainless steel wire rope isolator/shock absorber Anti-noise Marine components instrument isolation
  • Ring stainless steel wire rope isolator/shock absorber Anti-noise Marine components instrument isolation
  • Ring stainless steel wire rope isolator/shock absorber Anti-noise Marine components instrument isolation
  • Ring stainless steel wire rope isolator/shock absorber Anti-noise Marine components instrument isolation
Ring stainless steel wire rope isolator/shock absorber Anti-noise Marine components instrument isolation
Product Details:
Place of Origin: China (Mainland)
Brand Name: Kacise
Certification: ISO9001:2008
Model Number: GR series
Payment & Shipping Terms:
Minimum Order Quantity: 1ps
Price: Negotiable
Packaging Details: each unit has individual box and all boxes are packed in standard packages or customers requests available
Delivery Time: 5-8 work day
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram,paypal
Supply Ability: 10000 Pieces per Week
Contact Now
Detailed Product Description
Material:: Aluminum And Stainless Steela Brand: Kacise
Type:: Shock Absorber Function:: Return Air
Certificate:: ISO9001:2008 Working Temperatu: : -55 ~ +120
Usage:: Industrial Machinery Shock Resistance: 20g/11ms
High Light:

wire rope shock absorber

,

cable shock absorber

Ring noise resistant marine parts stainless steel wire rope cable isolator

1. Product Description

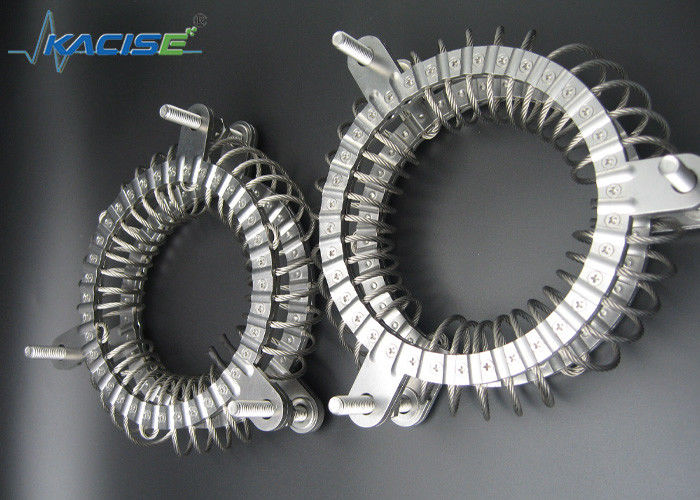

Ring stainless steel wire rope isolator/shock absorber Anti-noise Marine components instrument isolation 0


Wire rope isolators are stable mounting assemblies of high quality stranded wire rope held with rugged metal retainers. Each isolating element has specific response characteristic determined by the diameter of the wire rope, the number of strands, the cable length, the cable twist or lay, and the number of cables per section.

Inherent damping is provided by flexure hysteresis, i.e., the rubbing and sliding friction between the strands of the wire rope.

Wire rope isolators provide higher levels of isolation than any other medium or design, with excellent vibration damping. Cable mounts are truly unique, adapted to a spectrum of physical and engineering requirements so broad that it includes almost every isolation need. They have put to rest the notion that a single mount cannot handle both shock and vibration.

Taking GH Series ALL Metal Wire Rope Isolator as example: It has three-dimensional variable stiffness and variable damping characteristics. To meet the aircraft, communications, oil tanks and logging trucks, ocean transportation and other equipment, instrumentation isolation, noise reduction requirements. So that the electronic device can also work in harsh mechanical environments, isolators to replace the traditional ideal.



2.Options

  • Iridited aluminum bars are standard; however, other materials and finishes can be used.
  • Variations in cable configuration are available if the standard is not suitable.

3.Product Show

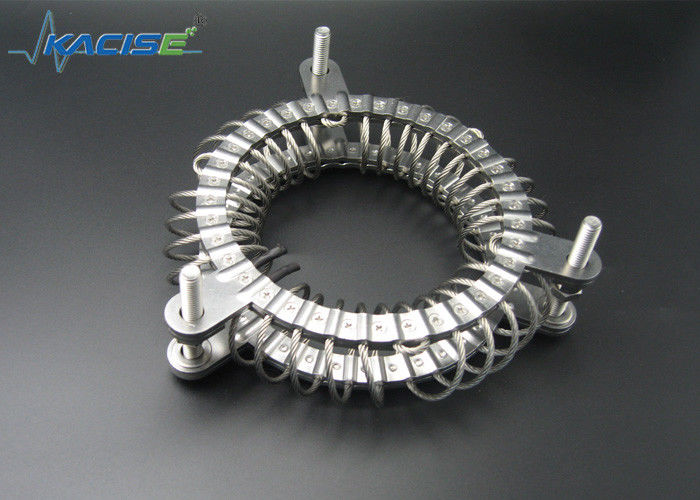

Ring stainless steel wire rope isolator/shock absorber Anti-noise Marine components instrument isolation 1

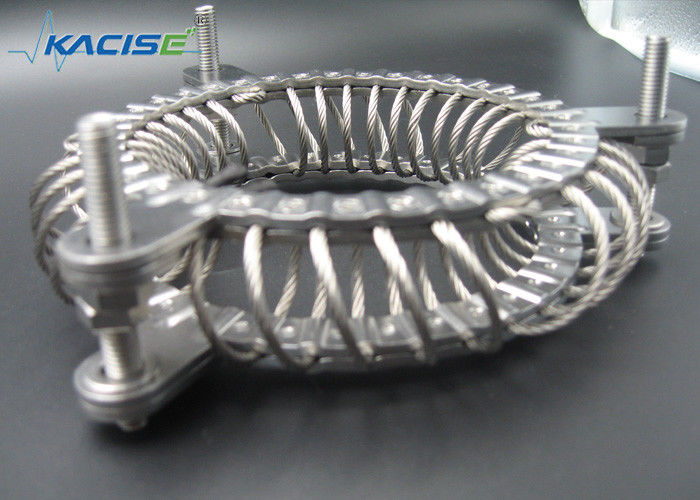

Ring stainless steel wire rope isolator/shock absorber Anti-noise Marine components instrument isolation 2

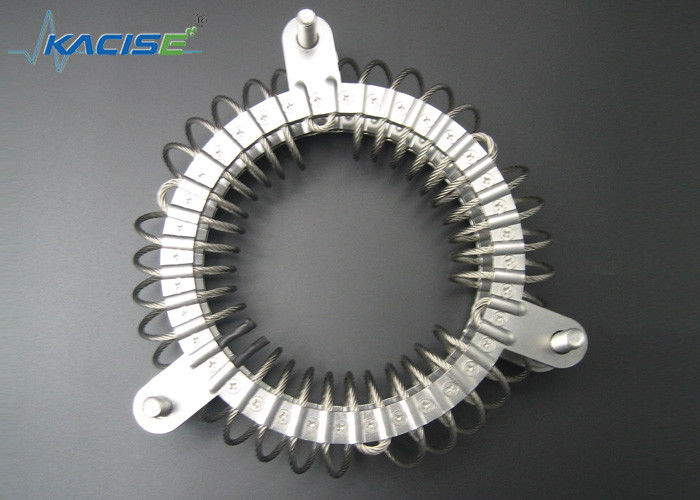

Ring stainless steel wire rope isolator/shock absorber Anti-noise Marine components instrument isolation 3


4.Feature

  • No creep or ageing.
  • High internal damping.
  • Very wide temperature range.
  • Wide variety of possible fittings.
  • Rapid and economical prototyping.
  • Extremely rugged construction and long lifespan.
  • Excellent combined shock and vibration isolation.
  • Not affected by chemical agents, seawater, ozone, UV rays,...

5.Application Field



Helical isolators protect a broad range of loads:

  • Very fragile (electronic equipment, computer hardware, optical devices).
  • Highly substantial (heavy engines, machinery––during transit or while in operation, even in a moving vehicle).

See table below for more details.



Ring stainless steel wire rope isolator/shock absorber Anti-noise Marine components instrument isolation 4

Applications Typical Equipment Protection From Operational Advantages
Shipboard Electronics, Computers,
Machinery
Explosive blast,
Inherent vibration, Storms
Long life, Maintenance-free,
Temperature extremes,
Corrosion resistance,
All axes protection
Rough Terrain Vehicles Instrumentation, Generators,
Electronics
Rough terrain,
Poor road conditions,
Collision
Long life, Maintenance-free,
Temperature extremes, Ozone,
Radioactivity, UV Radiation
Aircraft Electronics, Computers High-G maneuvering,
Hard landings, Turbulent air
Temperature and altitude extremes, Lightweight
Shipping Containers Optics, Instruments, Missiles, Electronics

Transit, Handling drop,

Loading/Unloading

Long life, Maintenance-free,

Exposure to moisture, Repeated use

Industrial Equipment



Centrifuge, Dryers, Pumps

Unbalanced dynamic loads,

Fluid hammer, Inherent vibration, Foundation weakness

Long life, Maintenance-free,

Corrosive environments

Ordnance Equipment

Missile launchers, Tank

artillery, Computer controls, Electronics

Rough terrain, Railroad humping, Transit Maintenance-free, Temperature extremes, Nearby blast
Medical Equipment

Mechanical equipment

necessary for patient care

Vibration from moving parts, Mobile carts-Transport shock Maintenance-free, No out gassing, Can be sterilized
Chimneys

Chimneys, Scrubbers,

Measuring devices

Wind causing resonant

frequencies, Stack gas causing turbulence near scrubber, etc.

Maintenance-free, Temperature extremes, Corrosive environments
