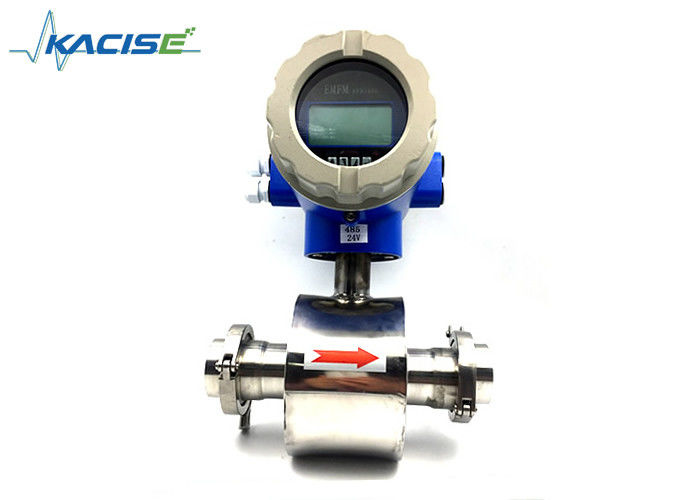

Wine / Alcohol Electromagnetic Flow Meter With Triclamp Sanitary Connections
Introduction
Our wine/alcohol electromagnetic flow meter is an essential tool for the beverage industry. Specially designed for measuring the flow of wine and alcohol, this flow meter offers outstanding performance.
Equipped with triclamp sanitary connections, it ensures a hygienic environment during the flow measurement process. These connections are easy to install, disassemble, and clean, meeting the strictest sanitary standards of the food and beverage sector. No residue or contamination is left behind, safeguarding the quality and purity of the wine and alcohol.
The electromagnetic technology employed in this meter provides highly accurate and reliable measurements. It can precisely measure the flow rate of liquids with different viscosities and conductivities that are typical of wine and alcohol products. This enables producers to have precise control over the production process, from fermentation to bottling, optimizing the overall efficiency and quality control of the beverage manufacturing operations.
Features
1. LCD back light display with high clearness. (Option: LED back light display)
2. No intercepting fluid parts, no pressure loss and fluid clogging.
3. No mechanical inertia, quick response and good stability, application in automatic examination, adjustment & controlling.
4. Measuring accuracy not influenced by physical parameters such as style, temperature, viscosity, density and pressure.
6. Supply many styles of flow meters such as inline type and insertion type, etc.
Adopt EEPROM memory to measure operation data, safe and reliable protection of memory.
7. Integral type flow meters and remote type flow meters.
8. Simple structures, firm, no movable parts and long operation life.(Guarantee in 1 years)
Parameters
| Pipe diameter |
DN6~DN2600 |
| Accuracy |
0.3% (Option), 0.5%, 1.0% of F.S.. |
| Repeatability |
Below 0.25% |
| Power |
AC: 220V, 50-60Hz; DC: +24V(Option) |
| Output Signals |
4~20mA, Pulse, 0~5V |
| Conduit connection |
M20 * 1.5 Thread |
| Communication Interface |
RS-232; RS-485; HART |
| Operation Pressure |
1.0MPa, 1.6MPa, 4.0MPa, 16MPa (Special) |
| Fluid Temperature |
-20°C~80°C, 80°C ~130°C, 130°C ~180°C Depending on Lining Material |
| Ambient Temperature |
Sensor -40°C ~80°C. transducer -15°C ~50°C |
| Ambient Humidity |
≤ 85%RH (at 20C) |
| Cable Outlet Size |
M20×1.5 |
| Power Supply |
220VAC±10%, 50-60Hz±1Hz, 24VDC±10%, Battery power (3-5years) |
| Power Consumption |
≤ 15W |
| Protection Ratings |
Remote type: sensor IP68, transducer IP65. |
| Materials |
Electrode |
316L (stainless steel), Hastelloy C, Hastelloy B,Titanium, Tantalum, etc. |
| |
Liner |
PTFE, Soft rubb er, Hard rubber, F46, FS, PUR. |
| Measuring tube |
SS 304, carbon steel |
| Flange |
Carbon Steal, SS304 |
| Ground ring |
316L (stainless steel), HC, Ti, Ta, Cu. |
| Connection of Flange |
National Standard GB9119-88 (DIN2051, BS4504), JIS,ANSI. Screw.
Tri-clamp for sanitary application
Insertion type.
|
| EX-proof protection |
Exde ib ii BT2 |
| Quality control |
ISO9001-2008, CE
|
