Wall Mount Digital Liquid Flow Meter 32-6000mm Pipe Diameter Easy To Install

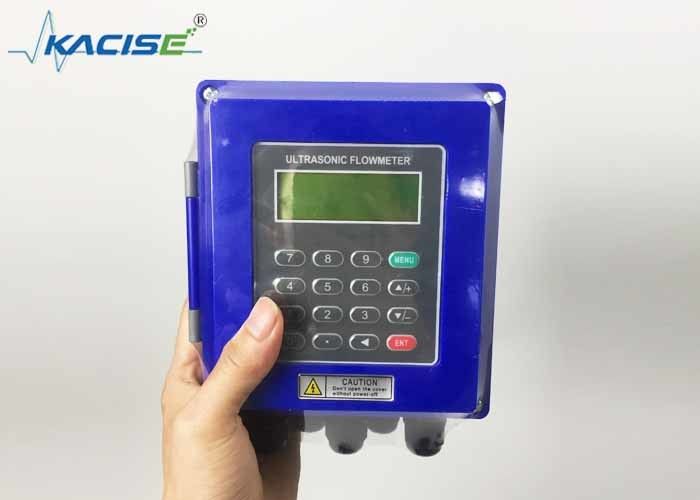

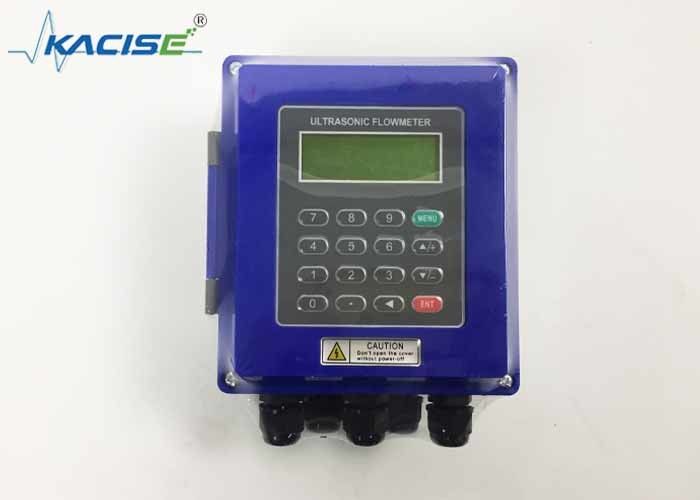

KUFS2000 Series Wall Mount Ultrasonic Flow Meter

1.Introduction

KUFS2000 series separated type ultrasonic flow meter usually used in various liquids, and it support
measuring online long-term. No need to cut the pipe, flow when you install it.

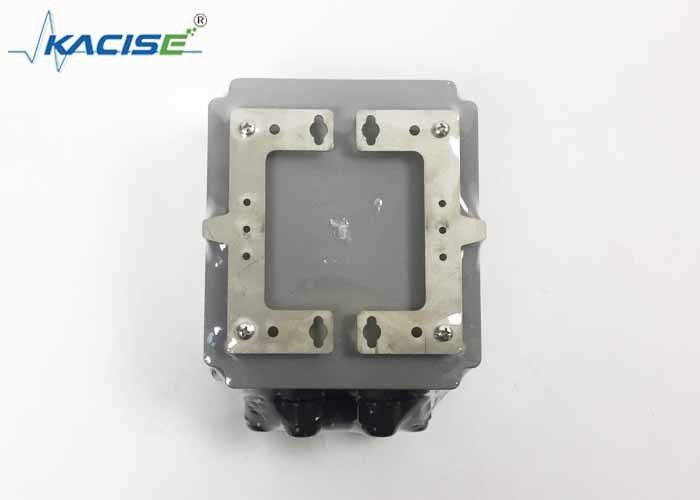

The host has wall mounting type, panel mount type, explosion proof type; Sensors include clamp on type, plug
in type and pipe type. It can measure heat if add temperature sensor.

2. Features

• High accuracy:1%
• Suitable diameter:Choose different types of sensors, you can realize the diameters of DN15~DN6000mm tube measurement channel flow.
• High reliability,Use low voltage.Anti-interference is high
• Use double-balanced signal to launch and receive circuit, It can resist inverter, television tower, high tension cable, etc.
• Powerful Recording Function
• Automatically record the following data:Record the totality data of the last 512 days/ 128 months/ 10 years.
• The time and corresponding flow rate of the last 64 times of power on and off events. Record the working status of the last 32 days.
• Support heat measuring:It can measure heat if add temperature sensor.
• Support SD memorizer:Optional SD memorizer function, which can remember a large of data

3. Installation

1. Clamp on type
Easy to install without interrupt fluid, no damage for pressure
Install and service clamp sensor conveniently
It can measure the temperature out of the pipe, compute the quantity of heat

2. Plug in type
Easy to install without interrupt fluid, no damage for pressure
Stable operation, contact the temperature sensor which inserted, compute quantity of heat by the
temperature sensor.

3. Pipe type
Install with interrupt flow
High accuracy, stable operation, contact the temperature sensor which inserted, compute quantity of heat
by the temperature sensor

4.Sensor selection

Sensor selection depend on the application field parameters such as the diameter of the pipe the fix method
the kind of the flow, please refer to the fix method choice chapter for details.

5.Parameters

6.Ordering information
