| Place of Origin: | China (Mainland) |
| Brand Name: | Kacise |
| Certification: | certificate of explosion-proof, CE |
| Model Number: | KUFH2000 |
| Minimum Order Quantity: | 1pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | each unit has individual box and all boxes are packed in standard packages or customers requests available |
| Delivery Time: | 5-8 work days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram,paypal |
| Supply Ability: | 1000 Pieces per Week |
| Accuracy: | ±1% | Output: | 4~ 20mA Output,RS485 |
|---|---|---|---|
| Pipe Diameter: | 32~6000mm | Type Of Liquid: | Water, Sea Water, Waste Water, Oil, Chemicals (alcohol, Acids, Etc.), Plant Effluent And Other Liquids |
| Temperature: | -30~160℃ | Flow Speed: | 0~±10m/s |
| Power Supply: | DC8~36V Or AC85~265V( Optional) | Consumption: | 1.5W |
| High Light: | portable clamp on flow meter,ultrasonic flow transducer |
||

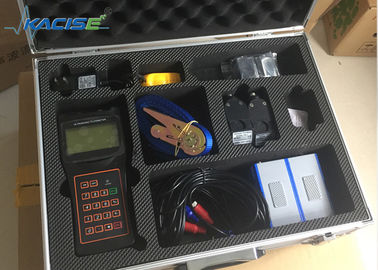

KUFH2000 Series Handheld Ultrasonic Flow Meter
1.Introduction
The ultrasonic distance sensor transmits the ultrasonic pulse to the measured object, and then returns the echo formed by the measured object to the receiving sensor, so as to obtain the time difference between the transmitting and receiving, and then the distance between the transducer and the measured medium surface can be obtained according to the sound speed in the medium.
KUFH2000 handheld ultrasonic flowmeter is a good choice for measuring closed pipeline flow, its advantages are high precision, battery powered, easy to operate, good consistency, good portability, small size, light weight.
2. Features
3. Installation
4.Sensor selection
Sensor selection depend on the application field parameters such as the diameter of the pipe the fix method
the kind of the flow, please refer to the fix method choice chapter for details.
5.Parameters
| Parts | Parameters in detail | |
|
Host part |
Theory | Ultrasonic time gap |
| Accuracy | ±1% | |
| Display | 4 x 8 or 4 x 16 Character matrix backlight LCD, support English, Italian, Chinese. | |
|
Signal output |
1 channel pulse output OCT (pulse width is adjustable between 6~1000ms, 200ms(default). | |
| Digital port | RS232 support Mod-bus protocol and support firmware update | |
| Suit pipe | Pipe material | Steel, cast iron cement, copper, PVC, Aluminum, glass, etc |
| Inner DN | 15~6000mm | |
| Sensor position | It’s better the sensor fix at the position of at least 10D far away of upstream, or 5D far away of upstream, at least 20D far away from the pump outlet(D is the inner diameter of the pipe) | |
| Suit flow | Media | Single liquid can transmit sound wave, such as water, sewage, oil, chemicals, plant effluent, beverage, ultra-pure liquids, etc. |
| Temperature | -30~160℃ | |
| Turbidity | 10000pm not so much baubles | |
| Flow speed | 0~±10m/s | |
|
Environment |
temperature | Host: -20~60℃； Sensor: -30~160℃ |
| Humidity | Host: 85%RH; Flow sensor: IP67 | |
| Power supply | 3 built-in 1.2V capacity rechargeable Ni-MH battery 2000mAH,full of electricity sustainable work more than 12 hours, power adapter: AC90 ~260V, which can realize continuous measurement | |
| consumption | 1.5W | |
| shell material | Inflaming retarding ABS | |
| Host part weight | 390g | |
6.Ordering information
