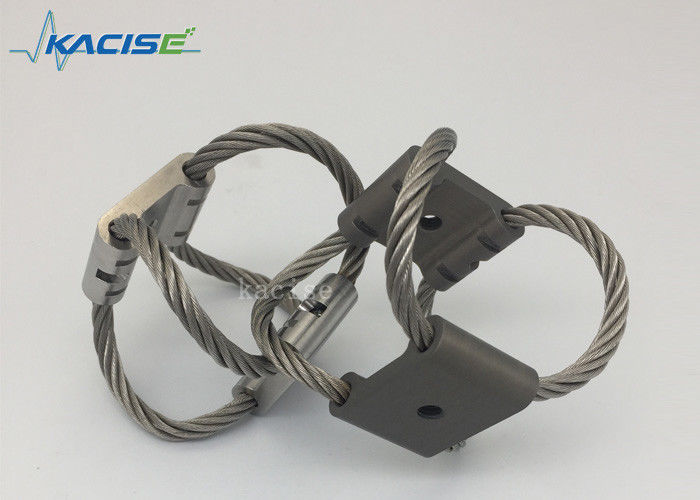

Compact Wire Rope Vibration Isolator Video Camera Wire Damper Stabilizer

Compact Wire Rope Vibration Isolator Video Camera Wire Damper Stabilizer

    • Compact Wire Rope Vibration Isolator Video Camera Wire Damper Stabilizer
    • Compact Wire Rope Vibration Isolator Video Camera Wire Damper Stabilizer
  • Compact Wire Rope Vibration Isolator Video Camera Wire Damper Stabilizer

    Product Details:

    Place of Origin: China (Mainland)
    Brand Name: Kacise
    Certification: ISO9001:2008
    Model Number: GR

    Payment & Shipping Terms:

    Minimum Order Quantity: 1ps
    Price: Negotiable
    Packaging Details: each unit has individual box and all boxes are packed in standard packages or customers requests available
    Delivery Time: 5-8 work day
    Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram,paypal
    Supply Ability: 10000 Pieces per Week
    Contact Now
    Detailed Product Description
    Material: Stainless Steel,Aluminum, Stainless Steel Applications: Industrial Engine Mounts
    Shock Resistance: 20g/11ms Relative Product: Backdraft Damper
    Type: HVAC Systems Feature: Vibration Isolation
    Function: Damping Color: Black
    High Light:

    wire rope shock absorber

    ,

    cable shock absorber

    Compact wire rope isolators stabilize your UAV video camera wire damper stabilizer

    GX Compact Wire Rope Isolators feature an easy, single-point installation, which allows them to be installed in virtually any application. Their small size also permits the isolation of individual system components, makingthem ideal for use in sensitive equipment and electronics. Just as with our standard GX Wire Rope Isolators, GX Compact Wire Rope Isolators feature a patented, all-metal design and components that ensure maximum reliability, regardless of temperature or substrate requirement, and that can help meet MILSPECS similar to those of our Wire Rope Isolator series. Please refer to our “Compact Wire Rope Isolator Sizing Information”



    Compact Wire Rope Vibration Isolator Video Camera Wire Damper Stabilizer 0



    Dimension Parameter Table





    Model

    Height±

    1.5(mm)

    Width

    (mm)

    Weight

    (kg)

    Mounting

    Options

    Thru

    Hole(mm)

    Thread

    (mm)

    C’sink



    GR1-3.3-A



    17



    19



    0.05









    A,B,C, D,E,S











    φ3.3











    M3x0.5











    90



    GR1-2.4D-A



    19



    20



    0.05



    GR1-1.8D-A



    23



    23



    0.05



    GR1-1.3D-A



    26



    26



    0.05



    Table 1 GR1 Series Technical Parameters







    Model

    Max Static

    Load(N)

    Max Deflection

    (mm)

    Kv(Vibration)

    (KN/m)

    Ka(Shock)

    (KN/m)



    GR1-3.3-A



    3.3



    6.4



    3.9



    1.9



    GR1-2.4D-A



    2.4



    8.4



    2.8



    1.2



    GR1-1.8D-A



    1.8



    11.9



    1.8



    0.6



    GR1-1.3D-A



    1.3



    15



    1.3



    0.4



                                    Table 2 GR1 45°Compression/Roll Load





    Model

    Max Static Load(N) Max Deflection (mm) Kv(Vibration) (KN/m) Ka(Shock) (KN/m)



    GR1-3.3-A



    1.6



    8.6



    2.1



    0.8



    GR1-2.4D-A



    1.1



    10.9



    1.5



    0.4



    GR1-1.8D-A



    0.8



    14.7



    0.9



    0.3



    GR1-1.3D-A



    0.5



    18.3



    0.5



    0.1

                                Table 3 GR1 Shear/Roll Load





    Model

    Max Static Load(N) Max Deflection (mm) Kv(Vibration) (KN/m) Ka(Shock) (KN/m)



    GR1-3.3-A



    1.1



    7.9



    0.7



    0.7



    GR1-2.4D-A



    0.9



    9.9



    0.4



    0.4



    GR1-1.8D-A



    0.7



    13.2



    0.3



    0.3



    GR1-1.3D-A



    0.5



    16.3



    0.1



    0.1
