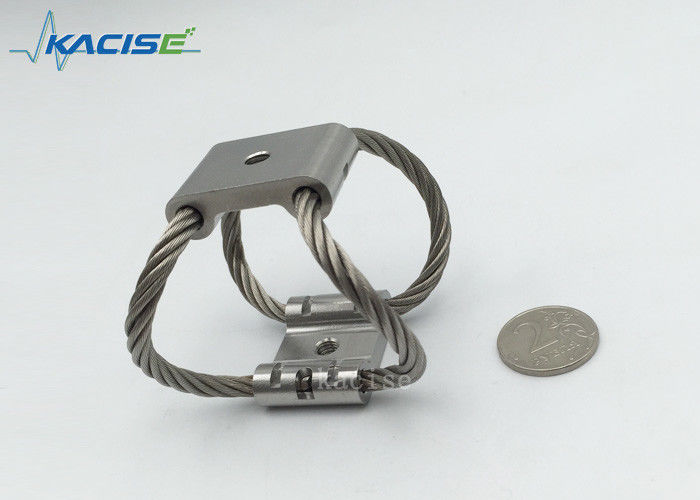

Stainless Steel Aero Flex Wire Rope Vibration Isolator Durable Shock Absorber

Stainless Steel Aero Flex Wire Rope Vibration Isolator Durable Shock Absorber

    • Stainless Steel Aero Flex Wire Rope Vibration Isolator Durable Shock Absorber
    • Stainless Steel Aero Flex Wire Rope Vibration Isolator Durable Shock Absorber
  • Stainless Steel Aero Flex Wire Rope Vibration Isolator Durable Shock Absorber

    Product Details:

    Place of Origin: China (Mainland)
    Brand Name: Kacise
    Certification: ISO9001:2008
    Model Number: GR

    Payment & Shipping Terms:

    Minimum Order Quantity: 1ps
    Price: Negotiable
    Packaging Details: each unit has individual box and all boxes are packed in standard packages or customers requests available
    Delivery Time: 5-8 work day
    Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram,paypal
    Supply Ability: 10000 Pieces per Week
    Contact Now
    Detailed Product Description
    Material: Aluminum And Stainless Steela, Stainless Steel Applications: Marine And Industrial Engine Mounts
    Shock Resistance: 20g/11ms Relative Product: Backdraft Damper
    Type: Shock Absorber Feature: Durable
    Function: Return Air Product Name: Isolator Loop Assembly
    High Light:

    wire rope shock absorber

    ,

    cable shock absorber



    Aero Flex Wire Rope Isolator Loop Assembly GR Series

    Wire rope isolators are stable mounting assemblies of high quality stranded wire rope held with rugged metal retainers. Each isolating element has specific response characteristic determined by the diameter of the wire rope, the number of strands, the cable length, the cable twist or lay, and the number of cables per section.

    Inherent damping is provided by flexure hysteresis, i.e., the rubbing and sliding friction between the strands of the wire rope.

    Wire rope isolators provide higher levels of isolation than any other medium or design, with excellent vibration damping. Cable mounts are truly unique, adapted to a spectrum of physical and engineering requirements so broad that it includes almost every isolation need. They have put to rest the notion that a single mount cannot handle both shock and vibration.

    Taking GH Series ALL Metal Wire Rope Isolator as example: It has three-dimensional variable stiffness and variable damping characteristics. To meet the aircraft, communications, oil tanks and logging trucks, ocean transportation and other equipment, instrumentation isolation, noise reduction requirements. So that the electronic device can also work in harsh mechanical environments, isolators to replace the traditional ideal.

    Stainless Steel Aero Flex Wire Rope Vibration Isolator Durable Shock Absorber 0

    Options
    • Iridited aluminum bars are standard; however, other materials and finishes can be used.
    • Variations in cable configuration are available if the standard is not suitable.

    Applications:



    Helical isolators protect a broad range of loads:

    • Very fragile (electronic equipment, computer hardware, optical devices).
    • Highly substantial (heavy engines, machinery––during transit or while in operation, even in a moving vehicle).

    See table below for more details.



    Applications Typical Equipment Protection From Operational Advantages
    Shipboard Electronics, Computers, Machinery Explosive blast, Inherent vibration, Storms Long life, Maintenance free,Temperature extremes, Corrosion resistance, All axes protection
    Rough Terrain Vehicles Instrumentation, Generators, Electronics Rough terrain, Poor road conditions, Collision Long life, Maintenance free, Temperature extremes, Ozone, Radioactivity, UV Radiation
    Aircraft Electronics, Computers High-G maneuvering, Hard landings, Turbulent air Temperature and altitude extremes, Lightweight
    Shipping Containers Optics, Instruments, Missiles, Electronics Transit, Handling drop, Loading/Unloading Long life, Maintenance free, Exposure to moisture, Repeated use
    Industrial Equipment Centrifuge, Dryers, Pumps Unbalanced dynamic loads, Fluid hammer, Inherent vibration, Foundation weakness Long life, Maintenance free, Corrosive environments
    Ordnance Equipment Missile launcher, Tank artillery, Computer controls, Electronics Rough terrain, Railroad humping, Transit Maintenance free, Temperature extremes, Nearby blast
    Medical Equipment Mechanical equipment necessary for patient care Vibration from moving parts, Mobile carts-Transport shock Maintenance free, No outgassing, Can be sterilized
    Chimneys Chimneys, Scrubbers, Measuring devices Wind causing resonant frequencies, Stack gas causing turbulence near scrubber, etc. Maintenance free, Temperature extremes, Corrosive environments
