Non Contact Explosion Proof Flow Meter High Accuracy Thread Installation

Non Contact Explosion Proof Flow Meter High Accuracy Thread Installation

    • Non Contact Explosion Proof Flow Meter High Accuracy Thread Installation
    • Non Contact Explosion Proof Flow Meter High Accuracy Thread Installation
  • Non Contact Explosion Proof Flow Meter High Accuracy Thread Installation

    Product Details:

    Place of Origin: China (Mainland)
    Brand Name: Kacise
    Certification: certificate of explosion-proof, CE
    Model Number: KUFH2000

    Payment & Shipping Terms:

    Minimum Order Quantity: 1pcs
    Price: Negotiable
    Packaging Details: each unit has individual box and all boxes are packed in standard packages or customers requests available
    Delivery Time: 5-8 work days
    Payment Terms: T/T, Western Union, MoneyGram
    Supply Ability: 1000 Pieces per Week
    Contact Now
    Detailed Product Description
    Type: Integrated Range: 5-60
    Display: English Led Display Digital Output: RD485
    Cable Probe: No. Installation: Thread
    High Light:

    portable clamp on flow meter

    ,

    ultrasonic flow transducer

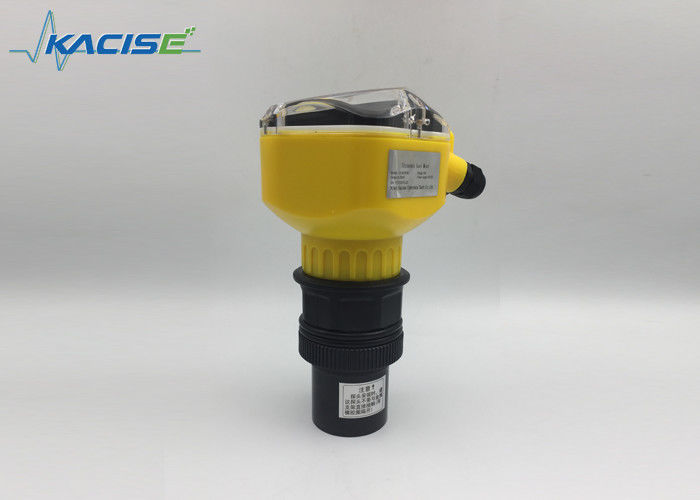

    KUM-A Digital Intergral Intelligent Enhanced Ultrasonic Level Meter Non-Contact Level Sensor





    KUM-A ultrasonic level meter is a non-contact and cost-effective level meter with high reliability, high accuracy and easy installation. It does not have to contact the medium and can meet the measuring requirements of most applications.



    1. Technical Features:

    • Non-contact, can be used in various applications;
    • High accuracy: 0.5%, 1%
    • Various types of probes are available to meet the requirements of various applications.



    2. Structure:



    Non Contact Explosion Proof Flow Meter High Accuracy Thread Installation 0



    3. Technical Specifications:



    Specs Value
    Pressure Voltage 5m, 10m, 15m, 20m, 30m, 40m, 50m, 60m
    Accuracy 0.5%, 1.0%
    Display LCD
    Ambient Temperature Display instrument-20~+60℃
    transducer-20~+80℃
    Medium liquid and solid
    Analog Output 4-20mA
    Digital Output RS485, RS232 (both are optional)
    Power Supply 24Vdc
    Protection Grade Display instrument IP65,transducer IP68
    Probe Type PVDF, aluminum alloy, ABS, stainless steel 316L, teflon, titanium alloy





    4. Model Selection:



    KUM-A
      Measurement Range
    A 5m
    B 10m
    C 15m
    D 20m
    E 30m
    F 40m
    G 50m
    H 60m
      Output Signal
    A 4-20mA
      Accuracy
    0.5 0.5%
    1.0 1%
      Power Supply
    A 24Vdc
    B 11~30Vdc
      Probe Type
    A PVDF
    B Aluminum alloy
    C ABS
    D Stainless steel 316L
    E Teflon
    F Titanium alloy



    5. Applications and Installations:



    • Distance measurement
    • Depth measurement



    Non Contact Explosion Proof Flow Meter High Accuracy Thread Installation 1

    Non Contact Explosion Proof Flow Meter High Accuracy Thread Installation 2

    Non Contact Explosion Proof Flow Meter High Accuracy Thread Installation 3
