Solid Material Ultrasonic Flow Meter Integrated RS485 Digital Output 0.5% - 1% Accuracy

Solid Material Ultrasonic Flow Meter Integrated RS485 Digital Output 0.5% - 1% Accuracy

    • Solid Material Ultrasonic Flow Meter Integrated RS485 Digital Output 0.5% - 1% Accuracy
    • Solid Material Ultrasonic Flow Meter Integrated RS485 Digital Output 0.5% - 1% Accuracy
  • Solid Material Ultrasonic Flow Meter Integrated RS485 Digital Output 0.5% - 1% Accuracy

    Product Details:

    Place of Origin: China (Mainland)
    Brand Name: Kacise
    Certification: certificate of explosion-proof,
    Model Number: KUM-A

    Payment & Shipping Terms:

    Minimum Order Quantity: 1pcs
    Price: USD157 to USD610 per pc
    Packaging Details: each unit has individual box and all boxes are packed in standard packages or customers requests available
    Delivery Time: 5-8 work days
    Payment Terms: T/T, Western Union, MoneyGram
    Supply Ability: 1000 Pieces per Week
    Contact Now
    Detailed Product Description
    Material: Solid PProduct Type: Integrated
    Display: English Led Display Cable Probe: No
    Digital Output: RS485 Accuracy: 0.5%-1%
    High Light:

    portable clamp on flow meter

    ,

    ultrasonic flow transducer

    KUM-A Ditital Integrated High Quality Ultrasonic Level Merter Non-Contact Lever Sensor Solid Level Measurement

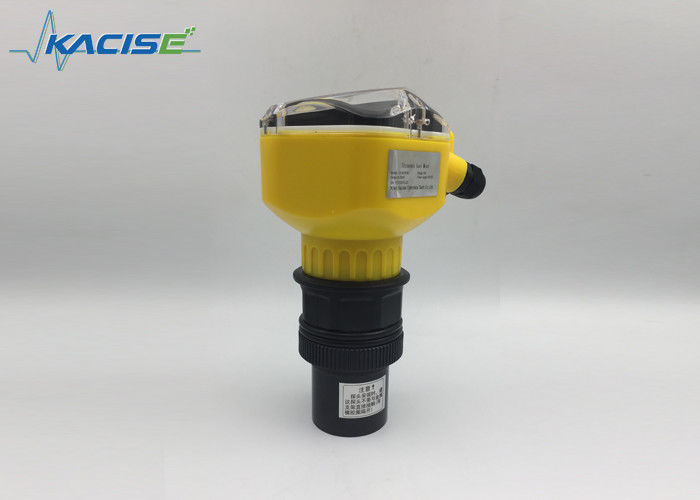

    KUM-A ultrasonic level meter is a non-contact and cost-effective level meter with high reliability, high accuracy and easy installation. It does not have to contact the medium and can meet the measuring requirements of most applications.



    Technical Features:



    • Non-contact, can be used in various applications;
    • Various types of probes are available to meet the requirements of various applications.
    • High accuracy: 0.5%, 1%
    • English LED Display



    Structure:



    Solid Material Ultrasonic Flow Meter Integrated RS485 Digital Output 0.5% - 1% Accuracy 0



    3. Technical Specifications:



    Specs Value
    Pressure Voltage 5m, 10m, 15m, 20m, 30m, 40m, 50m, 60m
    Accuracy 0.5%, 1.0%
    Display LCD
    Ambient Temperature Display instrument-20~+60℃
    transducer-20~+80℃
    Medium liquid and solid
    Analog Output 4-20mA
    Digital Output RS485, RS232 (both are optional)
    Power Supply 24Vdc
    Protection Grade Display instrument IP65,transducer IP68
    Probe Type PVDF, aluminum alloy, ABS, stainless steel 316L, teflon, titanium alloy





    4. Model Selection:



    KUM-A
      Measurement Range
    A 5m
    B 10m
    C 15m
    D 20m
    E 30m
    F 40m
    G 50m
    H 60m
      Output Signal
    A 4-20mA
      Accuracy
    0.5 0.5%
    1.0 1%
      Power Supply
    A 24Vdc
    B 11~30Vdc
      Probe Type
    A PVDF
    B Aluminum alloy
    C ABS
    D Stainless steel 316L
    E Teflon
    F Titanium alloy



    5. Applications and Installations:



    • Distance measurement
    • Depth measurement



    Solid Material Ultrasonic Flow Meter Integrated RS485 Digital Output 0.5% - 1% Accuracy 1

    Solid Material Ultrasonic Flow Meter Integrated RS485 Digital Output 0.5% - 1% Accuracy 2

    Solid Material Ultrasonic Flow Meter Integrated RS485 Digital Output 0.5% - 1% Accuracy 3
