| Place of Origin: | China |
| Brand Name: | Kacise |
| Certification: | Certificate of explosion-proof, CE |
| Model Number: | KUS550 |
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | Negotiable |
| Packaging Details: | each unit has individual box and all boxes are packed in standard packages or customers requests available |
| Delivery Time: | 3 working days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Usage: | Distance Sensor, Level Sensor | Output: | RS485 & 0~10V |
|---|---|---|---|
| Theory: | Ultrasonic Sensor | Type: | Waterproof |
| Material: | PTFE, PVC | Product Name: | 1NPT Ultrasonic Sensor |
| Color: | White | Application: | Measure The Distance And Level |
| Warranty: | 18 Months | Size: | 50.5* φ42.5 |
| Accuracy: | 1% | Voltage: | 12-24v |
| Package: | Carton | Beam Angle:: | 7°±2 |
| High Light: | waterproof ultrasonic sensor,ultrasonic fuel level sensor |
||

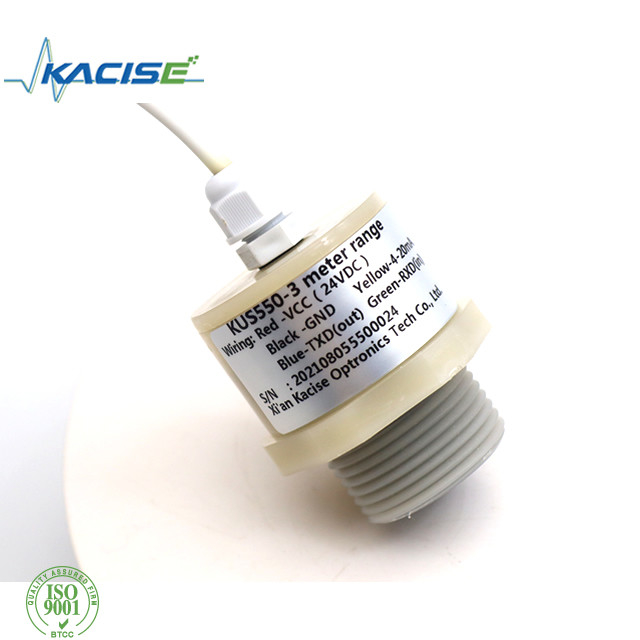

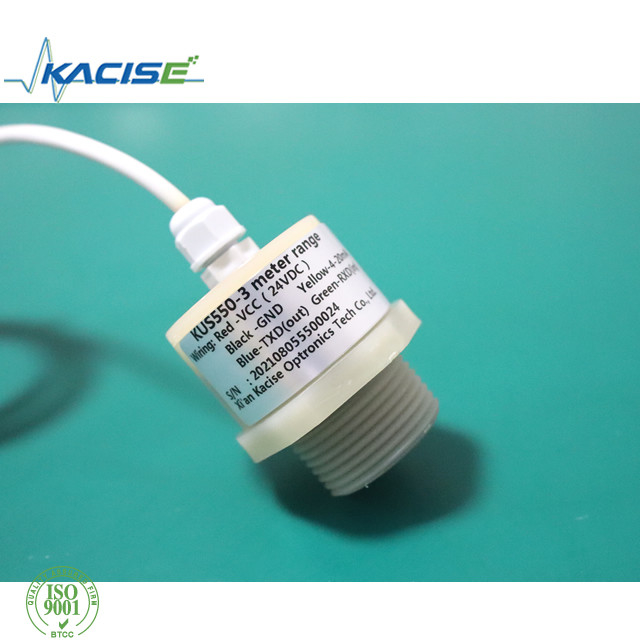

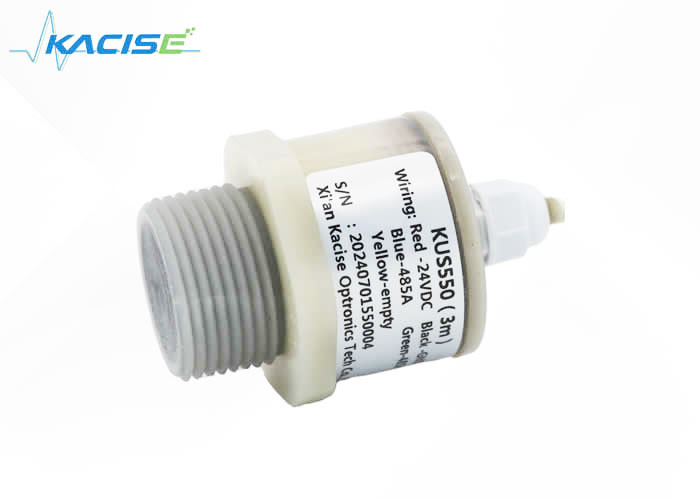

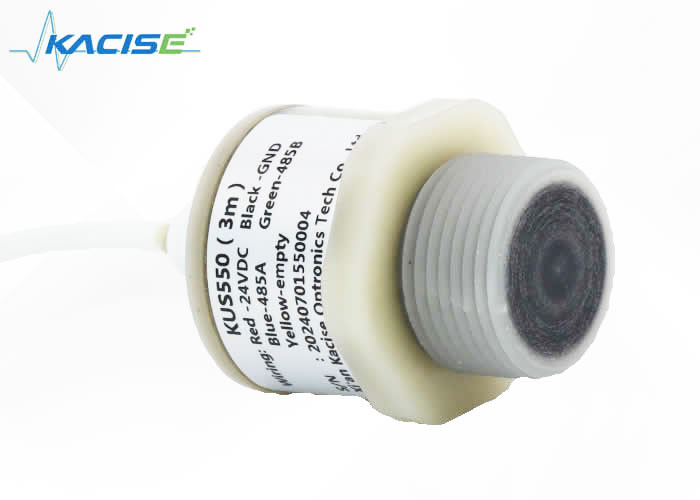

1NPT PTFE Material Ultrasonic Transducer Sensor Ultrasonic Level Meter For Food
Introduction
This sensor provides very short to long-range detection and ranging, in a compact, robust PVC housing, designed to meet IP65. PTFE housing, IP68 can be customized.
Features
. Designed for outdoor or indoor environments
. High sensitivity
. Free run operation can continually measure and output ranger information
. Sensor beam angle is 7 degrees.
Applications
. Tank level measurement
. Bin level measurement
. Proximity zone detection
. People detection
. Robot ranging sensor
. Autonomous navigation
. Multi-sensors navigation
. Distance measuring
. Long range object detection
. Industrial automation
Parameters
| General Parameters | Mechanical Properties | |||
| Detection Range | 200mm~3000mm | Connection | 5 pin cable | |
| Transducer Frequency | 70KHZ | Weight | 100g | |
| Repeatability Precision | ≤1% | IP grade | IP65, IP68(Optional) | |
| Response Time | ＜50ms | |||
| Beam Angle | 7°±2 | |||
| Temp. Compensation | inside/outside/fix temp. | |||
| Housing Material | PVC | |||
| PTFE (Corrosion resistant) | ||||
| Electrical Parameters | ||||
| Operating Voltage | 14.5VDC~27VDC | |||
| Limit Working Voltage | 13VDC~30VDC | |||
| Power Consumption | ≤30mA | |||
| Circuit Protection | short-circuit protection, overload protection | |||
| Output | Digital Output | RS485 | ||
| Analogue Output | 0~5V | |||
| Switch Output | 0V / 5V | |||
| Ambient Environment | ||||
| Operating Ambient Temp. | 0~70℃ (-40~85℃, -55~125℃, etc, customizable) | |||
| Storage Temperature | -55~125℃ | |||
Ordering information
KUS550M-Range-Output-Accuracy-Power-Structure-Cable length-Package
1. Range: 200mm…3000mm
2. Output: A=RS485, V=0~5Vdc, V1=0V/ 5V
3. Accuracy: 1=1%
4. Power: 24VDC, 13~30Vdc, or customized
5. Housing material: C= PVC material, F=PTFE (corrosion resistance ), Ht=customized
