| Place of Origin: | China (Mainland) |
| Brand Name: | Kacise |
| Certification: | certificate of explosion-proof, CE |
| Model Number: | KUFH2000 |
| Minimum Order Quantity: | 1pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | each unit has individual box and all boxes are packed in standard packages or customers requests available |
| Delivery Time: | 5-8 work days |
| Payment Terms: | T/T, Western Union, MoneyGram |
| Supply Ability: | 1000 Pieces per Week |
| Type: | Integrated | Range: | 5-60 |
|---|---|---|---|
| Display: | English Led Display | Digital Output: | RD485 |
| Cable Probe: | No. | Installation: | Thread |
| High Light: | portable clamp on flow meter,ultrasonic flow transducer |
||

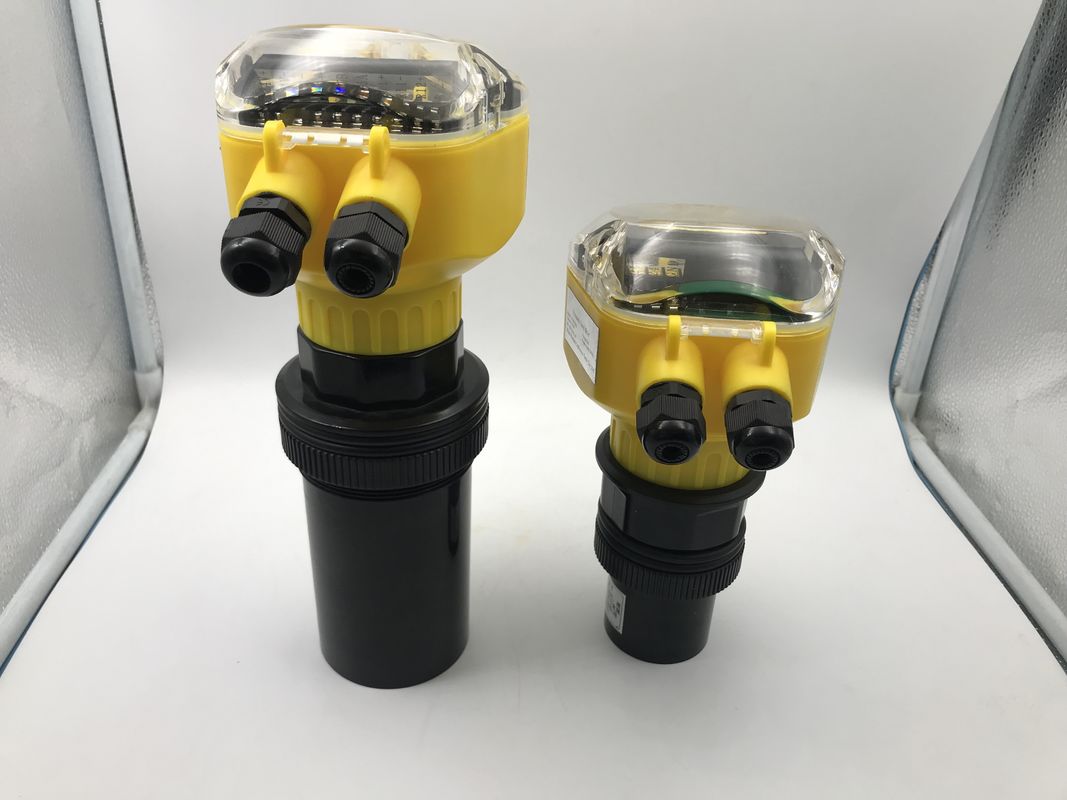

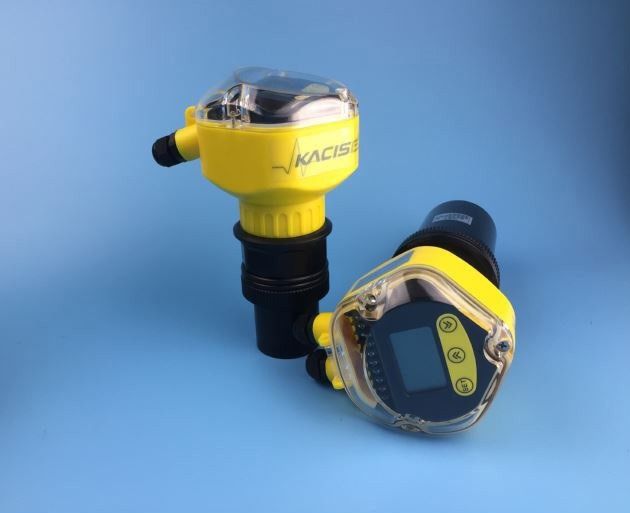

KUM-A Digital Intergral Intelligent Enhanced Ultrasonic Level Meter Non-Contact Level Sensor
KUM-A ultrasonic level meter is a non-contact and cost-effective level meter with high reliability, high accuracy and easy installation. It does not have to contact the medium and can meet the measuring requirements of most applications.
1. Technical Features:
2. Technical Specifications:
| Specs | Value |
| Pressure Voltage | 5m, 10m, 15m, 20m, 30m, 40m, 50m, 60m |
| Accuracy | 0.5%, 1.0% |
| Display | LCD |
| Ambient Temperature | Display instrument-20～+60℃ transducer-20～+80℃ |
| Medium | liquid and solid |
| Analog Output | 4-20mA |
| Digital Output | RS485, RS232 (both are optional) |
| Power Supply | 24Vdc |
| Protection Grade | Display instrument IP65,transducer IP68 |
| Probe Type | PVDF, aluminum alloy, ABS, stainless steel 316L, teflon, titanium alloy |
3. Model Selection:
| KUM-A | ||||||
| Measurement Range | ||||||
| A | 5m | |||||
| B | 10m | |||||
| C | 15m | |||||
| D | 20m | |||||
| E | 30m | |||||
| F | 40m | |||||
| G | 50m | |||||
| H | 60m | |||||
| Output Signal | ||||||
| A | 4-20mA | |||||
| Accuracy | ||||||
| 0.5 | 0.5% | |||||
| 1.0 | 1% | |||||
| Power Supply | ||||||
| A | 24Vdc | |||||
| B | 11~30Vdc | |||||
| Probe Type | ||||||
| A | PVDF | |||||
| B | Aluminum alloy | |||||
| C | ABS | |||||
| D | Stainless steel 316L | |||||
| E | Teflon | |||||
| F | Titanium alloy | |||||
4. Structure:
5. Applications and Installations:
