Handheld Ultrasonic Liquid Flow Meter High Accuracy With Rechargeable Power Supply

Handheld Ultrasonic Liquid Flow Meter High Accuracy With Rechargeable Power Supply

  • Handheld Ultrasonic Liquid Flow Meter High Accuracy With Rechargeable Power Supply
  • Handheld Ultrasonic Liquid Flow Meter High Accuracy With Rechargeable Power Supply
Handheld Ultrasonic Liquid Flow Meter High Accuracy With Rechargeable Power Supply
Product Details:
Place of Origin: China (Mainland)
Brand Name: Kacise
Certification: certificate of explosion-proof, CE
Model Number: KUFH2000
Payment & Shipping Terms:
Minimum Order Quantity: 1pcs
Price: Negotiable
Packaging Details: each unit has individual box and all boxes are packed in standard packages or customers requests available
Delivery Time: 5-8 work days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram,paypal
Supply Ability: 1000 Pieces per Week
Contact Now
Detailed Product Description
Type Of Liquid: Water, Sea Water, Waste Water, Oil, Chemicals (alcohol, Acids, Etc.), Plant Effluent And Other Liquids Temperature: -30~160℃
Flow Speed: 0~±10m/s Power Supply: DC8~36V Or AC85~265V( Optional)
Consumption: 1.5W Accuracy: ±1%
Output: 4~ 20mA Output,RS485 Pipe Diameter: 32~6000mm
High Light:

portable clamp on flow meter

,

ultrasonic flow transducer

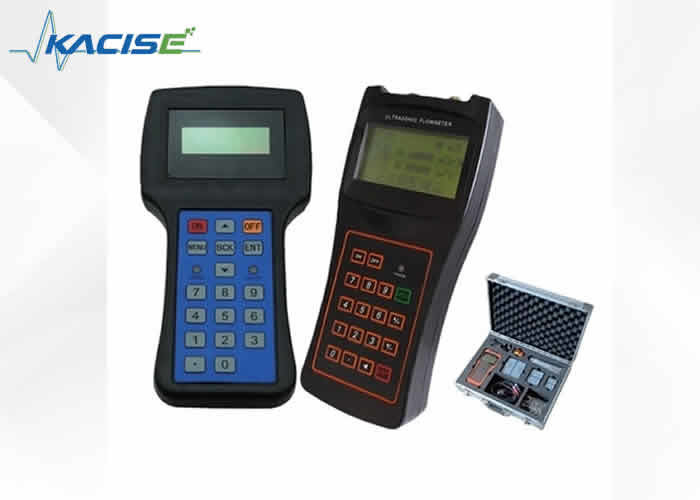

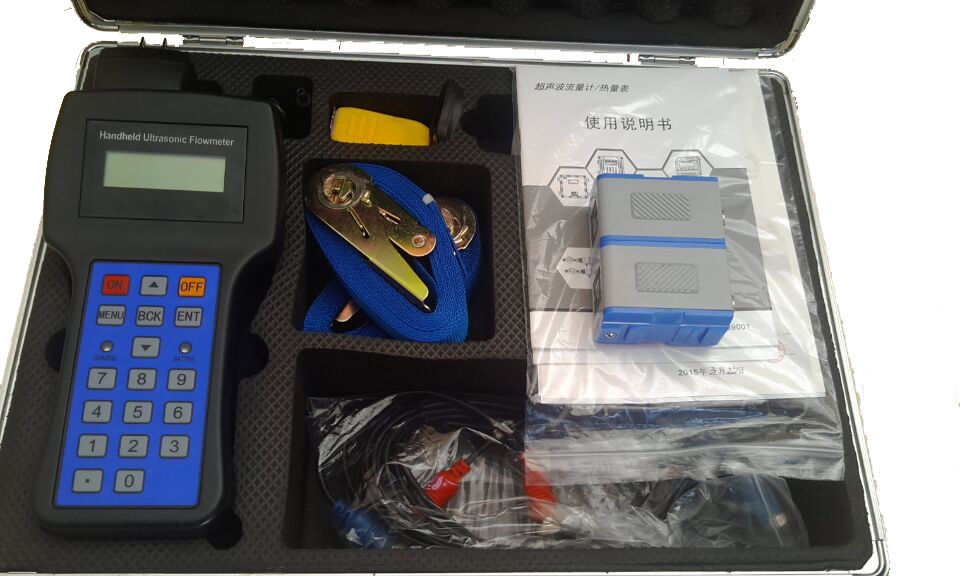

KUFH2000 Series Handheld Ultrasonic Flow Meter



1. Features

  1. High accuracy:Linearity: better than 0.5%, Repeatability: better than 0.2%, Accuracy:±1%
  2. Wide range of flow rate and pipe diameter:Suitable for the pipe with DN15 to DN6000
  3. Rechargeable power supply:Built-in NIMH rechargeable battery, which can support 12 hours of continuous work. When charging by power adapter, it can realize the uninterrupted measurement.
  4. Non-intrusive measuring:Non-intrusive, clamp-on transducer, no pressure drop, no pipe disturbance.
  5. Large LCD display:Display instantaneous flow, accumulated flow (positive, negative and net), velocity, working status etc.
  6. Built-in data logger:Built-in 24K data logger, store over 2000 lines measuring data

2.Introduction



KUFH2000 handheld ultrasonic flow meter is ideal for flow surveys and closed pipe application where
non-invasive measurement of liquids is required.
The advantages of high measurement accuracy, good consistency, battery power supply, easy operation
and portability make this meter the smallest and lightest flow meter in domestic and a significant portable
ultrasonic flow meter









3. Installation



Handheld Ultrasonic Liquid Flow Meter High Accuracy With Rechargeable Power Supply 0





4.Sensor selection



Sensor selection depend on the application field parameters such as the diameter of the pipe the fix method
the kind of the flow, please refer to the fix method choice chapter for details.





Type Specification Type No. Pipe DN Temp. AV Dimension

Standard

Clamp

on type

Small TS-2 DN15~DN100 -30~90℃ 45×25×32mm
Middle TM-1 DN50~DN700 -30~90℃ 64×39×44mm
Large TL-1 DN300~DN6000 -30~90℃ 97×54×53mm

Anti-high temp.

Clamp on type

Small TS-2-HT DN15~DN100 -30~160℃ 45×25×32mm
Middle TM-1-HT DN50~DN700 -30~160℃ 64×39×44mm
Large TL-1-HT DN300~DN6000 -30~160℃ 97×54×53mm

Standard clamp on

type with mounting

bracket

Small HS DN15~DN100 -30~90℃ 318×59×85mm
Middle HM DN50~DN300 -30~90℃ 568×59×85mm
Extension EB-1 DN300~DN700 -30~90℃ 188×59×49mm

Anti-high temp.

clamp on type with

mounting bracket

Small HS-HT DN15~DN100 -30~160℃ 318×59×110mm
Middle HM-HT DN50~DN300 -30~160℃ 568×59×110mm
Extension EB-1-HT DN300~DN700 -30~160℃ 188×59×49mm














Handheld Ultrasonic Liquid Flow Meter High Accuracy With Rechargeable Power Supply 1




















5.Parameters



Handheld Ultrasonic Liquid Flow Meter High Accuracy With Rechargeable Power Supply 2

Handheld Ultrasonic Liquid Flow Meter High Accuracy With Rechargeable Power Supply 3



6.Ordering information



Handheld Ultrasonic Liquid Flow Meter High Accuracy With Rechargeable Power Supply 4
