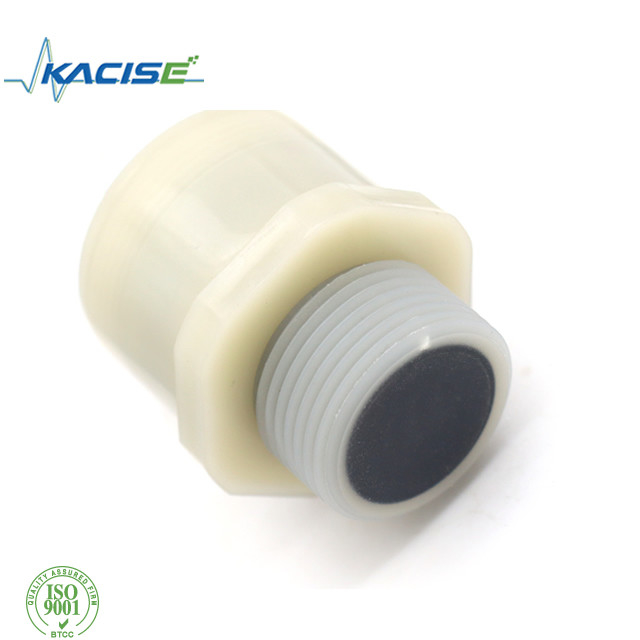

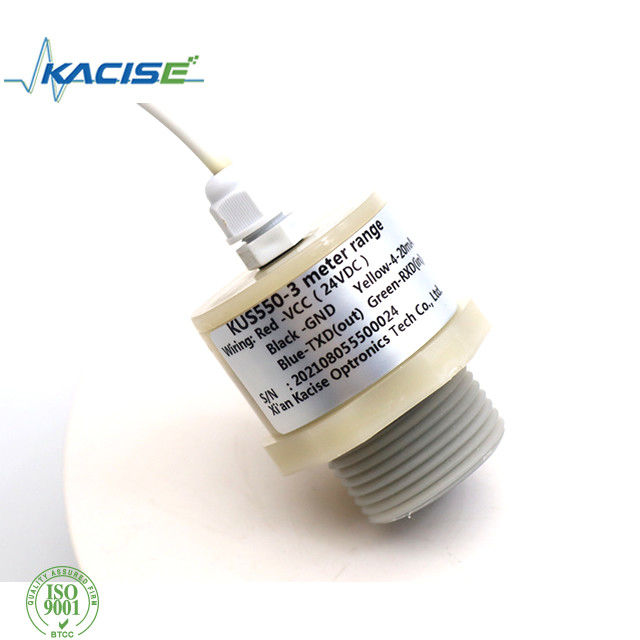

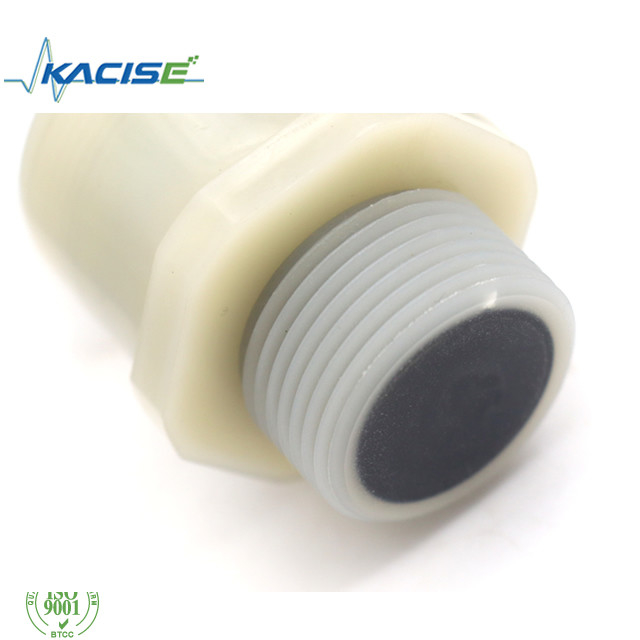

Name: KUS550 Ultrasonic Sensor, PVC Housing, 125KHZ Frequency
Brand: Xi'an Kacise Optronics Co.,Ltd.
SKU: KUS550
Price: 1,000.10 USD
Availability: InStock

Home > products > Ultrasonic Transducer Sensor >

KUS550 Ultrasonic Sensor, PVC Housing, 125KHZ Frequency

waterproof ultrasonic sensor

ultrasonic fuel level sensor

Place of Origin:

China

Brand Name:

Kacise

Certification:

Model Number:

KUS550

Document:

KUS550 series ultrasonic se....8.pdf

Request A Quote

KUS550 Ultrasonic Sensor, PVC Housing, 125KHZ Frequency

Product Details

Detection Range:

200mm~3000mm

Transducer Frequency:

125KHZ

Beam Angle:

7°±2

Power Consumption:

≤30mA

IP Grade:

IP65

Connection:

5 Pin Cable

Weight:

100g

Highlight:

waterproof ultrasonic sensor

ultrasonic fuel level sensor

Payment & Shipping Terms

Minimum Order Quantity

1 Piece

Price

Negotiable

Packaging Details

carton/wooden case, or customers requests

Delivery Time

5-8 working days

Payment Terms

L/C, D/A, D/P, T/T, Western Union, MoneyGram， Paypal

Supply Ability

10000pcs/month

10mW Resolution KWD300 Ultrasonic Noise Detection Sensor for Precise Detection

Get Best Price

KWD200 Ultrasonic Underwater Communications Sensor

Get Best Price

KWD520 M42＆M45 Hydrophone

Get Best Price

KWD510 M26 Hydrophone

Get Best Price

86--17719566736

Contact Now

Product Description

KUS550 Ultrasonic Distance Sensor

Applications

Tank level measurement
Bin level measurement
Proximity zone detection
People detection
Robot ranging sensor
Autonomous navigation
Multi-sensors navigation
Distance measuring
Long range object detection
Industrial automation

Introduction
This sensor provides very short to long-range detection and ranging, in a compact, robust PVC housing, designed to meet IP65.

Features

High sensitivity.
Compact and robust structure.
IP68 high protection rating.
Corrosion resistant casing, suitable for corrosive medium and application

Parameters

1.General specifications

Model: KUS550
Measuring range	0.25m~3m (5m customizable)KUS550A 0.15m-0.6m(1m customizable)KUS550B；
Blind spot	The dead zone of KUS550A is 0 ... 250 mm (within 250mm is unstable working zone, it is not recommended to work in this range); the dead zone of KUS550B is 0-150mm;
Supply voltage	3.3 ... 30 VDC, ripple 10 %SS
Working current	≤ 45 mA (fastest measurement speed), typical power consumption ≤ 10 mA;
Output signal	0-10V. 0-3V 0-5V /4-20mA/NPN/PNP/RS485 Analog output.
Measurement accuracy	≤1 %F.S.
Temperature compensation	Yes
Ranging resolution	0.1mm；

2. Other instructions

Electrical connection	5-core cable (analog output), 6-core cable (switch output)；
Protection class	IP67
shell material	PVC /PVDF/PTFE/ABS

Dimensions

KUS550 Ultrasonic Sensor, PVC Housing, 125KHZ Frequency 0

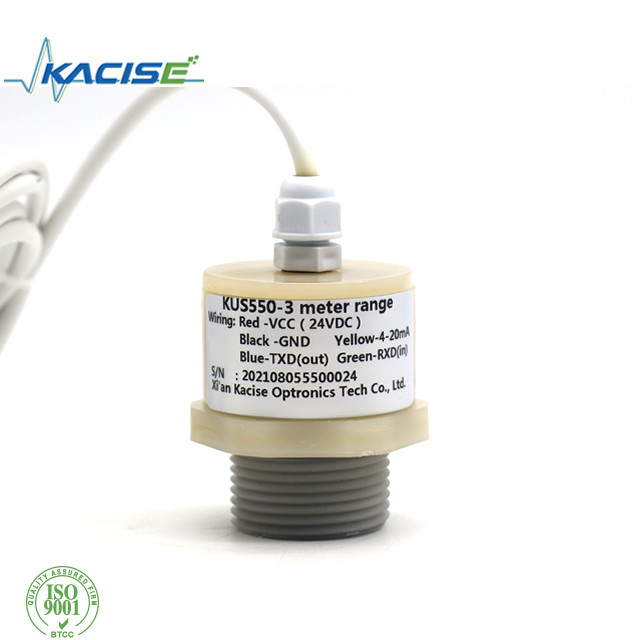

Wiring

KUS550 Ultrasonic Sensor, PVC Housing, 125KHZ Frequency 1
