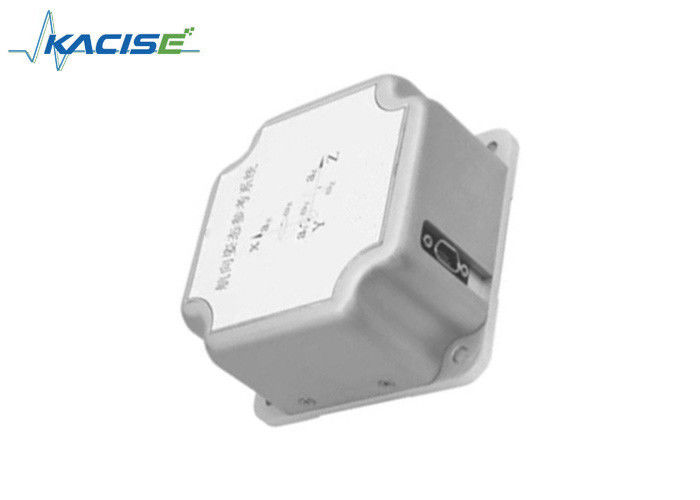

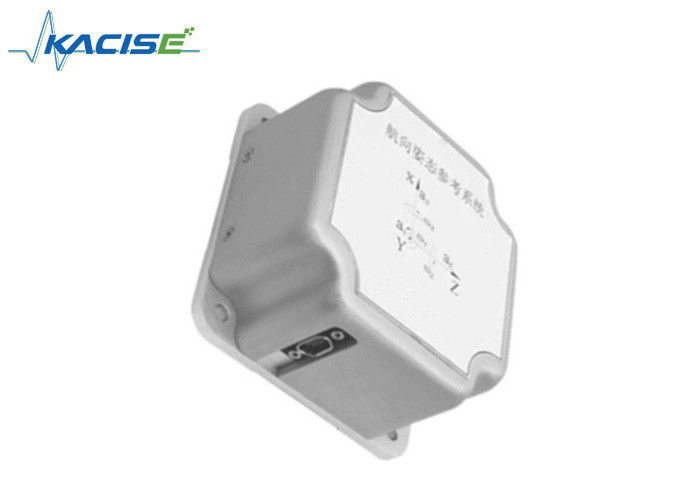

IP67 Protection QJJ200 Series Tilt Sensor For Measuring Angle Surface High Vibration Resistance

IP67 Protection QJJ200 Series Tilt Sensor For Measuring Angle Surface High Vibration Resistance

  • IP67 Protection QJJ200 Series Tilt Sensor For Measuring Angle Surface High Vibration Resistance
  • IP67 Protection QJJ200 Series Tilt Sensor For Measuring Angle Surface High Vibration Resistance
IP67 Protection QJJ200 Series Tilt Sensor For Measuring Angle Surface High Vibration Resistance
Product Details:
Place of Origin: China
Brand Name: Kacise
Certification: CE
Model Number: QJJ200
Payment & Shipping Terms:
Minimum Order Quantity: 1 piece
Price: Negotiable
Packaging Details: each unit has individual box and all boxes are packed in standard packages or customers requests available
Delivery Time: 5-8 working days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram, Paypal
Supply Ability: 10000pcs/month
Contact Now
Detailed Product Description
Range: ± 30 °, ± 90 °, ± 180 °, 0 ° ~ 360 ° Supply Voltage: DC 8 ~ 30 V
Power: <0.5 W Storage Temperature: -55 ℃ ~ 100 ℃
Operating Temperature: -45 ℃ ~ 85 ℃ Dimensions (mm): 55 × 37 × 24
Weight (g): <100 Bandwidth: ≥ 10 Hz
High Light:

inclinometers and tilt sensors

,

electronic tilt sensor

                                                                                  QJJ200 Series tilt sensor





Product introduction
QJJ200 Series tilt sensor is MEMS tilt sensor for measuring the angle between the measured surface and the horizontal plane. Embedded MCU control system, the compensation temperature range within (-45 ℃ ~+85 ℃), meanwhile doing the secondary non-linear correction to improve the overall accuracy of the sensor.
For dual-axis tilt sensor, QJJ200 adopt the definition of inertial navigation system of pitch angle and roll angle calculation method, other than a simple 2-axis mechanical combination to meet the measurement needs of a variety of control areas.
This sensor adopt to the sensitive gravitational theory, which can output the current relative horizontal attitude angle in real time, easy to install and use, resistance to external electromagnetic interference, can be adapted to the harsh environment and long-term work in the industrial. This kind of tilt sensor is ideal for industrial automation and control, platforms, and other areas of attitude measurement. The sensors are mainly suit for measuring static and dynamic measurement of slow change, not suit for dynamic measurements for rapid change.



Feature
Wide power input range, DC 8 ~ 30V
Wide operating temperature, -45 ℃ ~ +85 ℃
Resolution better than 0.1 °
Long-term stability better than 0.3 °
IP67 protection class
High vibration resistance> 10000g
Range ± 30 °, ± 90 °, ± 180 °, 0 ° ~ 360 ° (vertical plane rotation) Optional
Output: analog voltage 0 ~ 5V, current 4 ~ 20mA, RS232, RS485 optional
Output protocol: RS232/RS485 digital output mode for the product, the output data protocol according to user
needs, a standard Modbus-RTU protocol or user-defined protocol selected.







Performance indicators

Performance

Parameters

Range ± 30 °, ± 90 °, ± 180 °, 0 ° ~ 360 °
Resolution <0.1 °
Zero error <0.3 °
Zero Repeatability <0.15 °
After removing the zero error <0.35 °
Bandwidth ≥ 10 Hz
Data update frequency 5 ~ 100 Hz (optional)

Electrical

Specifications

Supply voltage DC 8 ~ 30 V
Power <0.5 W
Output Interface

RS485/RS232 / analog voltage 0-5V / analog current 4-20mA

(optional)

Environmental

Indicators

Storage temperature -55 ℃ ~ 100 ℃
Operating temperature -45 ℃ ~ 85 ℃
Shock 10000 g
Dimensions (mm) 55 × 37 × 24
Weight (g) <100



Ordering information
Item: QJJ200
Measuring axis: 1). single,
                            2). biaxial,
                           3). vertical plane rotation
Measuring range: 030: ±30°
                     090: ±90°
                     180: ±180°
                     360: ±360°
Output: AOV: Voltage 0~5V
             AOI: current 4~20mA
             232: RS232 interface
             485: RS485 interface
            CAN: CAN interface
For example: QJJ200-2)-090-485, Biaxial/±90°range/RS485 interface tilt sensor



Dimension
Housing material: aluminum oxide matte black Installation: 4 M4 screws
Connector: 50cm straight lead
