12M range ultrasonic level sensor/anti-corrosion industrial sensor

12M range ultrasonic level sensor/anti-corrosion industrial sensor

  • 12M range ultrasonic level sensor/anti-corrosion industrial sensor
  • 12M range ultrasonic level sensor/anti-corrosion industrial sensor
  • 12M range ultrasonic level sensor/anti-corrosion industrial sensor
12M range ultrasonic level sensor/anti-corrosion industrial sensor
Product Details:
Place of Origin: China (Mainland)
Brand Name: Kacise
Certification: certificate of explosion-proof, CE
Model Number: KUA-40-12PB-F
Payment & Shipping Terms:
Minimum Order Quantity: 1 Piece/Pieces
Packaging Details: each unit has individual box and all boxes are packed in standard packages or customers requests available
Delivery Time: 9 working days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 3000 Piece/Pieces per Month
Contact Now
Detailed Product Description
Minimum Impedance: 390Ω±20% Capacitance: 5200pF±20% @1KHz
Sensitivity: Emits Voltage:700Vpp,distance 0.6m, Echo Amplitude 450mV Working Voltage: Peak Point Voltage<1500VPP
Working Temperature: -40~+80℃ Pressure: ≤3kg Or 0.3MPa
Model: KUA-40-12PB-F Frequency: 40KHz±5%
Range: 0.5~12m
High Light:

waterproof ultrasonic sensor

,

ultrasonic fuel level sensor

12m Anti-corrosion Transducer Model PB(remote: KUA-40-12PB-F


Introduction


The ultrasonic level meter is a digital device controlled by a microprocessor for measuring levels. During measurement, the sensor (transducer) emits ultrasonic pulses, which are then reflected by the liquid surface and received by the same sensor. The signals are converted into electrical signals through a piezoelectric crystal, and the distance between the sensor and the liquid surface is calculated based on the time it takes for the sound wave to travel.



Due to its non-contact measurement method, this device is versatile and can be used for measuring the height of various liquid and solid materials. The KUA-40 liquid level sensor is specifically designed for oil and chemical liquid level measurement, offering high accuracy, corrosion resistance, anti-collision features, and an IP68 protection grade.



However, in certain environmental conditions, caution is advised:

1. Presence of foam in liquid/solid.
2. Strong voltage, current, or electromagnetic interference in the vicinity; it's advisable to avoid high voltage, current, and strong electromagnetic interference.
3. Harsh weather conditions such as strong winds or intense sunlight.
4. Environments with strong vibrations.
5. Areas with volatile liquids and significant water vapor.
6. Measurement of crystalline liquids.
7. In the presence of these challenging field conditions, careful consideration is necessary, as the measurement accuracy may decrease, and the data could be unstable. In such scenarios, the use of an ultrasonic level gauge for measurement is generally not recommended.



Specification

Item Parameters
Name 12m Anti-corrosion Transducer Model PB
Model KUA-40-12PB-F
Frequency 40KHz±5%
Range 0.5~12m
Minimum
impedance
390Ω±20%
Capacitance 5200pF±20% @1KHz
Sensitivity emits voltage:700Vpp,distance 0.6m,
echo amplitude 450mV
Working voltage Peak point voltage<1500VPP
Working
temperature
-40~+80℃
Pressure ≤3kg or 0.3MPa
Angle (Beam width) half-power angle@-3dB:10°±2,
Sharpness angle: 23°±4
Housing material POM, PVDF
Usage ultrasonic level sensor, monitor,
anti-collision, security
IP grade IP68
Weight 950g±5%(cable length: 10m)

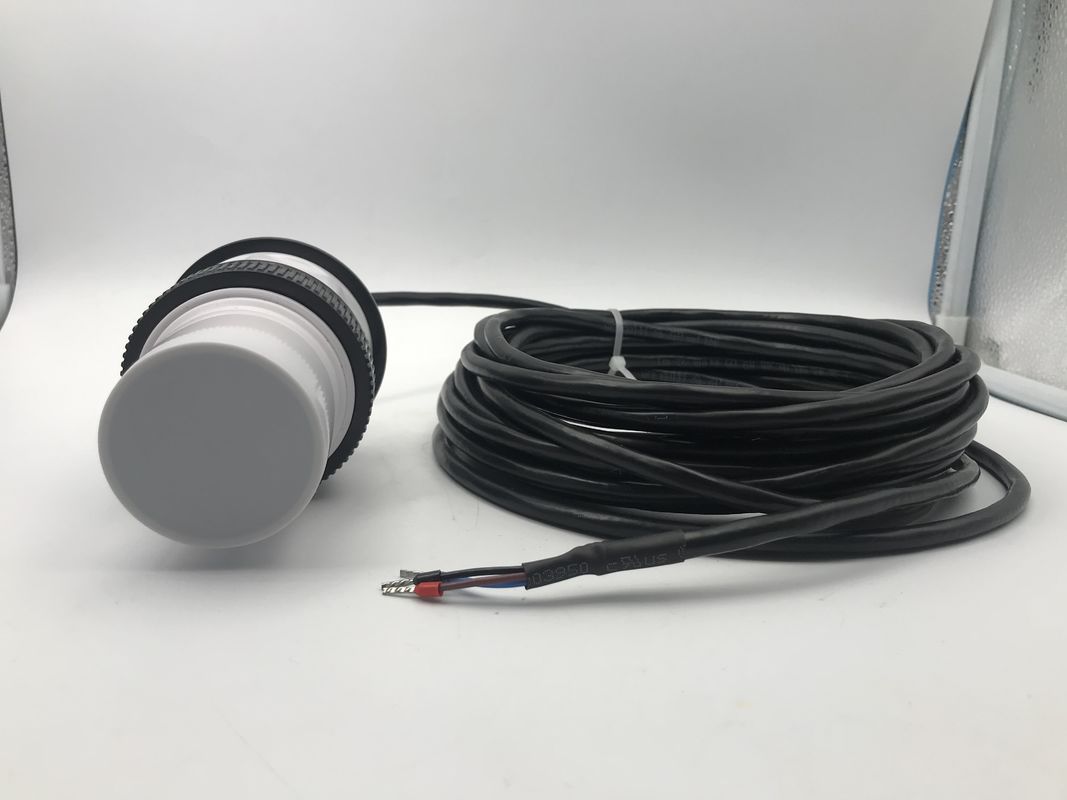

12M range ultrasonic level sensor/anti-corrosion industrial sensor 0

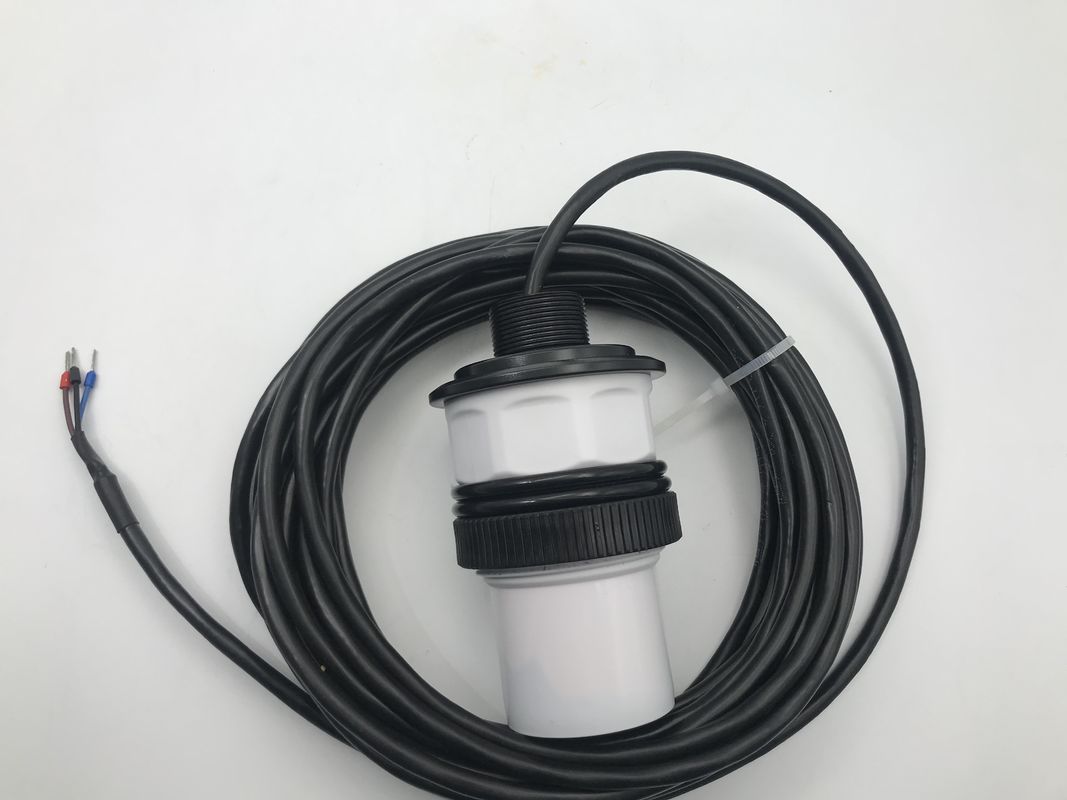

12M range ultrasonic level sensor/anti-corrosion industrial sensor 1

12M range ultrasonic level sensor/anti-corrosion industrial sensor 2
