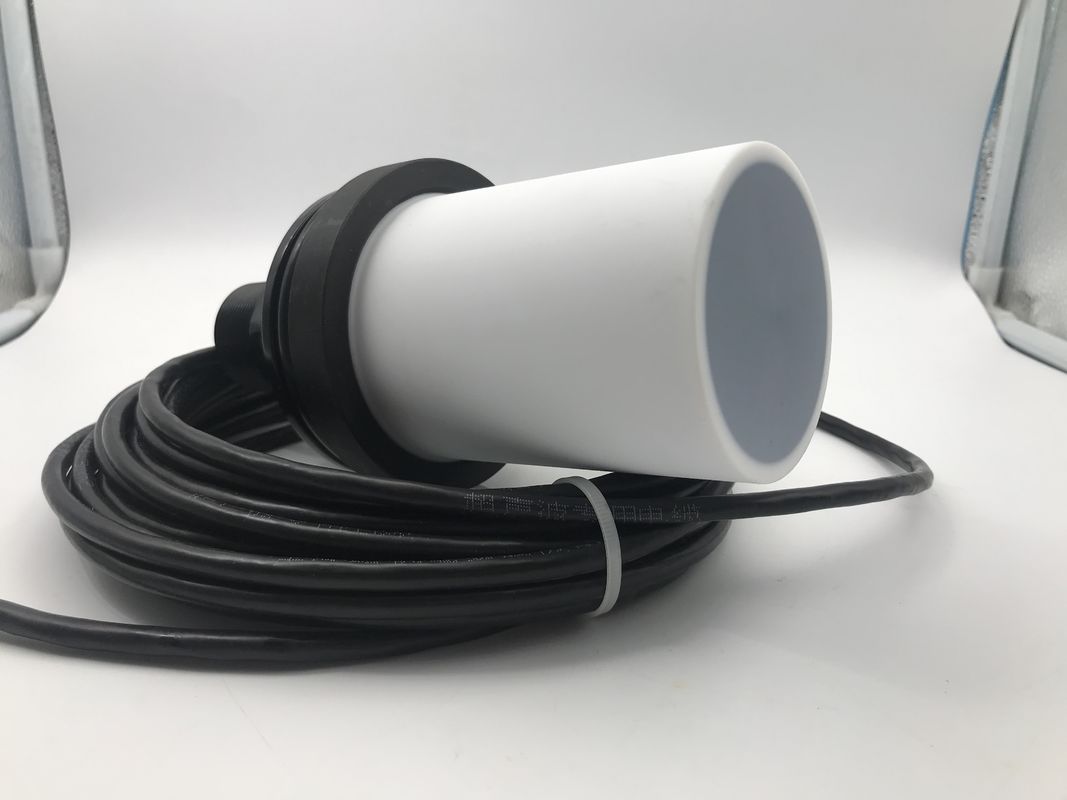

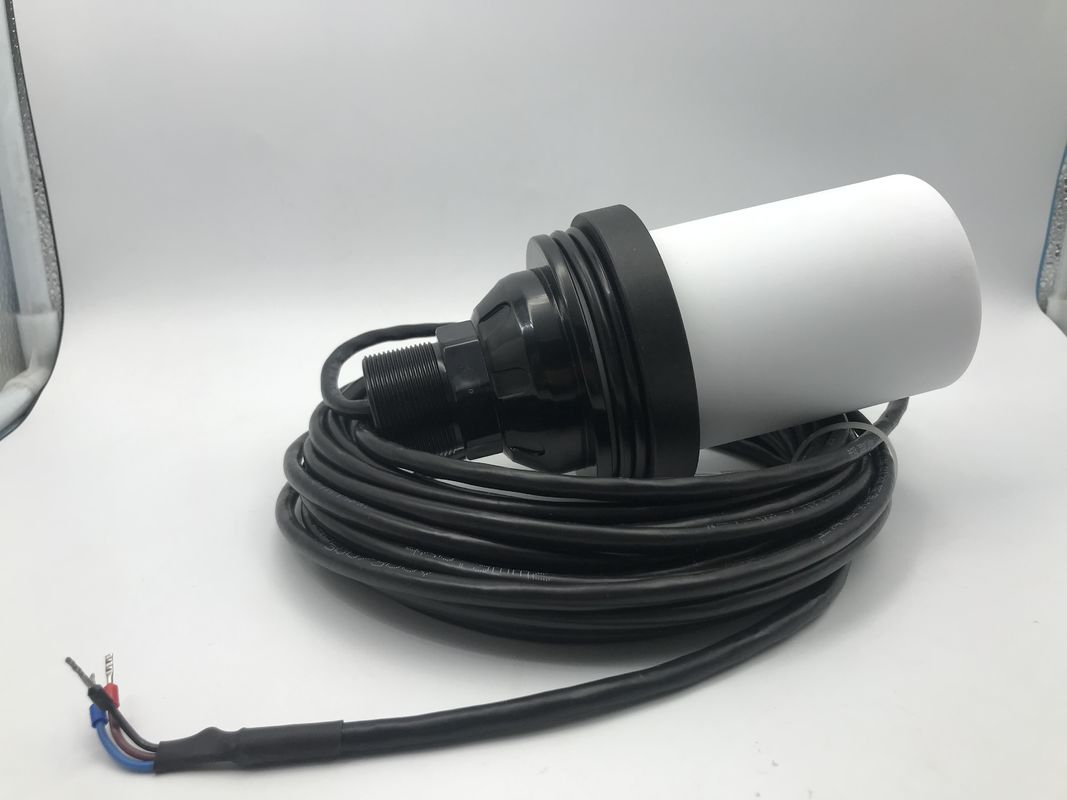

Name: Waterproof Ultrasonic Transducer Sensor PTFE Housing Material With 0.5 - 12m Range
Brand: Xi'an Kacise Optronics Co.,Ltd.
SKU: KUA-34-12FC-F
Price: 1,000.10 USD
Availability: InStock

Home > products > Ultrasonic Transducer Sensor >

Waterproof Ultrasonic Transducer Sensor PTFE Housing Material With 0.5 - 12m Range

waterproof ultrasonic sensor

ultrasonic fuel level sensor

Place of Origin:

China (Mainland)

Brand Name:

Kacise

Certification:

certificate of explosion-proof, CE

Model Number:

KUA-34-12FC-F

Request A Quote

Waterproof Ultrasonic Transducer Sensor PTFE Housing Material With 0.5 - 12m Range

Product Details

Frequency:

34KHz±5%

Range:

0.5～12m

Minimum Impedance:

930Ω±20%

Capacitance:

6900pF±20％ @1KHz

Pressure:

≤3kg Or 0.3MPa

Housing Materia:

PTFE

IP Grade:

IP68

Working Temperature:

-40～+80℃

Highlight:

waterproof ultrasonic sensor

ultrasonic fuel level sensor

Payment & Shipping Terms

Minimum Order Quantity

1 Piece/Pieces

Packaging Details

each unit has individual box and all boxes are packed in standard packages or customers requests available

Delivery Time

9 working days

Payment Terms

L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability

3000 Piece/Pieces per Month

KUS-W80 Underwater Distance Sensor 200kHz Transducer Frequency and Low No-load Current for Underwater Distance Measurement

Get Best Price

KUS-W50 Underwater Distance Sensor Reverse Polarity Protection And 0.6m Blind Area For Seamless Underwater Monitoring

Get Best Price

KWD200 Ultrasonic Underwater Communications Sensor

Get Best Price

High Accuracy KWD400 360-Degree Scanning Sonar Power Consumption ≤12W

Get Best Price

86--17719566736

Contact Now

Product Description

12m Range anti-corrosion Transducer Model C(remote: KUA-34-12FC-F)

Item	Parameters
Name	12m Range anti-corrosion Transducer Model C
Model	KUA-34-12FC-F
Frequency	34KHz±5%
Range	0.5～12m
Minimum impedance	930Ω±20％
Capacitance	6900pF±20％ @1KHz
Sensitivity	emits voltage:650Vpp,distance 0.6m, echo amplitude 350mV
Working voltage	Peak point voltage＜1500VPP
Working temperature	-40～+80℃
Pressure	≤3kg or 0.3MPa
Angle	(Beam width) half-power angle@-3dB:8°±2, Sharpness angle: 18°±4
Housing material	PC, PTFE
Usage	ultrasonic level sensor, monitor, anti-collision, security
IP grade	IP68
Weight	1370g±5％(cable length: 10m)

Waterproof Ultrasonic Transducer Sensor PTFE Housing Material With 0.5 - 12m Range 0

Company Information

Xi'an Kacise is qualified with ISO 9001-2008, GJB 9001B-2009, CE, intrinsic safety explosion-proof and isolated safety explosion-proof certificates, etc. which ensure that our products comply with international standards.

We have been specializing in manufacturing pressure, level and flow measuring instruments and related products for 10 years.
