Stable Mounting Wire Rope Shock Absorber Cable Mount Helical Loop High Strength

Stable Mounting Wire Rope Shock Absorber Cable Mount Helical Loop High Strength

  • Stable Mounting Wire Rope Shock Absorber Cable Mount Helical Loop High Strength
  • Stable Mounting Wire Rope Shock Absorber Cable Mount Helical Loop High Strength
Stable Mounting Wire Rope Shock Absorber Cable Mount Helical Loop High Strength
Product Details:
Place of Origin: China (Mainland)
Brand Name: Kacise
Model Number: GR3
Payment & Shipping Terms:
Minimum Order Quantity: 1
Packaging Details: each unit has individual box and all boxes are packed in standard packages or customers requests available
Delivery Time: 5-8 working days
Payment Terms: L/C, D/A, D/P, T/T
Supply Ability: 1000 Pieces per Week
Contact Now
Detailed Product Description
Function: Return Air Working Temperature: -55~120
Relative Product: Backdraft Damper Model: JGX
Shock Rsistance: 20g/11ms Name: Wire Rope Shock Absorber
High Light:

wire rope shock absorber

,

cable shock absorber

Wire Rope Base Isolator Cable Mount Helical Loop Vibration Shock electronics medical equipment avionics helical cable

Product Description

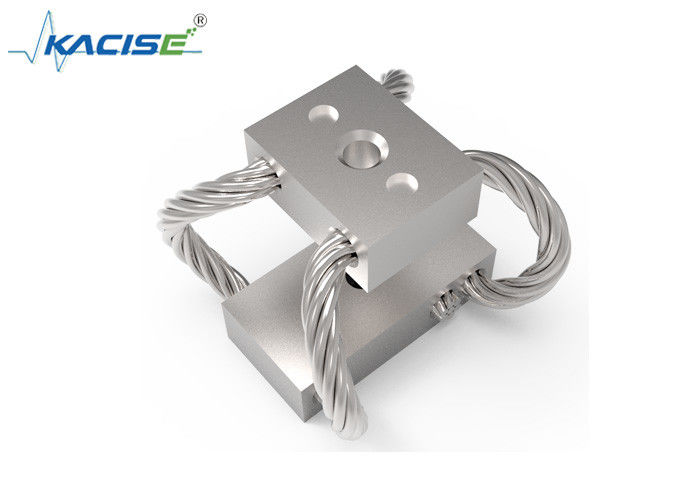

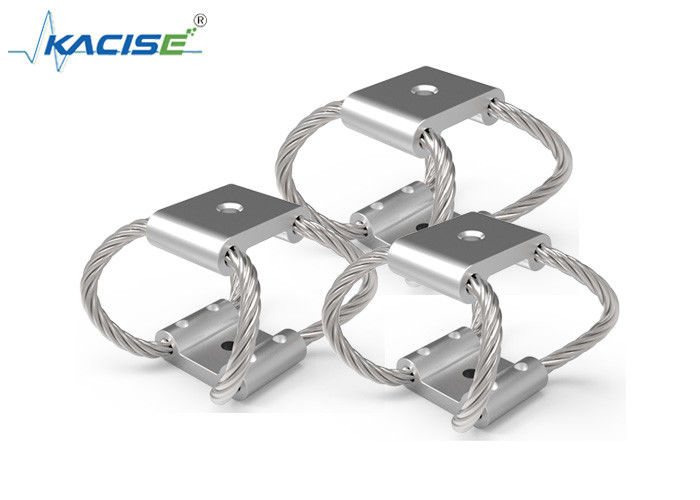

Wire rope isolator is made of wire rope wound into a spiral shape and fixed between two metal plates arranged along the nut. Its stiffness and damping depend on the diameter of wire rope, the number of strands, the number of turns and the winding way and size. It is a new type of vibration isolator with nonlinear characteristics and dry friction damping. It uses the steel wire rope which is wound in a certain direction as the elastic element. It has obvious hysteresis characteristics, and its energy dissipation comes from the friction, extrusion and slip between the steel wire.



GR3 has corrosion resistance, impact resistance, high and low temperature resistance and other properties. GR3 is the main application of photography, the purpose is to reduce the photographic equipment due to sudden vibration caused by picture quality reduction, so as to achieve the purpose of barrier-free clear imaging and photography.



Options
  • Iridited aluminum bars are standard; however, other materials and finishes can be used.
  • Variations in cable configuration are available if the standard is not suitable.

Size Chart



Stable Mounting Wire Rope Shock Absorber Cable Mount Helical Loop High Strength 0





Applications:



Helical isolators protect a broad range of loads:

  • Very fragile (electronic equipment, computer hardware, optical devices).
  • Highly substantial (heavy engines, machinery––during transit or while in operation, even in a moving vehicle).

See table below for more details.



Applications Typical Equipment Protection From Operational Advantages
Shipboard Electronics, Computers, Machinery Explosive blast, Inherent vibration, Storms Long life, Maintenance free,Temperature extremes, Corrosion resistance, All axes protection
Rough Terrain Vehicles Instrumentation, Generators, Electronics Rough terrain, Poor road conditions, Collision Long life, Maintenance free, Temperature extremes, Ozone, Radioactivity, UV Radiation
Aircraft Electronics, Computers High-G maneuvering, Hard landings, Turbulent air Temperature and altitude extremes, Lightweight
Shipping Containers Optics, Instruments, Missiles, Electronics Transit, Handling drop, Loading/Unloading Long life, Maintenance free, Exposure to moisture, Repeated use
Industrial Equipment Centrifuge, Dryers, Pumps Unbalanced dynamic loads, Fluid hammer, Inherent vibration, Foundation weakness Long life, Maintenance free, Corrosive environments
Ordnance Equipment Missile launcher, Tank artillery, Computer controls, Electronics Rough terrain, Railroad humping, Transit Maintenance free, Temperature extremes, Nearby blast
Medical Equipment Mechanical equipment necessary for patient care Vibration from moving parts, Mobile carts-Transport shock Maintenance free, No outgassing, Can be sterilized
Chimneys Chimneys, Scrubbers, Measuring devices Wind causing resonant frequencies, Stack gas causing turbulence near scrubber, etc. Maintenance free, Temperature extremes, Corrosive environments




Stable Mounting Wire Rope Shock Absorber Cable Mount Helical Loop High Strength 1
