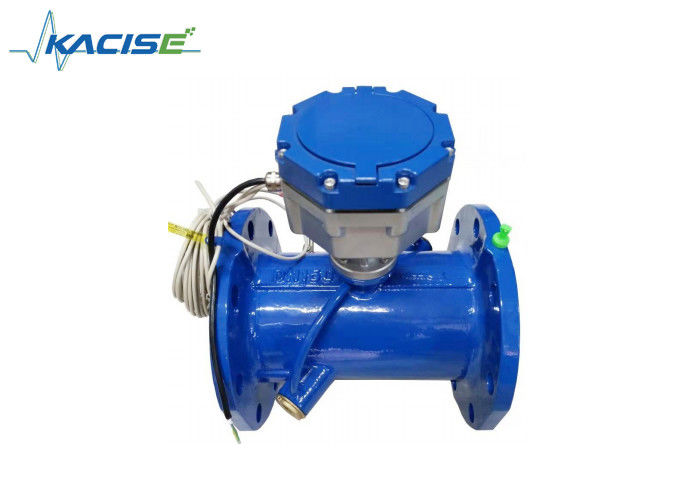

KACISE Cheap Remote Reading Mbus RS485 Infrared Ultrasonic Heat Flow Meter hot and cold meter adopt most advanced non-magnetic technology and it features elegant appearance, accurate measurement, convenient management, steady operation, strong anti-erosion, and long using life, which is secure and economic.
It is widely used in the heat system with concentrated heat supplying management, separate household data collecting management. Varies of communication modes are optional according to the users’ need.
Feature of Cheap Remote Reading Mbus RS485 Infrared Ultrasonic Heat Flow Meter hot and cold meter
- Measure Heat.
- Show supply/return water temperature and differential temperature.
- Display pile flow measure and instantaneous flow measure.
- Running time display.
- Cold measure and display (for heat/cold Ultrasonic Heat Meter.
led display
Technical Specification of Cheap Remote Reading Mbus RS485 Infrared Ultrasonic Heat Flow Meter hot and cold meter
| Diameter | Min Flow | Quantity of Flow | Max Flow | Length |
| qmin(m³/h) | qp(m³/h) | qmax(m³/h) | mm | |
| DN15 | 0.03 | 1.5 | 3 | 110 |
| DN20 | 0.05 | 2.5 | 5 | 130 |
| DN25 | 0.07 | 3.5 | 7 | 160 |
| DN32 | 0.12 | 6 | 12 | 180 |
| DN40 | 0.2 | 10 | 20 | 200 |
| Measurement Accuracy | CJ128-2007<Heat Meter>Class 2 | |||
| Connection | DN15~DN40 Threaded connection/DN50~DN300 Flange connection | |||
| Pressure Loss | ≤0.02MPa | |||
| Maximum Working Pressure(MWP) | 1.6MPa | |||
| Flow Measuring Range | 1:100 | |||
| Temperature Sensor | 1.5m standard a pair of PT1000 Temperature Sensor (cable length could be changed) | |||
| Data Storage | Continuous store of 18 months record | |||
| Power-off Protection | After power-off, meter could save all the record of before flow rate and the corresponding time, after power back, it recovery measure function automatically, and ensure the time continuation | |||
| Remote Transmission | MBUS/RS-485 | |||
| Power Supply | High Power Lithium battery | |||
| Protection Class | IP67 (IP68 need to modified) | |||
| Environmental Class | Class B | |||
| Temperature Range | (5~95)℃ | |||
| Temperature Difference | (3~90)K | |||
| Installation Way | Inflow or Return flow(Default is Inflow, for return flow need to indicate when ordering) | |||
| Installation Position | Horizontal / Vertical | |||
| Permanence | Service cycle≥6 years | |||
| Display | 8-bit LCD display | |||
| Anti-magnetic Disturbance |
When the intensity of magnetic field interference is not more than 100 ka/m, should not affect water meter measurement and remote transmission characteristics |
|||
