Place of Origin: | China (Mainland) |
Brand Name: | Kacise |
Model Number: | KUHM2100 |
Minimum Order Quantity: | 1 |
---|---|
Price: | Negotiable |
Packaging Details: | each unit has individual box and all boxes are packed in standard packages or customers requests available |
Delivery Time: | 5-8 working days |
Payment Terms: | T/T, Western Union, MoneyGram |
Supply Ability: | 1000 Pieces per Week |
Theory: | Ultrasonic Heat Meter | Power Suppply: | 3.6V Lithium Batter |
---|---|---|---|
Accuracy: | Class B | Usage: | Temperature Sensor |
IP Class: | IP68 | Temperature Sensor: | Pt100 |
High Light: | portable clamp on flow meter,ultrasonic flow transducer |
Ultrasonic heat meter The general term for the heat meter using ultrasonic flowmeters. It is the use of ultrasonic wave in the flow of the fluid propagation, the flow velocity of the flow and the spread of the reverse water velocity difference, so as to calculate the flow of fluid. No special requirements for the medium; The accuracy of flow measurement is not affected by temperature, pressure, density and other parameters of the measured flow body. Ultrasonic heat meter has two forms, one is the direct beam type, also called the direct beam type, the working principle is: ultrasonic transducer directly transmits and receives signals to determine the flow. The other is the reflection type also called flow, the working principle is the ultrasonic transducer through the reflection plate plane reflection speed to determine the flow.Can be widely used in home heating, petrochemical, thermoelectric units, metallurgical machinery, geological exploration and other industries.

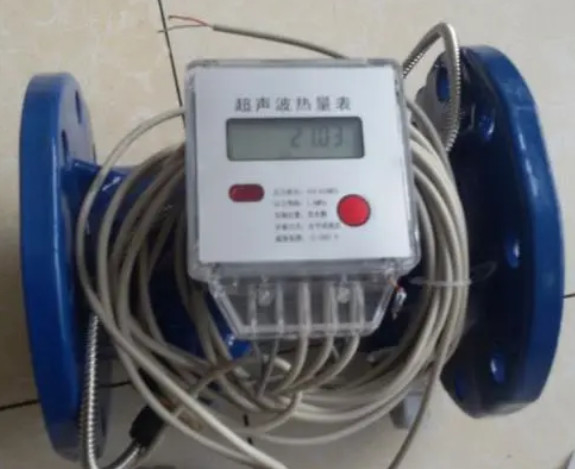

KACISE Cheap Remote Reading Mbus RS485 Infrared Ultrasonic Heat Flow Meter hot and cold meter adopt most advanced non-magnetic technology. With M-BUS, RS485 interface, can realize online data remote communication, centralized control. It has the advantages of convenient reading, simple operation, convenient installation, dust-proof, moisture-proof and water-proof.
Product feature
1. Measure Heat.
2. Show supply/return water temperature and differential temperature.
3. Display pile flow measure and instantaneous flow measure.
4. Running time display.
5. Cold measure and display (for heat/cold Ultrasonic Heat Meter.
led display
Technical Specification of Cheap Remote Reading Mbus RS485 Infrared Ultrasonic Heat Flow Meter hot and cold meter
Diameter | Min Flow | Quantity of Flow | Max Flow | Length |
qmin(m³/h) | qp(m³/h) | qmax(m³/h) | mm | |
DN15 | 0.03 | 1.5 | 3 | 110 |
DN20 | 0.05 | 2.5 | 5 | 130 |
DN25 | 0.07 | 3.5 | 7 | 160 |
DN32 | 0.12 | 6 | 12 | 180 |
DN40 | 0.2 | 10 | 20 | 200 |
Measurement Accuracy | CJ128-2007<Heat Meter>Class 2 | |||
Connection | DN15~DN40 Threaded connection/DN50~DN300 Flange connection | |||
Pressure Loss | ≤0.02MPa | |||
Maximum Working Pressure(MWP) | 1.6MPa | |||
Flow Measuring Range | 1:100 | |||
Temperature Sensor | 1.5m standard a pair of PT1000 Temperature Sensor (cable length could be changed) | |||
Data Storage | Continuous store of 18 months record | |||
Power-off Protection | After power-off, meter could save all the record of before flow rate and the corresponding time, after power back, it recovery measure function automatically, and ensure the time continuation | |||
Remote Transmission | MBUS/RS-485 | |||
Power Supply | High Power Lithium battery | |||
Protection Class | IP67 (IP68 need to modified) | |||
Environmental Class | Class B | |||
Temperature Range | (5~95)℃ | |||
Temperature Difference | (3~90)K | |||
Installation Way | Inflow or Return flow(Default is Inflow, for return flow need to indicate when ordering) | |||
Installation Position | Horizontal / Vertical | |||
Permanence | Service cycle≥6 years | |||
Display | 8-bit LCD display | |||
Anti-magnetic Disturbance |
When the intensity of magnetic field interference is not more than 100 ka/m, should not affect water meter measurement and remote transmission characteristics |
Xi'an Kacise is certified by ISO 9001-2008, GJB 9001B-2009, CE, intrinsic safety explosion-proof and isolated safety explosion-proof, etc. which assure our products are conform to the international standards.
We have been specializing in manufacturing pressure, level and flow measuring instruments and related products for 10 years. We have experienced technical and management personnel, through the efforts of our entire staff, we have become a professional measuring instrument manufacturer and solution provider. And we are continuously trying to improve product quality.
Currently, Kacise sensor is already exported to America, Spain, Australia, Chile and 20 other countries and regions, and received many favorable feedbacks. Our overseas distributers are also increasing. We regards “reasonable prices, efficient production time and good after-sales service” as our tenet, and hope to cooperate with more customers for mutual development.
2. Q: Are you a trade company or a manufacturer?
A: We are an ISO approved manufacturer specialized in level and flow measuring instruments.
OEM & ODM service are available. Welcome to visit us in China.
3. Q: What is your MOQ?
A: To start our cooperation, sample order is acceptable.
4. Q: What is your delivery date?
A: The delivery date is about 3-15 working days after receipt of payment.
5. Q: What is your payment terms?
A: We support T/T, PayPal and Trade Assurance.
For mass production order, it is 30% deposit in advance and 70% balance before shipment.
6. Q: What is Trade Assurance payment method:
A: It’s a free service which can protect your orders from payment to delivery.
And we now have USD104,000.00 of caution money to assure your orders.
7. Q: Do you have a warranty for Cheap Remote Reading Mbus RS485 Infrared Ultrasonic Heat Flow Meter hot and cold meter?
A: Yes, we have the warranty of 12 months.
