Industrial Wire Rope Shock Absorber

Industrial Wire Rope Shock Absorber

  • Industrial Wire Rope Shock Absorber
  • Industrial Wire Rope Shock Absorber
Industrial Wire Rope Shock Absorber
Product Details:
Place of Origin: China (Mainland)
Brand Name: Kacise
Certification: ISO9001:2008
Model Number: JGX1 series
Payment & Shipping Terms:
Minimum Order Quantity: 10ps
Price: Negotiable
Packaging Details: each unit has individual box and all boxes are packed in standard packages or customers requests available
Delivery Time: 5-8 work day
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram,paypal
Supply Ability: 10000 Pieces per Week
Contact Now
Detailed Product Description
Features: Anchoring Holes; Oil Resis Size:: To Machine
Characteristic: Wide Working Frequency, Long Li Packing:: Standard Packing
Material:: Stainless Steel And Aluminum Application:: Machine Parts And Communic
Color:: Blackish Green And Silver Pai Type: Metal And Mesh Isolator
High Light:

vibration isolation dampers


cable shock absorber

Wide working frequency Stainless Steel and aluminum Metal and Mesh Isolator

1. Product Description


With featuring of using the combined structure of couple springs and particular friction disk, JMZ Series Friction Damping Isolators have wonderful anti-vibration and anti-shock performance in any random directions.

Besides the characteristics of wide working frequency, long life span, JMZ Series can be used in harsh environments because of their outstanding performance of high and low temperature resistance, moisture-proof, salt moist-proof and mildew-proof.

JMZ Series apply to all kinds of onboard radios, instruments and meters, which belong to communication enterprises, institutes, universities and colleges.

Small, lightweight unit isolators for airborne, vehicular and industrial applications. The high damping and nonlinear characteristics of MET-L-FLEX load carrying element and limiter pads in the all metal JMZ-1-1.0 and JMZ-1-3.5 Series Isolators assure controlled shock and vibration isolation protection for mounted equipment.



2. Specific Applications


Model /Dimension B±0.5 A±0.1 H
H±0.5 T d d+0.3
d2 D PW
JMZ-1©-1.0 35 26 -40 29 11 M4-7H 3 14 28 0.1
JMZ-1©-1.0A 0.13
JMZ-1©-1.5 0.1
JMZ-1©-1.5A 0.13
JMZ-1-1.4 44 35 -50 36 SW14 M5-7H 5.1 / 39.5 aluminum

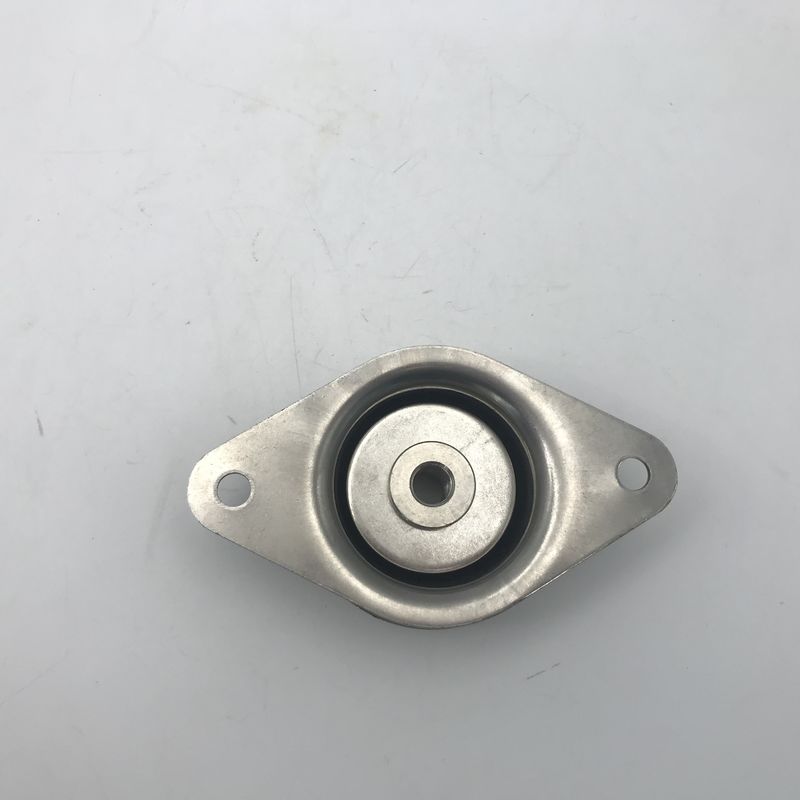

Industrial Wire Rope Shock Absorber 0

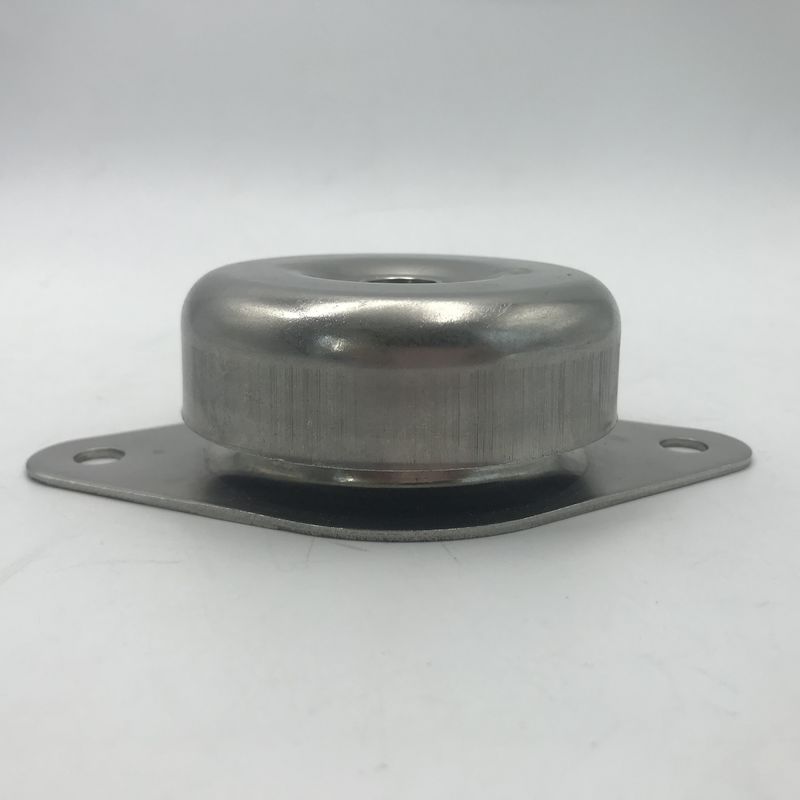

Industrial Wire Rope Shock Absorber 1


3.Technical Parameters


Model/Technical Parameters JMZ-1©-1.0 JMZ-1©-1.5 JMZ-1-2.0 JMZ-1-3.0 JMZ-1-3.5
Nominal Load of Pz Direction (kg) 1 1.5 2 3 3.5
Displacement Manification (mm) <2 2±1.5 3±1.5
Frequency of Vibrating Isolation (Hz) <15
Working Temperature (℃) -65~+120
Impact test 30g 11ms /up to the summit of G ≤0.9Km/S²
Vibration Test Up to GJB180-16
Validity (year ) 3
Duration(year) 3



4. Our Services


Pressure sensor can be customized by your special request, We can supply technical consulting service for your user.
The quality principle: Quality is the best sales
Payment: We accept T/T, PayPal, Western Union, MoneyGram , Escrow

1. All parts will be shipped out within 1 - 3 working days after confirm the payment
2. DHL / FEDEX / UPS / EMS / TNT / China Post /Aramex
3. We are not responsible for force majeure accidents, delays or other issues, like the shipping service.


After-sales service

We can offer good technical support and good warranty for you after service as professional manufacturer.


Warranty: One year

During the warranty, if the goods after delivery are damaged with error caused only by itself quality problem, the goods can be returned for free repair and maintenance. however, if the goods is damaged with error caused by user’ s man-made and force majeure factor, we will be not responsible for free repair and maintenance.

5. Packaging & Shipping

1: Usually we ship your order by sea or by air...
2: We do our best to ship your order within 1 week after receiving your payment
3: We'll tell you the tracking number once your order has been sent.



1: Inner packing: opp bag, then carton box for each product.
2: Outer packing: export standard carton or wooden box, foam outside protecting the goods against damage.


1: We accept T/T Bank transfer, L/C, Western Union, Paypal
