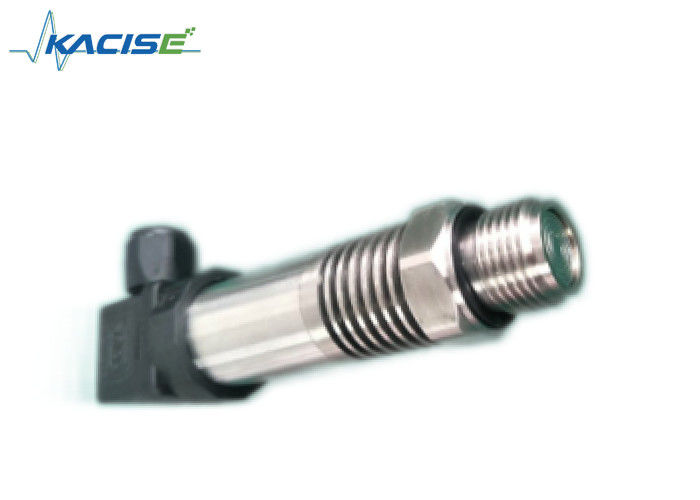

High Temperature Precision Pressure Sensor 0 - 500m Range For Air Dynamics Research

High Temperature Precision Pressure Sensor 0 - 500m Range For Air Dynamics Research

high accuracy pressure sensor

piezoresistive pressure transmitter

Place of Origin:

CHINA

Brand Name:

KACISE

Certification:

CE

Model Number:

GXPS140

Contact Us
Request A Quote
Product Details
Range:
0~500m
Accuracy:
±0.25%F.S, ±0.5%F.S, ±1.0%F.S
Output:
4-20mA, 0~5V, 1~5V, 0~10V
Material:
SS, 316L
Name:
Precision Pressure Sensor
Model:
GXPS140
Highlight:

high accuracy pressure sensor

,

piezoresistive pressure transmitter

Payment & Shipping Terms
Minimum Order Quantity
1
Delivery Time
3-8 working days
Payment Terms
L/C, D/A, D/P, T/T, Western Union, MoneyGram, Paypal
Supply Ability
1000000pcs/month
Product Description

High temperature Hirschman connector pressure sensor water tank pressure transmitter MEMS diaphragm 4-20mA output



Introduction

GXPS140 micro pressure transducer uses micro machining technology to integrate piezoresis-sensitive element, and customer required micro package. The size and dimension could be designed to meet customer’s special requirement. Superiorities are: micro-shape, strong output signal, high temperature excellent dynamic and static character, reliable stability.

Application

  • Air dynamics research
  • Aircraft and Engine experiment
  • Wind tunnel experiment
  • fluid mechanics and hydraulic experiment
  • Biomedical application
  • Petroleum exploration and exploitation and so on

Feature of Piezoresistive mems pressure sensor for medical applications



  • MEMS sensor chip
  • Micro-structure, small volume, light weight
  • Excellent long-term stability
  • Wide measurement range, up to 100MPa
  • Strong output signal and anti-jamming capability
  • Excellent static and dynamic performance



Dimensions in mm

High Temperature Precision Pressure Sensor 0 - 500m Range For Air Dynamics Research 0

High Temperature Precision Pressure Sensor 0 - 500m Range For Air Dynamics Research 1

High Temperature Precision Pressure Sensor 0 - 500m Range For Air Dynamics Research 2



Specification of Piezoresistive mems pressure sensor for medical applications



Spec. Value
Measurement Medium Non-corrosive liquids that can compatible with silicon, stainless steel, glass, insulation adhesive or gas.
Pressure range -100KPa~0~10KPa~1MPa~10MPa…100MPa
Accuracy ±0.2%F.S, ±0.5%F.S.
Power supply 0.5-2.0mA, 5-12VDC
Output signal About 100mV
Transmitter output Power: 24VDC(±15VDC), Output: 0-5VDC,4-20mA optional
Stability ±0.2%F.S/Year,
working temperature

-40~125℃

(High temperature with water-cooling structure can withstand 1200℃)

Response frequency 50-500KHZ
Insulation ≥500M Ω@100V
Overload pressure 200%FS
Rupture pressure 500%FS
Relative humidity 0%~95%
Electrical connection Fixed cable, Aviation plug
Pressure port M3, M4, M5, M6, M10 or others
Pressure type Gauge, Sealed gauge, Absolute gauge,
IP rating IP65



Ordering information

GXPS140- Pressure Type-Range Accuracy-Pressure port-Electric connection- Signal output-working temperature- Power supply



  • Pressure Type: Gauge, Sealed gauge, Absolute gauge,
  • Range: -100KPa~0~10KPa~1MPa~10MPa…100MPa
  • Accuracy: 0.2%= 0.2%F.S., 0.5%= 0.5%F.S.
  • Pressure port: M3, M4, M5, M6, M10 or others
  • Electric connection: Fixed cable, Aviation plug
  • Signal output: 4~20mA, 0~5V, 1~5V, 0.5~4.5V, 0~10V or others
  • working temperature: -10~70℃, -25~85℃, -30~125℃, -45~150℃, -10~175℃ or other
  • Power supply: 5V, 10V, 24V(9-32V)



High Temperature Precision Pressure Sensor 0 - 500m Range For Air Dynamics Research 3High Temperature Precision Pressure Sensor 0 - 500m Range For Air Dynamics Research 4High Temperature Precision Pressure Sensor 0 - 500m Range For Air Dynamics Research 5High Temperature Precision Pressure Sensor 0 - 500m Range For Air Dynamics Research 6

High Temperature Precision Pressure Sensor 0 - 500m Range For Air Dynamics Research 7High Temperature Precision Pressure Sensor 0 - 500m Range For Air Dynamics Research 8High Temperature Precision Pressure Sensor 0 - 500m Range For Air Dynamics Research 9
