| Place of Origin: | China (Mainland) |
| Brand Name: | Kacise |
| Certification: | ISO 9001-2008,GJB 9001B-2009,CE |
| Model Number: | KUS600B |
| Minimum Order Quantity: | 1pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | each unit has individual box and all boxes are packed in standard packages or customers requests available |
| Delivery Time: | 5-8 work days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram,paypal |
| Supply Ability: | 1000 Pieces per Week |
| Response Time: | ＜50ms | Beam Angle: | 7°±2 |
|---|---|---|---|
| Temp. Compensation: | Inside/outside/fix Temp. | Output: | RS485,0~5V/4-20mA |
| Detection Range: | 300mm~3000mm | Repeatability Precision: | ≤1% |
| Theory: | Ultrasonic Sensor | Type: | Waterproof |
| Material: | Engineering Plastics | Center Frequency: | 40khz +- 1khz,40.0±1.0KHz Ultrasonic Transducer |
| Product Name: | UA30CAD60NKTI M30 Ultrasonic Sensor With DC12-30V Sn350 - 6000mm NPN | Color: | White |
| Sensitivity: | 300-5000mm | Warranty: | 12 Months |
| Accuracy: | 0.1%FS; 0.2%FS; 0.5 %FS | Voltage: | DC 5V,5V/12-24v |
| Storage Temperature: | -40 - 80 C | Creep: | 1.0% F.S. |

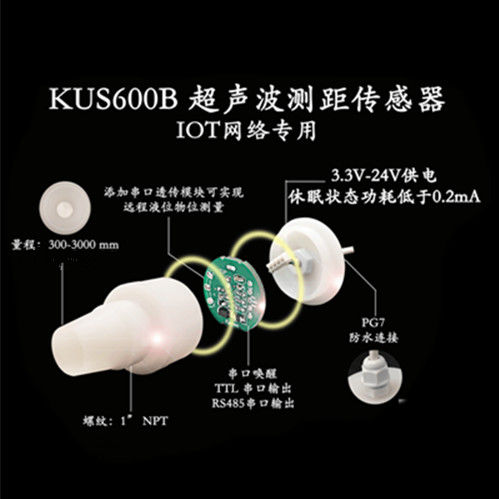

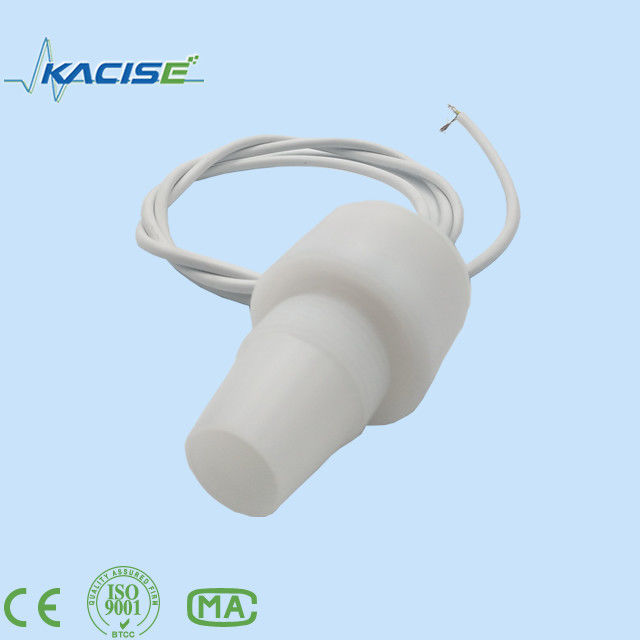

KUS600 Ultrasonic Transducer Sensor / Support hibernation state / PVDF apply to IOT area
1. Product Features:
2. Product Description
The KUS600B product has low power consumption, supports serial port wake-up, supports sleep state, and the power consumption in sleep state is as low as 0.2mA.This product is made of PVDF material, which increases the use effect of the product.The range is 300-- 3000mm, which greatly improves the working distance and provides users with convenience in application selection.At present, this product is widely used in petroleum, robot, filling liquid products measurement.
3. Dimensions
4. Parameters
| General Parameters | Mechanical Properties | ||
| Detection Range | 300mm~3000mm | Response Time | <50ms |
| Repeatability Precision | ≤1% | IP grade | IP68 |
| Temp. Compensation | inside/outside/fix temp. | ||
| Electrical Parameters | |||
| Working Voltage | 3.3V~24V | ||
| Power Consumption | ≤0.2mA | ||
| Circuit Protection | short-circuit protection, overload protection | ||
| Output | Digital Output | RS485 | |
| Analogue Output | 0~5V | ||
| Switch Output | 0V / 5V | ||
| Ambient Environment | |||
| Operating Ambient Temp. | 0~70℃ (-40~85℃, -55~125℃, etc, customizable) | ||
| Storage Temperature | -55~125℃ | ||
5. Application
6. Our Services
Xi'an Kacise is certified by ISO 9001-2008, GJB 9001B-2009, CE, intrinsic safety explosion-proof and isolated safety explosion-proof, etc. which assure our products are conform to the international standards.
We have been specializing in manufacturing pressure, level and flow measuring instruments and related products for 10 years. We have experienced technical and management personnel, through the efforts of our entire staff, we have become a professional measuring instrument manufacturer and solution provider. And we are continuously trying to improve product quality.
Currently, Kacise sensor is already exported to America, Spain, Australia, Chile and 20 other countries and regions, and received many favorable feedbacks. Our overseas distributers are also increasing. We regards “reasonable prices, efficient production time and good after-sales service” as our tenet, and hope to cooperate with more customers for mutual development.
