| Place of Origin: | China (Mainland) |
| Brand Name: | Kacise |
| Certification: | ISO9001:2008 |
| Model Number: | JGX-286-8 |
| Minimum Order Quantity: | 1ps |
|---|---|
| Price: | Negotiable |
| Packaging Details: | each unit has individual box and all boxes are packed in standard packages or customers requests available |
| Delivery Time: | 5-8 work day |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram,paypal |
| Supply Ability: | 10000 Pieces per Week |
| Type:: | Shock Absorber | Brand: | Kacise |
|---|---|---|---|
| Material:: | Aluminum And Stainless Steel | Feature:: | Durable |
| Certificate:: | ISO9001:2008 | Relative Product:: | Backdraft Damper |
| Usage:: | Industrial Machinery | Application:: | Marine And Industrial Engine |
| High Light: | 1.6mm Wire Vibration Isolator,Wire Shock Absorber,8 Loops Wire Shock Absorber |
||
Good seismic performance and corrosion resistance, easy installation of wire rope vibration isolator
1. Product Description

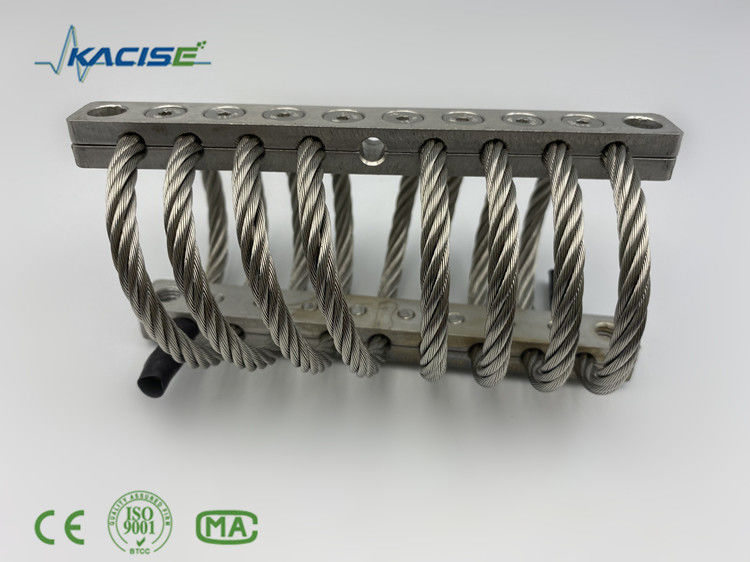

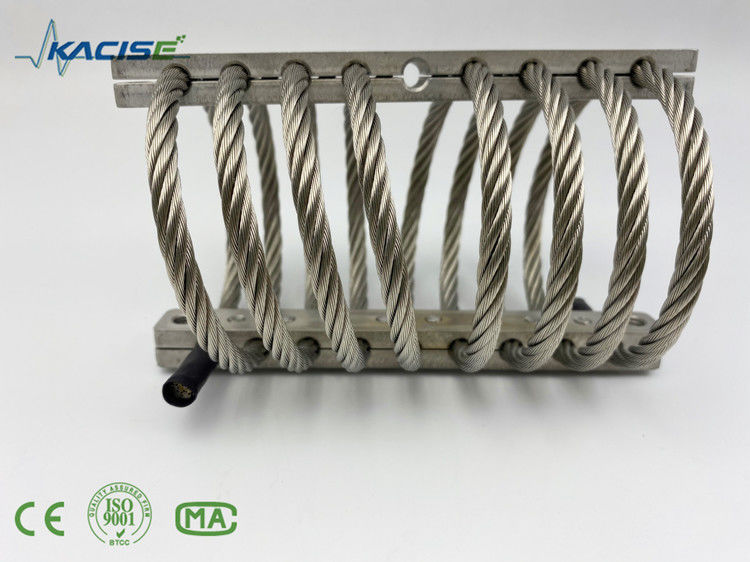

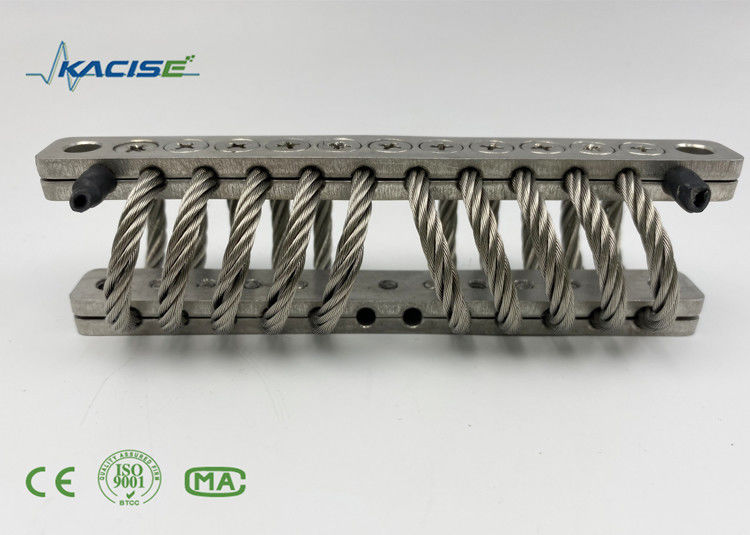

The vibration isolator of steel wire rope is made of a multi-strand stainless steel wire rope which is wound around the upper and lower two splints and then fixed. Its stiffness and damping depend on the diameter, number of strands, number of loops and winding mode and size of the wire rope.
Damping vibration system of wire rope is made up of vibration isolator when load function due to relative motion between multi-strand wire and friction, when the vibration and impact range is large enough, the vibration isolator occurs in friction between wire rope each stock, and with the steel wire rope movement in the opposite direction, to consume large amounts of energy, damping vibration and impact strength.When the vibration amplitude is small, the wire rope twist together due to friction, do not produce the relative sliding, which showed a good linear elastic, maintain the stability of the system, so the steel wire rope vibration isolator adapted to the working condition of vibration and shock situation was complex and changeable, the particularly strong adaptive capacity, can effectively avoid the strong resonance and shock, which have the effect of vibration isolation buffer.
2. Materials & Finishes Products
Wire rope cable, we have adopted the international standard 304 stainless steel, plywood material, there are three ordinary steel, 304 stainless steel and aluminum alloy 6061-T6 material. All surfaces are made of plywood surface treatment to ensure that meet the relevant industry standards and military standard requirements. Can choose to have surface hot galvanizing wire rope or surface coating material such as nylon, can effectively increase the performance of the product in harsh environments.
3. Details
Schematic Diagram
Technical Parameters
Wire Rope Diameter
016-Wire rope diameter is 1.6mm
024-Wire rope diameter is 2.4mm
032-Wire rope diameter is 3.2mm
048-Wire rope diameter is 4.8mm
064-Wire rope diameter is 6.4mm
095-Wire rope diameter is 9.5mm
127-Wire rope diameter is 12.7mm
159-Wire rope diameter is 15.9mm
222-Wire rope diameter is 22.2mm
286-Wire rope diameter is 28.6mm
318-Wire rope diameter is 31.8mm
Wire Rope Loop
0—10 Loops of Wire Rope
8 -- 8 Loops of Wire Rope
6 -- 6 Loops of Wire Rope
4. Model Number Ordering Code
Splint Model
Empty:The default of the carbon steel material
C1A:The surface of galvanized white
C2B:The surface of galvanized blue and white
C2C:The surface of galvanized color
C2D:The surface of galvanized army green
C2E:The surface of galvanized gold
A:304 stainless steel surface passivation
B:316 stainless steel surface passivation
L:Grey anodized 6061 - T6 aluminum alloy
P:6061 - T6 aluminum alloy surface hard
CXX:Customers customized procurement
5. Feature
6. Application Field
| Applications | Typical Equipment | Protection From | Operational Advantages |
| Shipboard | Electronics, Computers, Machinery |
Explosive blast, Inherent vibration, Storms |
Long life, Maintenance-free, Temperature extremes, Corrosion resistance, All axes protection |
| Rough Terrain Vehicles | Instrumentation, Generators, Electronics |
Rough terrain, Poor road conditions, Collision |
Long life, Maintenance-free, Temperature extremes, Ozone, Radioactivity, UV Radiation |
| Aircraft | Electronics, Computers | High-G maneuvering, Hard landings, Turbulent air |
Temperature and altitude extremes, Lightweight |
| Shipping Containers | Optics, Instruments, Missiles, Electronics |
Transit, Handling drop, Loading/Unloading |
Long life, Maintenance-free, Exposure to moisture, Repeated use |
| Industrial Equipment |
Centrifuge, Dryers, Pumps |
Unbalanced dynamic loads, Fluid hammer, Inherent vibration, Foundation weakness |
Long life, Maintenance-free, Corrosive environments |
| Ordnance Equipment |
Missile launchers, Tank artillery, Computer controls, Electronics |
Rough terrain, Railroad humping, Transit | Maintenance-free, Temperature extremes, Nearby blast |
| Medical Equipment |
Mechanical equipment necessary for patient care |
Vibration from moving parts, Mobile carts-Transport shock | Maintenance-free, No out gassing, Can be sterilized |
| Chimneys |
Chimneys, Scrubbers, Measuring devices |
Wind causing resonant frequencies, Stack gas causing turbulence near scrubber, etc. |
Maintenance-free, Temperature extremes, Corrosive environments |
