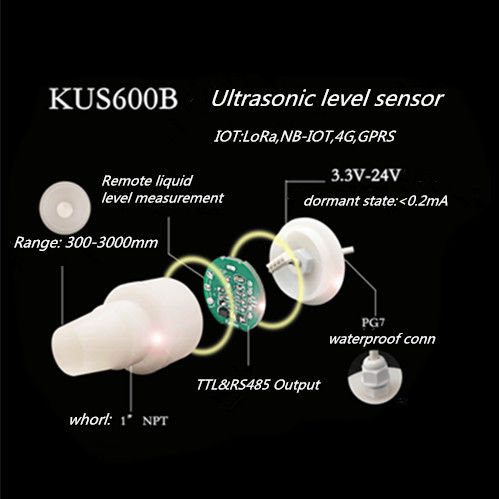

Waterproof RS485 300mm IOT Ultrasonic Transducer Sensor

KUS600B Low power consumption during sleep PVDF apply to IOT area Ultrasonic Transducer Sensor

1. Product Description

The KUS600B product has low power consumption, supports serial port wake-up, supports sleep state, and the power consumption in sleep state is as low as 0.2mA.This product is made of PVDF material, which increases the use effect of the product.This sensor provides very short to long-range detection and ranging, in a compact, robust PVDF/PTFE housing, designed to meet IP68.The output voltage is 3.3 V to 24V and sleep state power consumption is less than 0.2mA. Application range: 300-3000mm.With the following features:

1. A serial port connection: TTL&RS485
2. Support hibernation state
3. Factory Outlet
4. First-class r & D team
5. Professional product design
6. High quality after-sales service

2. Dimensions

3. Parameters

4. Description of Sensor Functions

Adjusting the analogue output.

The analogue output can be programed as the user want. Such as working at switch output or working at liner output all the parameters can be set by the RS485 interface.

There is 8 types of output functions can be programed.

All the setting routine as follows,

step 1 set one pointed distance by the RS485,

step 2 set another pointed distance by the RS485.

Step3 set the output type liner or switch, and set the related output options

Step4 reboot the sensor.

1. Window mode normally-open and liner mode positive slope output function.

2. Window mode normally-closed and liner mode negative slope output function.

3. Single switching point, normally-open function.

4. Single switching point, normally-closed function.

5. Single switch point with hysteresis gap normally-open function.

6. Single switch point with hysteresis gap normally-closed function.

7. Detection of object presence-normal open function.

8. Detection of object presence-closed open function.

Switching point, Setting distance only after power on. The internal clock can assure can't be changed after 5 minutes after power on. If want to change the switching point, the user can only setting the request distance after power restart.

For the RS485 output type.

There are 2 kinds of working style,

One for auto measure, the sensor will measure the distance or level repeatedly, and the measurement period can be set by the UART. The measure result can be fetched every time.

The other style is power save mode when the sensor is sleep, until the sensor received the inquiry command with pre-code. Communication protocol is Modus-RTU.

For example the measure result can be read by access the register 0x101 by Modbus protocol.

For more information please contact us for the software engineering guide.

5. Application

• Tank level measurement
• Bin level measurement
• Proximity zone detection
• People detection
• Robot ranging sensor
• Autonomous navigation
• Multi-sensors navigation
• Distance measuring
• Food level detection
•

6. Installation conditions

      If the sensor is installed at the environment temperature fall below 0℃,It should do well on the protective measures. In case of direct mounting of the sensor in a through hole using the steel nuts, it has to be fixed at the middle of the housing thread.
