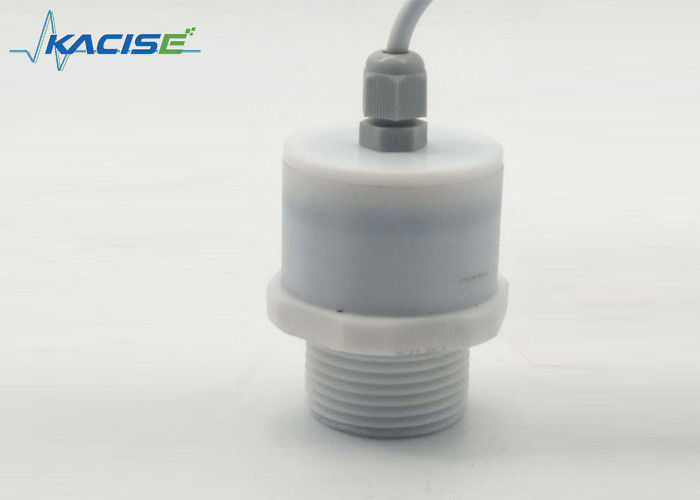

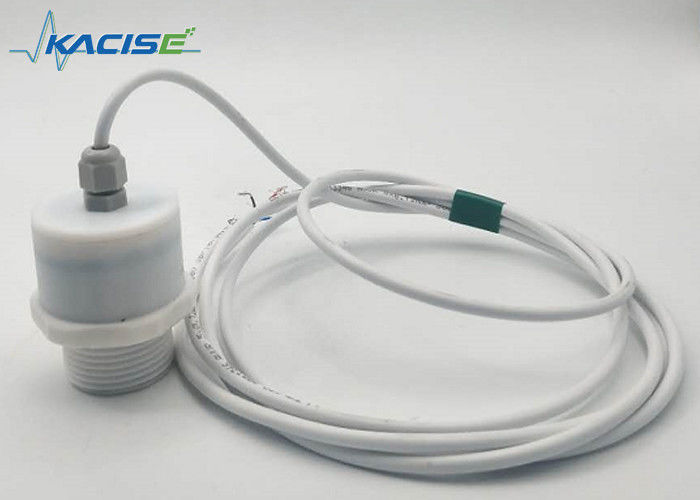

Anti Corrosion RS485 3m PVDF Ultrasonic Level Transmitter

Anti Corrosion RS485 3m PVDF Ultrasonic Level Transmitter

  • Anti Corrosion RS485 3m PVDF Ultrasonic Level Transmitter
  • Anti Corrosion RS485 3m PVDF Ultrasonic Level Transmitter
Anti Corrosion RS485 3m PVDF Ultrasonic Level Transmitter
Product Details:
Place of Origin: China (Mainland)
Brand Name: Kacise
Model Number: KUS series
Payment & Shipping Terms:
Minimum Order Quantity: 1pcs
Packaging Details: each unit has individual box and all boxes are packed in standard packages or customers requests available
Delivery Time: 5-8 work days
Payment Terms: T/T, Western Union, MoneyGram
Supply Ability: 1000 Pieces per Week
Contact Now
Detailed Product Description
Product: Ultrasonic Distance Sensor Detection Range: 300mm~3000mm
Operating Voltage: 13~30VDC Transducer Frequency: Approx. 100kHz
IP Grade: IP67 Output: RS485 + 4-20mA/0-10V
High Light:

PVDF Ultrasonic Level Transmitter

,

3m Ultrasonic Level Transmitter

,

RS485 Ultrasonic Transducer Sensor

KUS Series RS485 with 4-20mA or 0-10V output 3m range high accuracy PVDF anti-corrosion ultrasonic level transmitter

1. Features

  • High sensitivity.
  • Compact and robust structure.
  • IP68 high protection rating.
  • Corrosion resistant casing, suitable for corrosive medium and application


2. Parameter

General specifications



Model: KUS550
Measuring range

0.25m~3m (5m customizable)KUS550A

0.15m-0.6m(1m customizable)KUS550B;

Blind spot The dead zone of KUS550A is 0 ... 250 mm (within 250mm is unstable working zone, it is not recommended to work in this range); the dead zone of KUS550B is 0-150mm;
Supply voltage 3.3 ... 30 VDC, ripple 10 %SS
Working current ≤ 45 mA (fastest measurement speed), typical power consumption ≤ 10 mA;



Output signal

0-10V. 0-3V 0-5V /4-20mA/NPN/PNP/RS485 Analog output.
Measurement accuracy ≤1 %F.S.
Temperature compensation Yes
Ranging resolution 0.1mm;



Working conditions

Working temperature -40…85℃(233...358K)
Storage temperature -40…85℃(233...358K)

Other instructions

Electrical connection 5-core cable (analog output), 6-core cable (switch output);
Protection class IP67
shell material PVC /PVDF/PTFE/ABS

3. Dimensions

Anti Corrosion RS485 3m PVDF Ultrasonic Level Transmitter 0

4. Electronic interface and signals definition

Anti Corrosion RS485 3m PVDF Ultrasonic Level Transmitter 1


4. Description of Sensor Functions

Adjusting the analogue output.

The analogue output can be programed as the user want. Such as working at switch output or working at liner output all the parameters can be set by the RS485 interface.

There is 8 types of output functions can be programed.

All the setting routine as follows,

step 1 set one pointed distance by the RS485,

step 2 set another pointed distance by the RS485.

Step3 set the output type liner or switch, and set the related output options

Step4 reboot the sensor.

1. Window mode normally-open and liner mode positive slope output function.

2. Window mode normally-closed and liner mode negative slope output function.

3. Single switching point, normally-open function.

4. Single switching point, normally-closed function.

5. Single switch point with hysteresis gap normally-open function.

6. Single switch point with hysteresis gap normally-closed function.

7. Detection of object presence-normal open function.

8. Detection of object presence-closed open function.

Switching point, Setting distance only after power on. The internal clock can assure can't be changed after 5 minutes after power on. If want to change the switching point, the user can only setting the request distance after power restart.

For the RS485 output type.

There are 2 kinds of working style,

One for auto measure, the sensor will measure the distance or level repeatedly, and the measurement period can be set by the UART. The measure result can be fetched every time.

The other style is power save mode when the sensor is sleep, until the sensor received the inquiry command with pre-code. Communication protocol is Modus-RTU.

For example the measure result can be read by access the register 0x101 by Modbus protocol.

For more information please contact us for the software engineering guide.






5. Installation conditions
If the sensor is installed at the environment temperature fall below 0℃,It should do well on the protective measures. In case of direct mounting of the sensor in a through hole using the steel nuts, it has to be fixed at the middle of the housing thread.


Anti Corrosion RS485 3m PVDF Ultrasonic Level Transmitter 2
