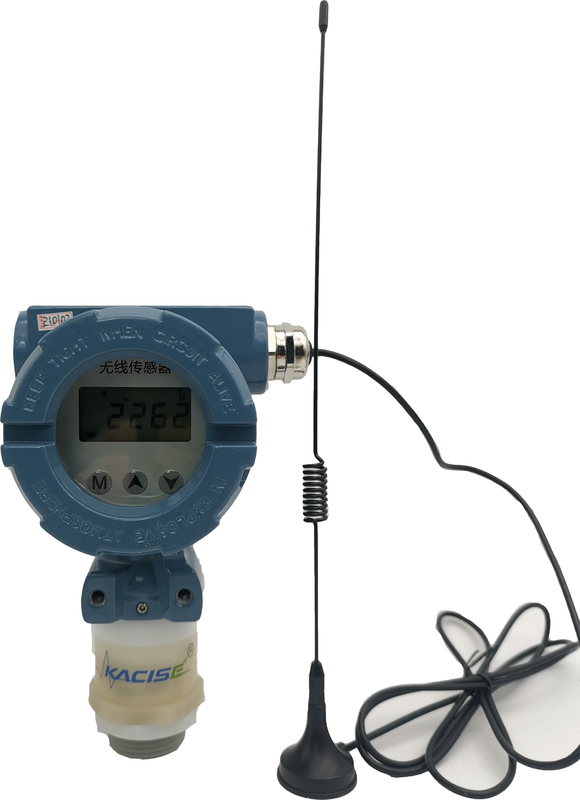

Intelligent Fluid Level Ultrasonic Transducer Sensor IP65 Waterproof

Intelligent Fluid Level Ultrasonic Transducer Sensor IP65 Waterproof

  • Intelligent Fluid Level Ultrasonic Transducer Sensor IP65 Waterproof
Intelligent Fluid Level Ultrasonic Transducer Sensor IP65 Waterproof
Product Details:
Place of Origin: China
Brand Name: Kacise
Certification: CE
Model Number: KUS650
Payment & Shipping Terms:
Minimum Order Quantity: 1 Piece
Price: Negotiable
Packaging Details: carton/wooden case, or customers requests
Delivery Time: 5-8 working days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram, Paypal
Supply Ability: 10000pcs/month
Contact Now
Detailed Product Description
Output: Digital Sensor Theory: Ultrasonic Sensor
Type: IP65 Waterproof Center Frequency: 25khz +- 1khz
Color: Blue And Black Application: Home Automation
High Light:

25khz Level Ultrasonic Transducer Sensor


IP65 Waterproof Ultrasonic Transducer Sensor


200Kbs Band Ultrasonic Transducer Sensor

Fluid Level Ultrasonic Transducer Sensor IP65 Waterproof



The KUS650 series intelligent wireless level/level sensor is an intelligent digital display product with high precision and high stability. Suitable for real-time measurement and display of liquid level/level. The product uses a dedicated wide temperature LIQUID crystal display, high stability sensor, and through precision digital temperature compensation and nonlinear correction technology carefully manufactured to ensure high precision and high stability of liquid level/level measurement. The built-in wireless module uses the network to provide users with wireless long-distance data transmission with low power consumption, and sends all status data of sensors to the cloud background management server in real time to realize alarm linkage and data statistical analysis with the smart cloud platform.



Parameter Description
Battery 2 DC3.6VDisposable lithium-ion batteries.
Wireless transmitting power <23 dBm
receive sensitivity <-135 dBm
Band width 200Kbs
Alarm transfer supported
LCD multi para-indicator -30℃~80℃,and support level, alarm, status indicator.
Key board 3-key for parameter setting
Process part material PEFE PVDF
Auto alarm report Support
Smart cloud platform support
level range 20-15000mm
accuracy 0.5%F.S or 5mm
Working environment temperature -10℃~70℃


Application field

• Fire water system.

• City water supply.

• Sewage treatment.

• Long distance heating supply.

• Food industry.

• power chemical or oil industry.
