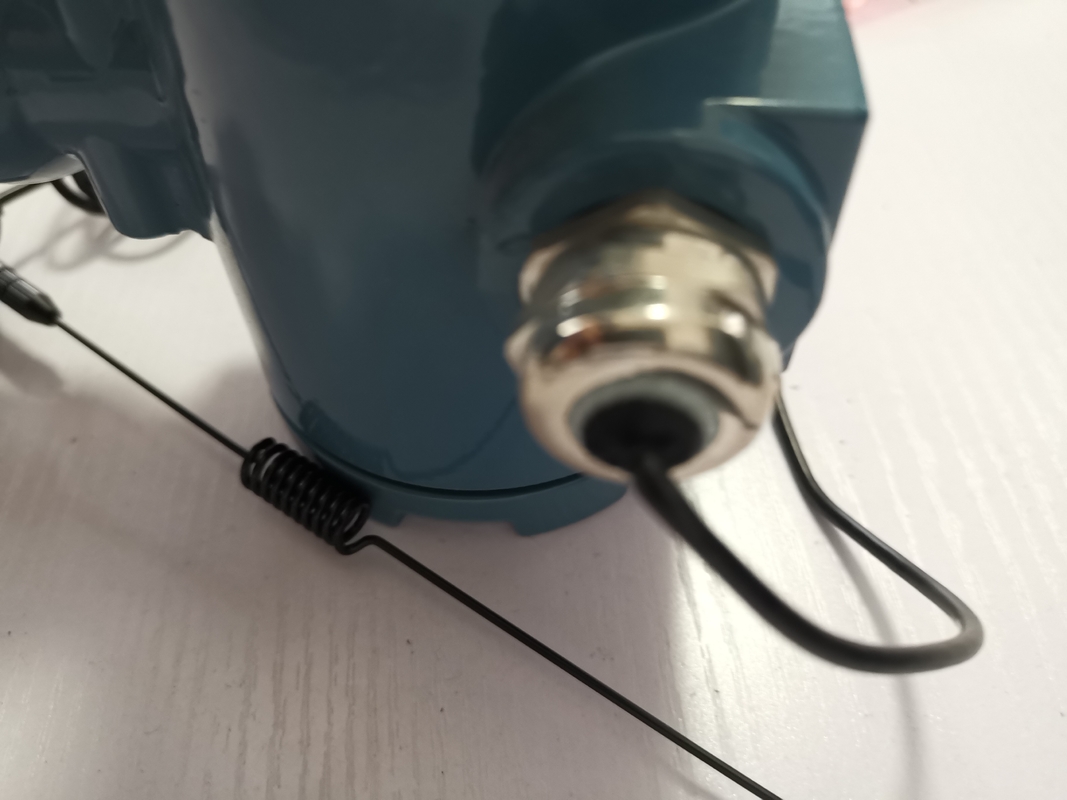

Outdoor Ultrasonic Liquid Level Transmitter 125KHZ For Autonomous Navigation

Outdoor Ultrasonic Liquid Level Transmitter 125KHZ For Autonomous Navigation

  • Outdoor Ultrasonic Liquid Level Transmitter 125KHZ For Autonomous Navigation
Outdoor Ultrasonic Liquid Level Transmitter 125KHZ For Autonomous Navigation
Product Details:
Place of Origin: China
Brand Name: Kacise
Certification: CE
Model Number: KUS650
Payment & Shipping Terms:
Minimum Order Quantity: 1 Piece
Price: Negotiable
Packaging Details: carton/wooden case, or customers requests
Delivery Time: 5-8 working days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram, Paypal
Supply Ability: 10000pcs/month
Contact Now
Detailed Product Description
Detection Range: 200mm~3000mm Transducer Frequency: 125KHZ
Beam Angle: 7°±2 Power Consumption: ≤30mA
IP Grade: IP65 Connection: 5 Pin Cable
Weight: 100g
High Light:

IP65 Ultrasonic Liquid Level Transmitter

,

Ultrasonic Liquid Level Transmitter 125KHZ

,

200mm Liquid Level Transmitter



KUS650 Ultrasonic Level Sensor



Introduction
This sensor provides very short to long-range detection and ranging, in a compact, robust PVC housing,
designed to meet IP65.



Features
. Designed for outdoor or indoor environments
. High sensitivity
. Free run operation can continually measure and output ranger information
. Sensor beam angle is 7 degrees.





Applications


. Tank level measurement
. Bin level measurement
. Proximity zone detection
. People detection
. Robot ranging sensor
. Autonomous navigation
. Multi-sensors navigation
. Distance measuring
. Long range object detection
. Industrial automation





Parameters

Enter
Measured variable Liquid level, material level
Maximum measuring range 20-15000mm(Can be customized according to needs)
Output
Comprehensive accuracy ±1%FS/ 0.15℃
Temperature compensation -10℃~70℃
Vibration influence < ± 0.05%/g,All directions500Hz (conform to IEC 68 -2-64)

Rated conditions

Environmental conditions

Ambient temperature -25~+85℃
Storage temperature -40~+85℃
Protection level IP65 ,conform to EN 60529
Electromagnetic Compatibility EN 61326/A2 appendix A (2001 )
Display and control
show SFTN LCD, white backlight, 5-digit display.
Limit value Free setting
parameter settings Use 3 buttons
unit mm, the default unit is m.
weight About 1.35kg
Non-liquid parts material
Connector 1NPT, stainless steel, length 20mm (materials and joint specifications can be customized according to customer requirements).
Electrical connections Make the waterproof connector and air hole cable entrance comply with EN 175301 -803A standard
Measurement period ≤ 100ms

Selection reminder: For special requirements, please contact our company and indicate in the order.

Precautions:

1. If you need to calibrate the meter, please contact our company. Non-professionals are not allowed to calibrate the meter.

2. When calibrating the meter, please turn on the meter first, and calibrate it after 1 hour of constant temperature.
